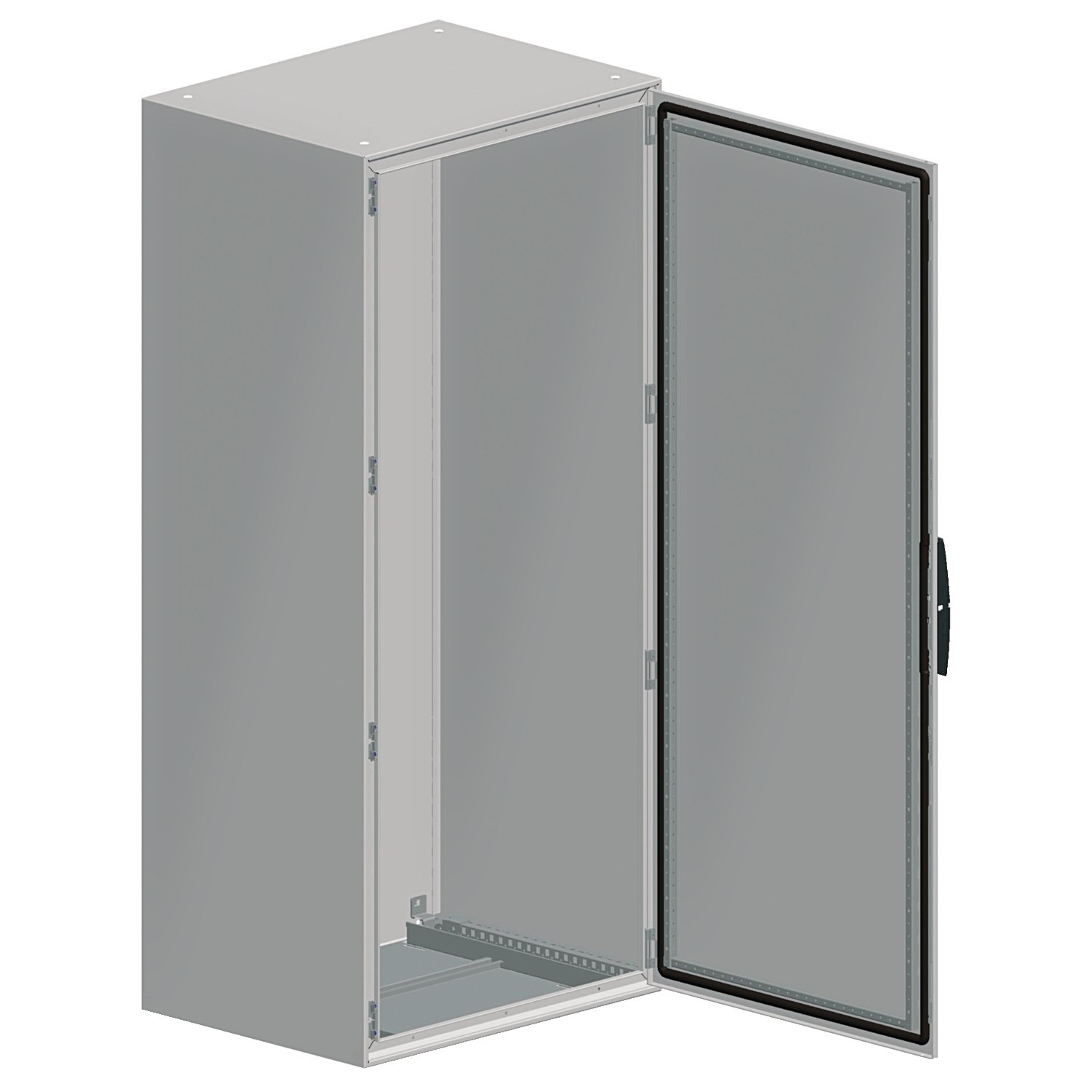

Schneider NSYSM14840 | PanelSeT SM compact enclosure without mounting plate – 1400x800x400 mm

Technical Specifications

• Product Reference: NSYSM14840

• Product Range: PanelSeT (Spacial SM)

• Enclosure Type: Compact, floor-standing steel enclosure

• Material: Galvanized steel

• Surface Finish: Epoxy-polyester powder coated

• Color: Light grey (RAL 7035)

• External Dimensions:

  • Height: 1400 mm

  • Width: 800 mm

  • Depth: 400 mm

• Door Type: Single front door with concealed hinges

• Locking System: 3-point locking with key-operated handle

• Mounting Plate: Not included (available separately)

• Ingress Protection Rating: IP55 (according to IEC 60529)

• Impact Resistance: IK10 (according to IEC 62262)

• Cable Entry: Bottom gland plate, removable for cable access

• Certifications and Standards: IEC 62208, IEC 60529, IEC 62262

Key Features

• Spacious internal volume allows installation of large or multiple devices including circuit breakers, PLCs, drives, and relays.

• IP55 ingress protection ensures the enclosure is sealed against dust and water jets, suitable for indoor and semi-industrial environments.

• IK10 mechanical strength provides maximum protection against external impacts, enhancing the durability of the enclosure.

• No mounting plate included, enabling custom installations with optional or pre-drilled back panels or mounting frames.

• 3-point locking system provides secure access control and tight door sealing to protect internal components.

• Modular and flexible design compatible with a wide range of Schneider Electric accessories including mounting plates, inner doors, ventilation kits, and more.

• Easy cable management with removable bottom gland plate for convenient routing and installation.

Applications

The NSYSM14840 is suitable for a wide range of applications where high durability, protection, and flexibility are required, including:

• Industrial automation systems

• Electrical power distribution panels

• HVAC and BMS control cabinets

• Factory and process control systems

• Renewable energy systems

• Data and telecom installations

• Commercial building electrical infrastructure
