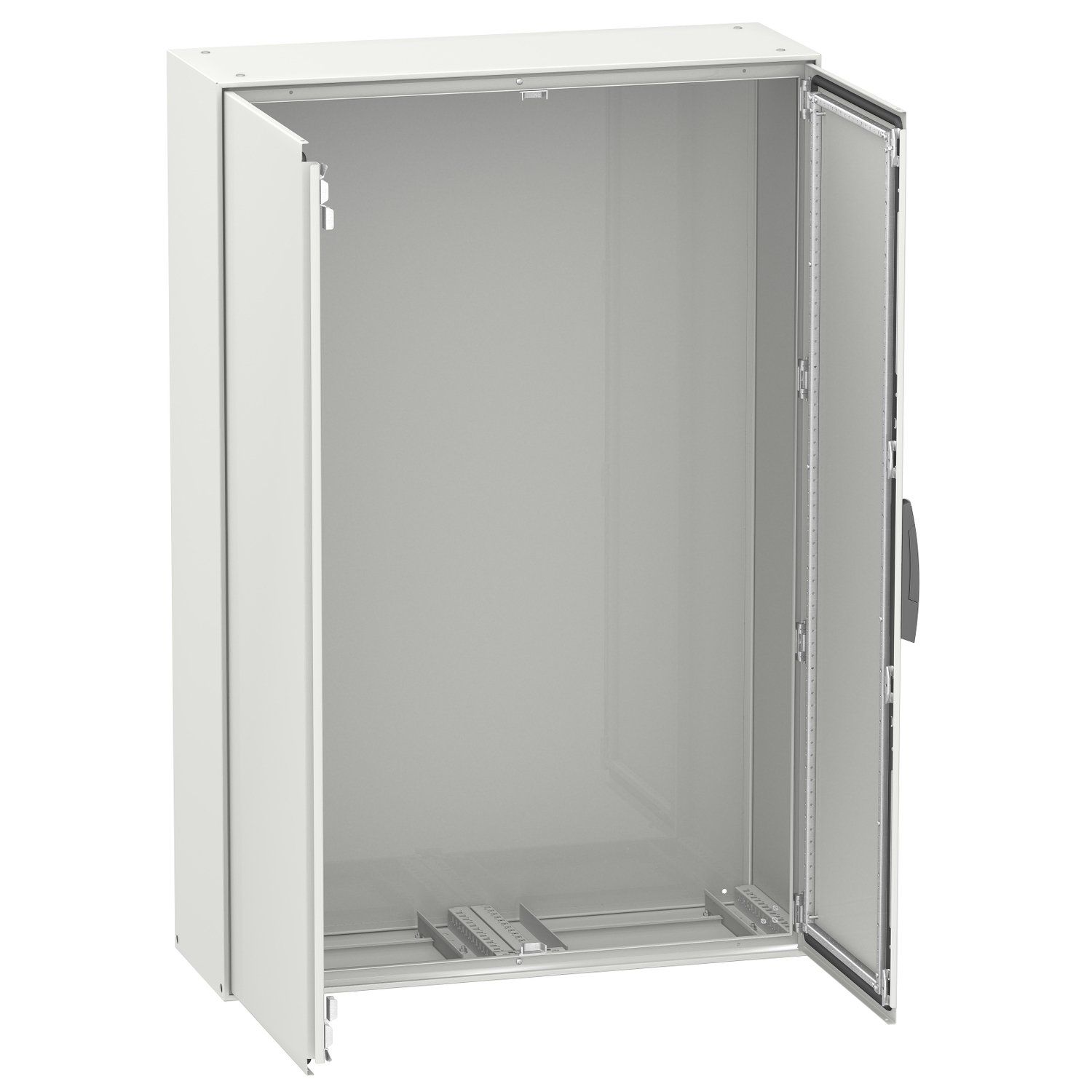

Schneider NSYSM1610402D | Spacial SM compact enclosure without mounting plate – 1600x1000x400 mm

Technical Specifications

• Product Reference: NSYSM1610402D

• Series: Spacial SM

• Enclosure Type: Compact floor-standing, double-door

• Material: Galvanized steel

• Surface Finish: Epoxy-polyester powder coated

• Color: Light grey (RAL 7035)

• External Dimensions:

  • Height: 1600 mm

  • Width: 1000 mm

  • Depth: 400 mm

• Door Type: Two front doors with concealed hinges

• Locking Mechanism: 3-point locking system with key-operated handle

• Mounting Plate: Not included (optional and sold separately)

• Ingress Protection Rating: IP55 (conforming to IEC 60529)

• Mechanical Impact Resistance: IK10 (according to IEC 62262)

• Cable Access: Removable gland plate at the bottom

• Standards Compliance: IEC 62208, IEC 60529, IEC 62262

Key Features

• Double-door design provides wide access to internal components, ideal for complex wiring and large-scale setups.

• High ingress protection (IP55) ensures resistance to dust and water jets, making it suitable for indoor and semi-industrial environments.

• Excellent mechanical durability (IK10) offers protection from external impacts, maintaining the safety of internal equipment.

• No mounting plate included, giving the user full flexibility to implement custom configurations with optional accessories.

• 3-point locking system ensures secure closure and a tight seal, preventing unauthorized access and environmental ingress.

• Durable steel construction with powder coating for corrosion resistance and long-term reliability.

• Optimized cable management via removable gland plate, allowing for clean and efficient cable entry and routing.

Applications

The NSYSM1610402D is designed for a wide range of professional applications, including:

• Industrial control systems

• Electrical distribution panels

• Power management systems

• Factory automation and PLC enclosures

• HVAC and building services control

• Renewable energy and grid interface cabinets

• Telecommunications and networking installations
