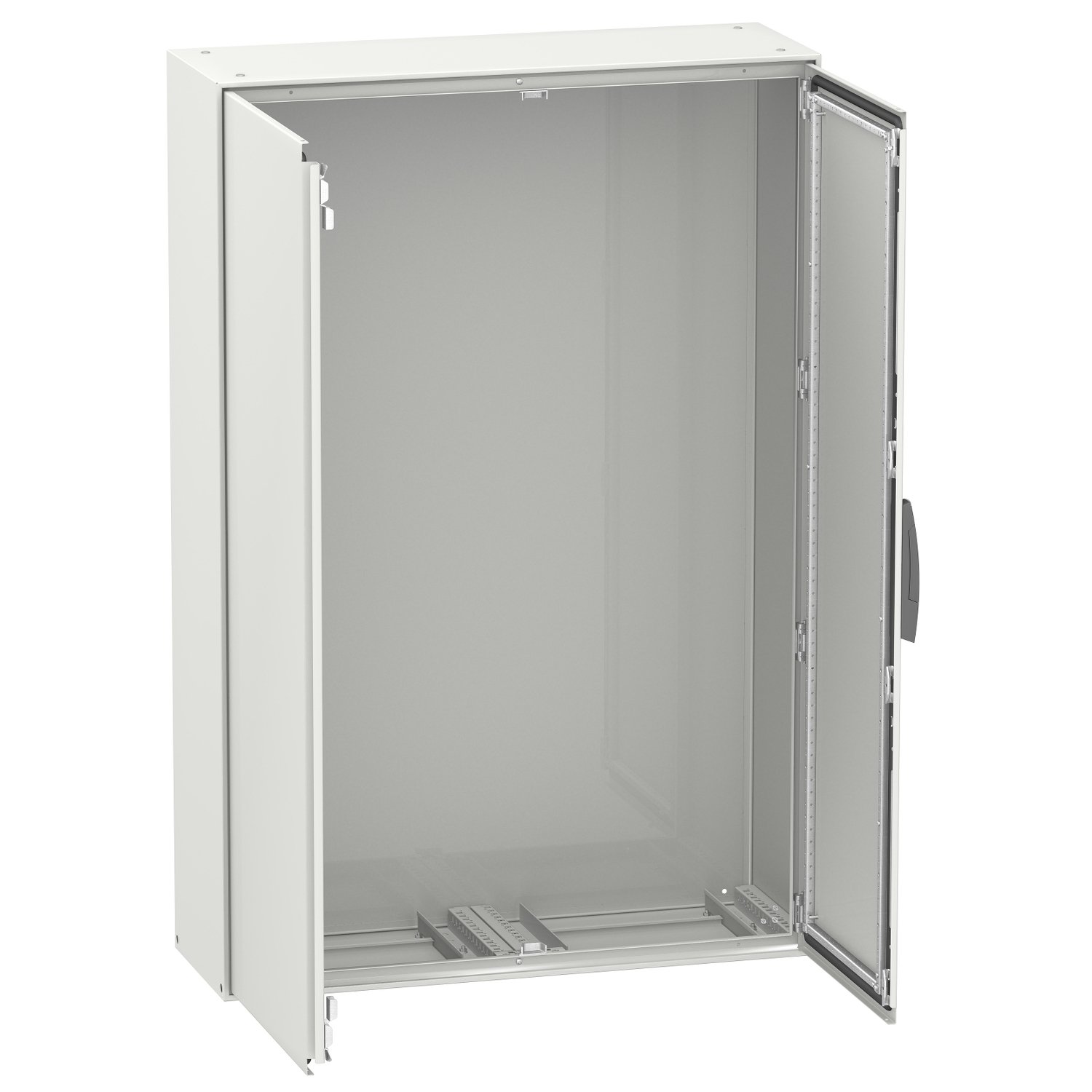

Technical Specifications SYSM2012602D

• Model: NSYSM2012602D

• Series: PanelSeT SM

• Type: Floor-standing compact enclosure without mounting plate

• External Dimensions:

  • Height: 2000 mm

  • Width: 1200 mm

  • Depth: 600 mm

• Material: Galvanized sheet steel

• Surface Finish: Epoxy-polyester powder coated

• Color: Light grey (RAL 7035)

• Door: Plain steel door, full height, reversible, with concealed hinges

• Locking System: 3-point locking system with standard handle

• Mounting Plate: Not included (must be ordered separately)

• Ingress Protection Rating: IP55 (protection against dust and water jets)

• Impact Resistance Rating: IK10 (resistance to mechanical impact)

• Mounting Type: Floor-standing with plinth/base options

• Operating Temperature: -25°C to +60°C

• Standards Compliance: IEC 62208, IEC 60529, RoHS, REACH

• Approximate Weight: ~150–160 kg (may vary based on configuration and accessories)

Key Features:

• High Protection (IP55): Offers strong sealing against dust ingress and water jets – ideal for industrial environments

• Heavy-Duty Construction: Built from galvanized steel with powder coating for long-lasting performance

• Spacious Internal Volume: The 1200 mm width and 600 mm depth provide excellent capacity for complex installations

• No Mounting Plate Supplied: Allows for flexible, customized internal configuration depending on project needs

• Reversible Full-Height Door: Enhances flexibility in tight installation spaces

• Secure Locking: Three-point system ensures high security and safe operation

• Compatible with Accessories: Supports wide range of Schneider accessories like mounting rails, cable ducts, lighting, and ventilation

• Modular Integration: Can be bayed side-by-side with other SM enclosures for expanded systems

Typical Applications:

• Industrial Automation Panels: Suitable for housing PLCs, relays, HMIs, power supplies, and drives

• Power Distribution Boards: Accommodates MCCBs, contactors, and load-break switches

• Large Control Cabinets: Ideal for projects with dense cabling and component layouts

• Renewable Energy Systems: Used for inverter controls, monitoring, and protection systems

• IT and Communication Infrastructure: Protects network switches, patch panels, and UPS components in industrial zones

• Transportation & Infrastructure Projects: Deployed in water treatment, substations, or transit systems

• Custom Engineering Panels: Perfect for large-scale or multi-function electrical cabinets
