Schneider NU301654 | USB charger, New Unica, 1 module, type A+C, 12W, anthracite

Description

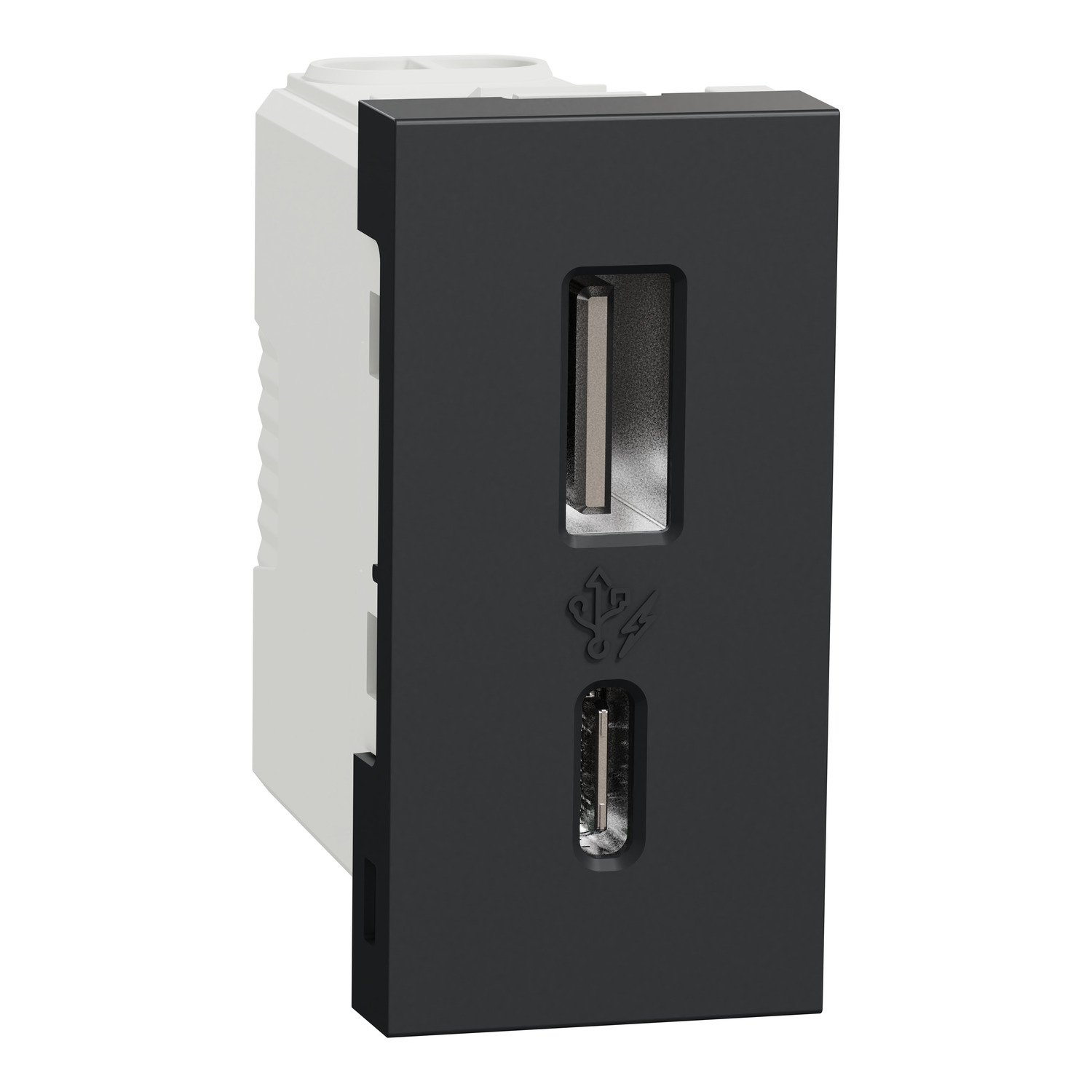

The Schneider NU301654 is a flush‑mounted, one‑module USB charger from the New Unica range. It comes in anthracite colour, with a matte powder‑coated finish, blending into modern interiors while providing USB‑A and USB‑C ports in a single unit.

Specifications

Power input: 100‑240 V AC, 50‑60 Hz

Output power: 12 W total

USB ports:
  • USB‑C: 5 V DC, max 2.4 A
  • USB‑A: 5 V DC, max 1 A

Dimensions: approx. 45 mm high × 22.5 mm wide × 39 mm deep

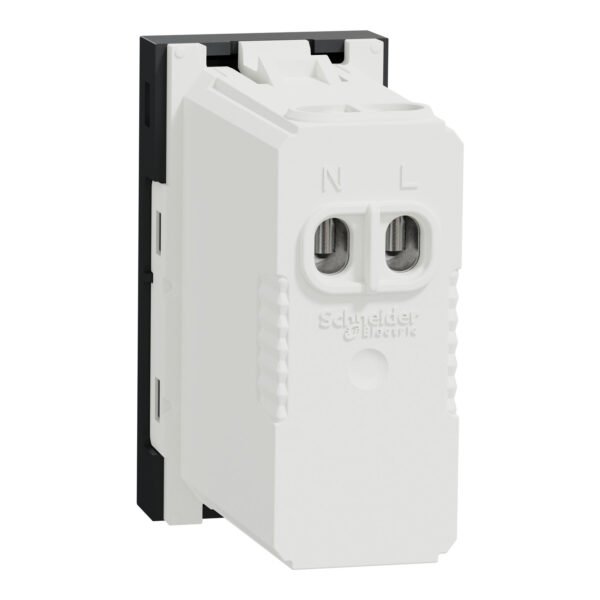

Mounting / module: 1 module, flush‑mount installation, with 2 screw‑terminals for connection.

Protection / durability:
  • Overheat / overcurrent / short‑circuit protection
  • Rated for >10,000 plugging cycles (USB mating cycles)

Environmental & safety ratings:
  • IP20 (protection against solid objects >12 mm, no water protection)
  • IK04 impact protection rating

Operating temperature: 0 °C to 40 °C

Product lifespan: approx. 30,000 hours at 25 °C at full output power

Features & Advantages

Dual‑USB ports (A + C) allow charging various devices: smartphones, earbuds, headsets etc.

USB‑C gives higher current (2.4 A) so faster charging for compatible devices.

Robust safety protections reduce risk of overheating, short circuits, or excessive current.

Durable design (many mating cycles) ensures long usable life.

Clean, modern finish and compact size make it suited for visible wall installations.

Use‐Cases

In homes: installed instead of a standard socket module to add USB charging options in living rooms, bedrooms, kitchens.

In offices: convenient spot to charge phones, tablets, small devices without needing external chargers.

In renovation or new‑build electrical installations where built‑in USB charging is preferred.

Anywhere aesthetics matter and modular design must match existing Unica frames.
