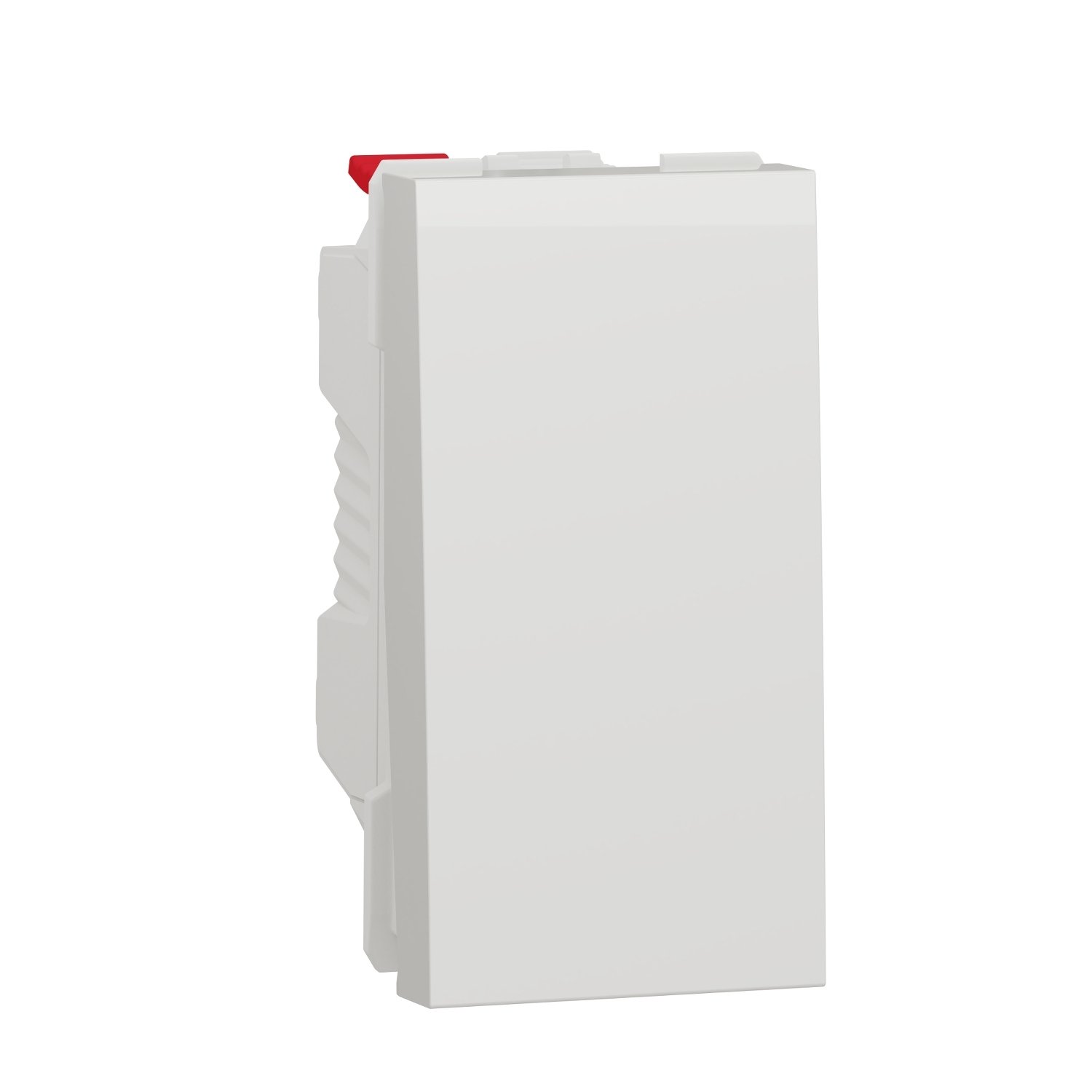

Schneider NU310118 | Switch, New Unica, 1-pole 1-way, 10AX, 1 module, screwless terminals, untreated, IP4X, white
Schneider NU310118 | Switch, New Unica, 1-pole 1-way, 10AX, 1 module, screwless terminals, untreated, IP4X, white
Original price was: EGP 1,227.00.EGP 1,007.00Current price is: EGP 1,007.00.
Description
Schneider NU310118 | Switch, New Unica, 1-pole 1-way, 10AX, 1 module, screwless terminals, untreated, IP4X, white
Schneider NU310118: A Comprehensive Guide
Introduction
In today’s electrical landscape, efficiency and reliability are paramount. it is a component that embodies these qualities. This guide explores its features, applications, and benefits, providing a thorough understanding of this essential product.
What is the Schneider NU310118?
it is a high-performance electrical component designed for various applications in electrical distribution, industrial automation, and energy management. Its specifications and key features make it a preferred choice for many industries.
- Definition and Specifications: it is an advanced device used for managing and distributing electrical power efficiently.
- Key Features: It includes robust performance, advanced safety features, and a versatile design that suits numerous applications.
Applications of Schneider NU310118
it is highly versatile and can be used in several critical areas:
- Electrical Distribution: Ensures effective and reliable distribution of electrical power.
- Industrial Automation: Enhances automation processes, contributing to higher efficiency and productivity.
- Energy Management: Aids in efficient energy management, reducing wastage and improving overall energy usage.
Key Features of Schneider NU310118
This component is known for several key features:
- High Performance: Delivers exceptional performance under various conditions.
- Advanced Safety Features: Equipped with features to ensure safety and prevent electrical hazards.
- Versatile Design: Suitable for a wide range of applications, making it a flexible solution for different needs.
Technical Specifications
Understanding the technical details is crucial for optimal use:
- Electrical Specifications:
- Rated operational voltage: 400V
- Current rating: 100A
- Mechanical Specifications:
- Contact configuration: 3NO + 1NC
- Mechanical life: 10 million operations
- Environmental Specifications:
- Protection rating: IP65
- Operating temperature: -25°C to 60°C
Installation and Setup
Proper installation ensures it operates efficiently:
- Preparation Steps: Verify compatibility with your system’s voltage and current ratings.
- Step-by-Step Installation Guide:
- Turn off the main power supply.
- Mount the device securely on a DIN rail or appropriate surface.
- Connect the input and output wires according to the installation diagram.
- Ensure all connections are tight and secure.
- Restore power and test the installation for proper functionality.
Advantages of Using Schneider NU310118
Choosing it brings several benefits:
- Efficiency and Reliability: Improves system efficiency and ensures reliable operation.
- Cost-Effectiveness: Reduces maintenance costs and provides long-term savings.
- Durability: Built to withstand challenging conditions, ensuring longevity.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | New Unica |
|---|---|
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Colour tint | White (RAL 9003) |
| Type of packing | Flow-pack |
| Rated current | 10 AX |
|---|---|
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 20000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Connections - terminals | Screwless terminals |
| Cable cross section | 0…2.5 mm² rigid cable 0…2.5 mm² flexible cable |
| Material | Thermoplastic ABS-UV stabilised: mechanism rocker PC (polycarbonate) GF10 FR: casing CuZn37: terminals PBT (polybutylene terephthalate) GF30: release button |
| Marking | Without marking |
| Surface finish | Glossy |
| specific treatment - integrated within the material | Untreated |
| Fixing mode | Clip-in |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 34.25 mm |
| Embedding depth | 21.15 mm |
| Net weight | 0.0147 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| Standards | EN 60669-1 LV directive EMC directive |
| Product certifications | AENOR NF VDE EAC CE |
| Resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
| IP degree of protection | IP4X |
|---|---|
| IK degree of protection | IK04 |
| Environmental characteristic | Oil UV resistant Acetone Liquid soap Window-cleaning fluid Petrol Alcohol Bleach |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.3 cm |
| Package 1 Width | 3.5 cm |
| Package 1 Length | 4.5 cm |
| Package 1 Weight | 15 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 8.2 cm |
| Package 2 Width | 17.7 cm |
| Package 2 Length | 18.5 cm |
| Package 2 Weight | 384 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 400 |
| Package 3 Height | 30 cm |
| Package 3 Width | 40 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 8.446 kg |
