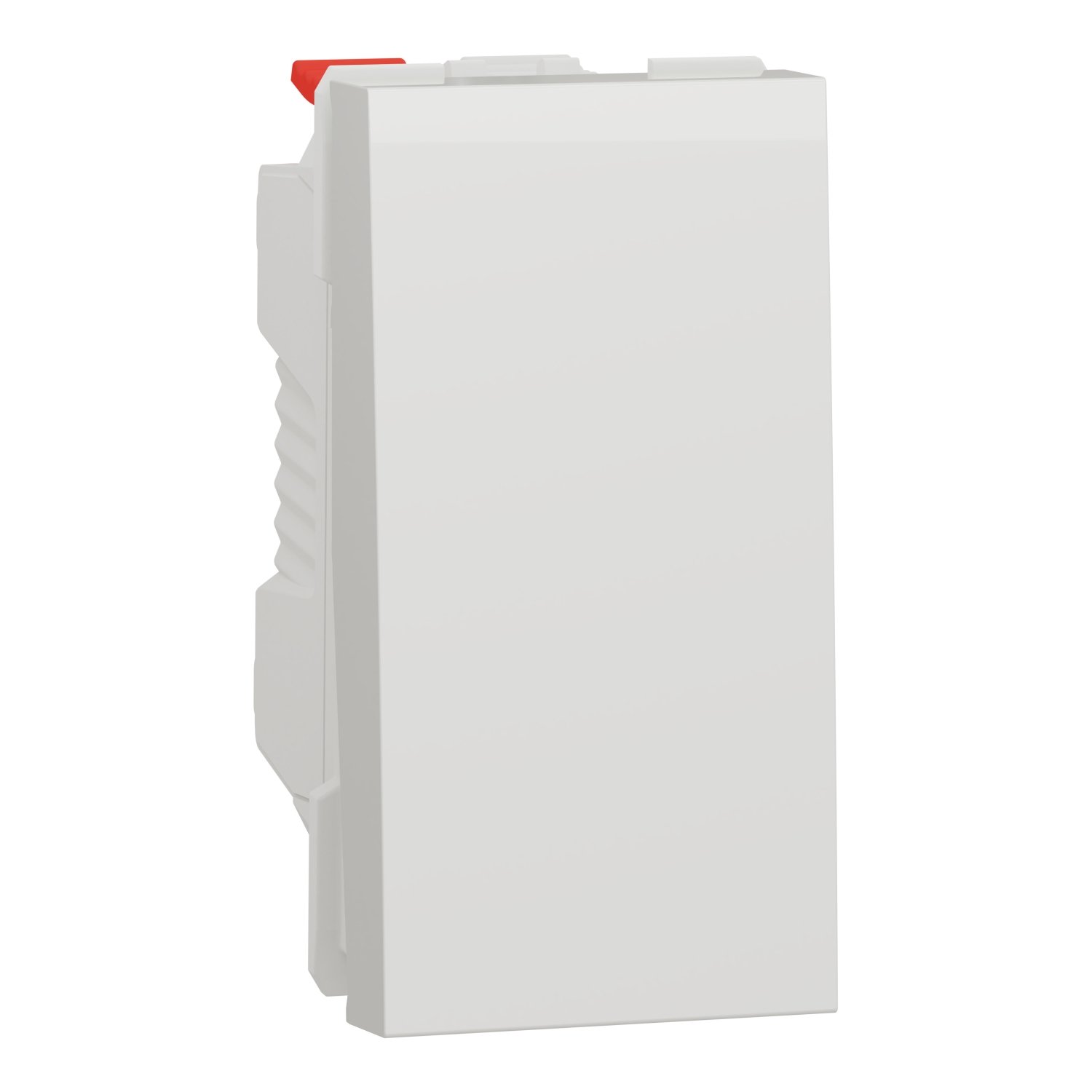

Schneider NU310318 | Switch, New Unica, 1-pole 2-way, 10AX, 1 module, screwless terminals, untreated, IP4X, white

Technical Specifications

• Brand: Schneider Electric

• Range: New Unica

• Model Number: NU310318

• Device Type: Light switch mechanism

• Function: 1-pole, 2-way (SPDT)

• Current Rating: 10AX

• Voltage: 250 V AC

• Module Size: 1 module

• Connection Terminals: Screwless (push-in terminals)

• Material: Halogen-free thermoplastic

• Color: White (RAL 9003)

• Finish: Untreated

• Mounting Type: Flush-mounted (requires New Unica support frame and plate)

• Protection Rating: IP4X (protected against solid objects >1mm)

• Standards Compliance:

  • IEC 60669-1

  • CE, RoHS compliant

• Operating Temperature: -5°C to +40°C

. Key Features

• 1-pole, 2-way switching – suitable for use in circuits with two switches controlling the same light

• 10AX rating – supports resistive and inductive loads (e.g. LED, fluorescent, or incandescent)

• Screwless terminals – faster, safer, and tool-free wire connections

• Compact 1-module design – allows efficient use of space in modular frames

• Modern white finish – matches the rest of the New Unica line

• IP4X protection – offers improved safety in indoor applications

• Click-action mechanism – ensures tactile feedback and reliable switching

. Typical Applications

• Residential lighting circuits

• Two-way switch configurations (e.g., hallways, staircases, or large rooms)

• Commercial spaces such as offices, hotels, or educational institutions

• Retrofit or new installations using modular wiring systems

• Designer or custom electrical panels using New Unica modules
