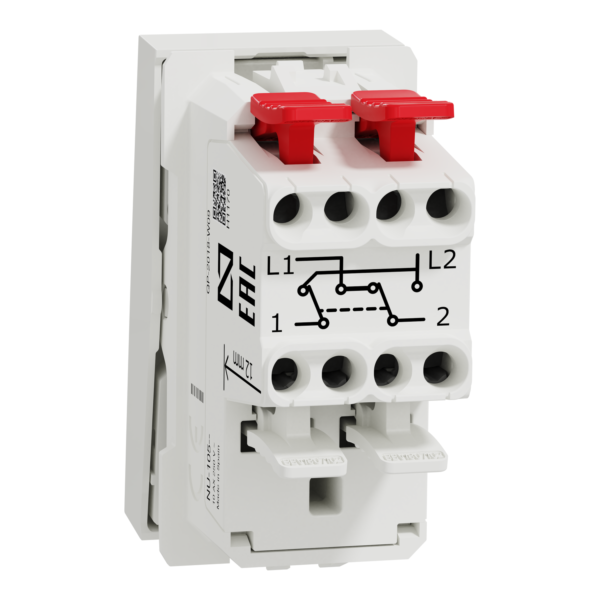

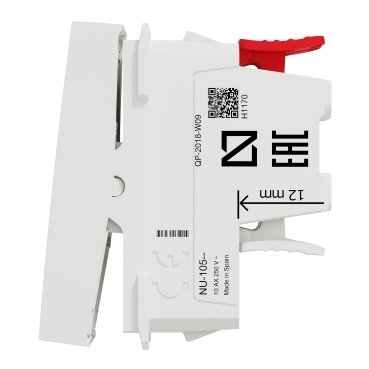

Schneider NU310518 | Switch, New Unica, intermediate, 10AX, 1 module
-
Schneider Electric NU310518
-
New Unica intermediate switch 10AX
-
1-module intermediate switch white
-
Schneider Unica 10AX screwless terminal switch
-
Modular light control switch multi-location
Original price was: EGP 4,761.00.EGP 3,906.00Current price is: EGP 3,906.00.
Description
Schneider NU310518 | Switch, New Unica, intermediate, 10AX, 1 module, screwless terminals, untreated, IP4X, white
Schneider Electric NU310518 – New Unica Intermediate Switch 10AX, 1-Module, White
Screwless terminals for added convenience
Offers IP4X degree of protection
Simple and quick installation
Well-crafted designs to complement your space
Part of a modular range with a universal format to suit most installation types
Discover the Schneider Electric NU310518 intermediate switch from the New Unica series—10 AX rating, 1-module, screwless terminals, IP4X protection, white finish.
Functionality & Compatibility: This is an intermediate (“cross-switch”) mechanism designed for installations where light or load control is needed from multiple locations (for example stairwells or long corridors). It is a 1-module device with a rated current of 10 AX and nominal voltage of 250 V AC.
Design & Finish: The switch comes in a crisp white colour (RAL 9003) with a glossy surface finish, suitable for modern interiors.
Terminals & Installation: Features screw-less (spring clamp) terminals for faster and safer wiring. Clip-in mounting makes installation convenient and efficient.
Protection & Durability: Offers IP4X protection (protection against solid objects >1 mm) and IK04 impact resistance for added robustness.
Materials & Environmental Standards: Constructed with high-quality thermoplastic materials (ABS-UV stabilized, polycarbonate, etc.). Certified under Green Premium labels and compliant with CE, NF, EAC standards. Mercury-free and heavy-metal-free
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | New Unica |
|---|---|
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | Intermediate |
| Number of rocker | 1 |
| Device application | Light control |
| Colour tint | White (RAL 9003) |
| Type of packing | Flow-pack |
| Rated current | 10 AX |
|---|---|
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 20000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Connections - terminals | Screwless terminals |
| Cable cross section | 0…2.5 mm² rigid cable 0…2.5 mm² flexible cable |
| Material | CuZn5 Ag: fixed terminals CuZn15: mobile contact PBT (polybutylene terephthalate) GF31: release button Thermoplastic ABS-UV stabilised: mechanism rocker PC (polycarbonate) GF10 FR: casing |
| Marking | Without marking |
| Surface finish | Glossy |
| specific treatment - integrated within the material | Untreated |
| fixing mode | Clip-in |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 37.75 mm |
| Embedding depth | 24.65 mm |
| Net weight | 0.0192 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| Standards | EN 60669-1 LV directive EMC directive |
| Product certifications | AENOR NF VDE EAC CE |
| resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
| IP degree of protection | IP4X |
|---|---|
| IK degree of protection | IK04 |
| Environmental characteristic | Oil UV resistant Acetone Liquid soap Window-cleaning fluid Petrol Alcohol Bleach |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.300 cm |
| Package 1 Width | 3.800 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 21.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 18.500 cm |
| Package 2 Length | 18.500 cm |
| Package 2 Weight | 505.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.479 kg |
