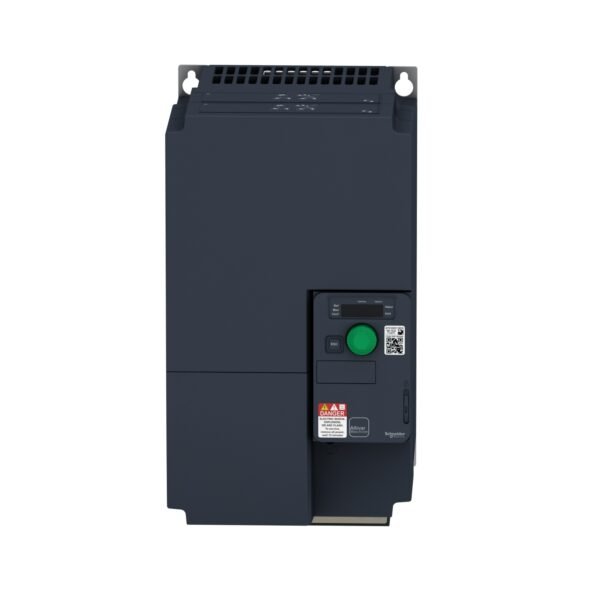

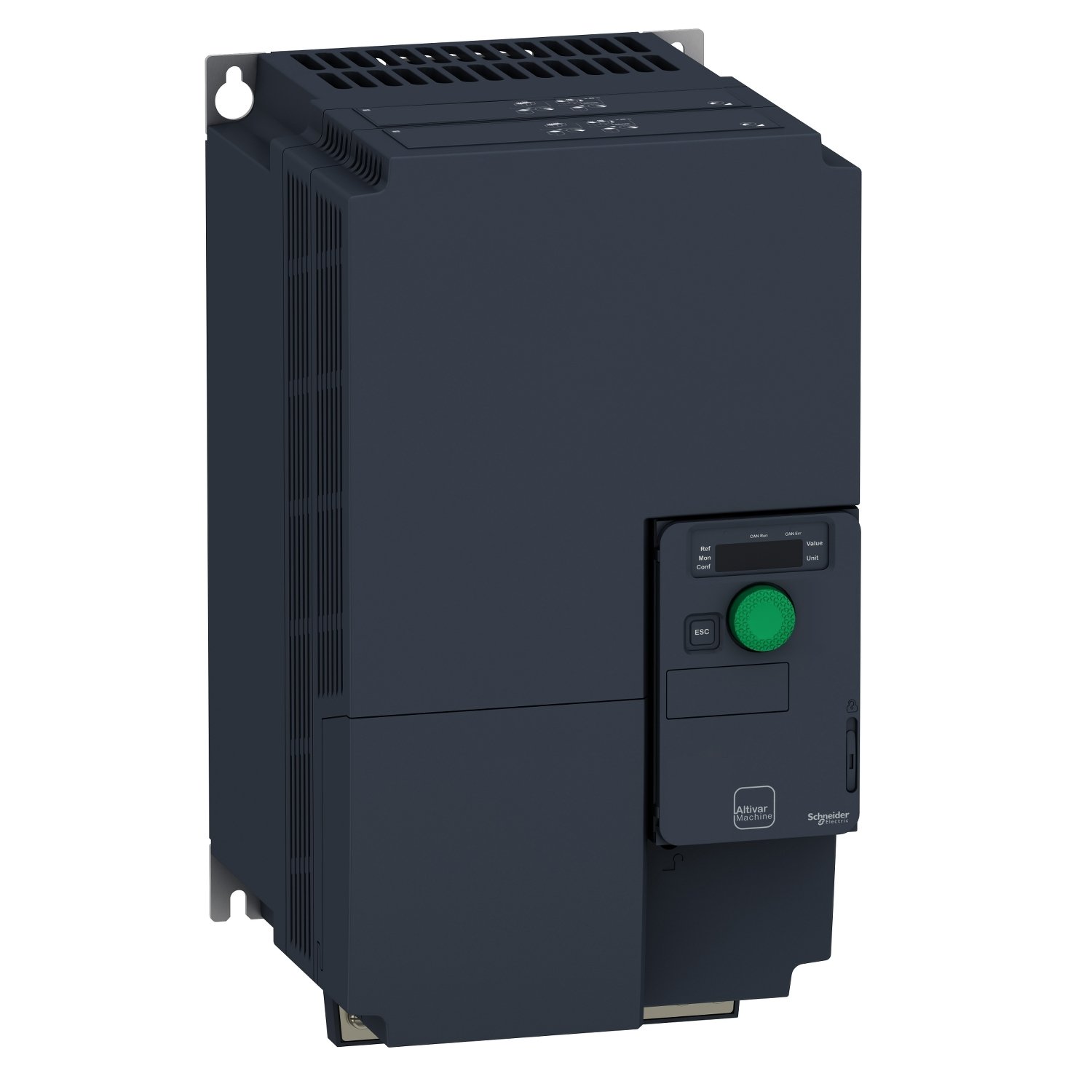

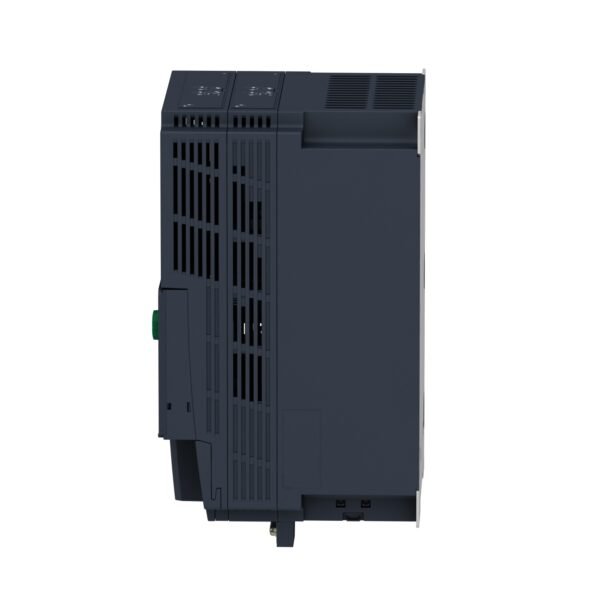

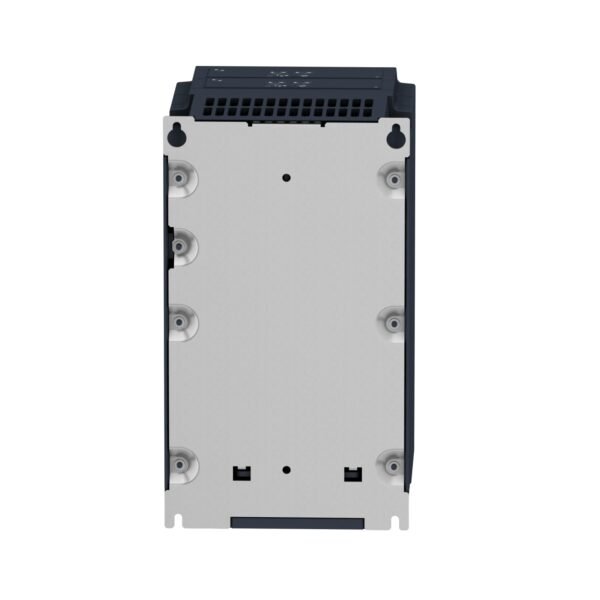

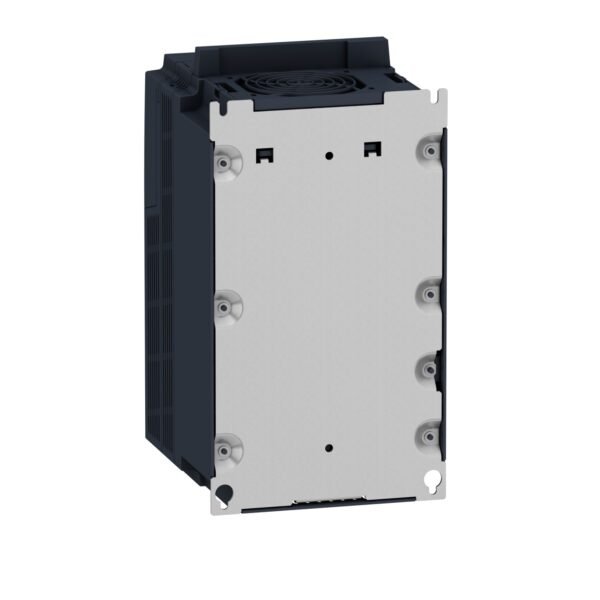

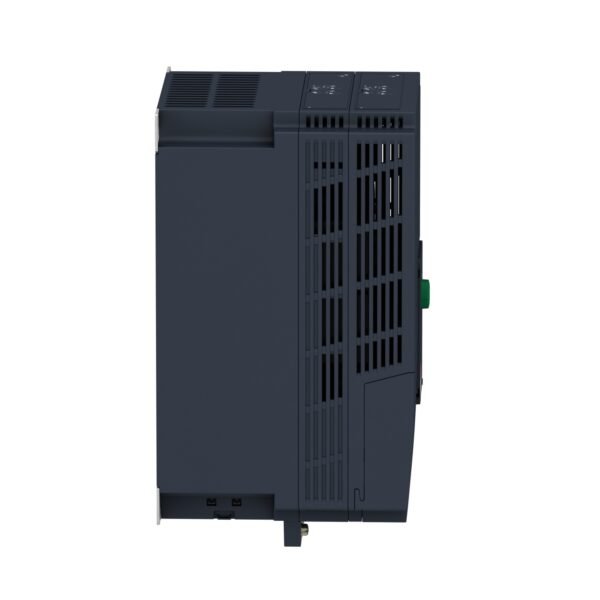

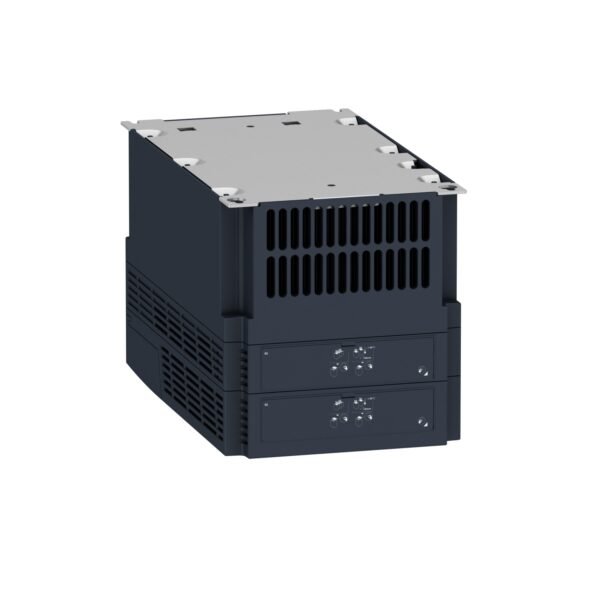

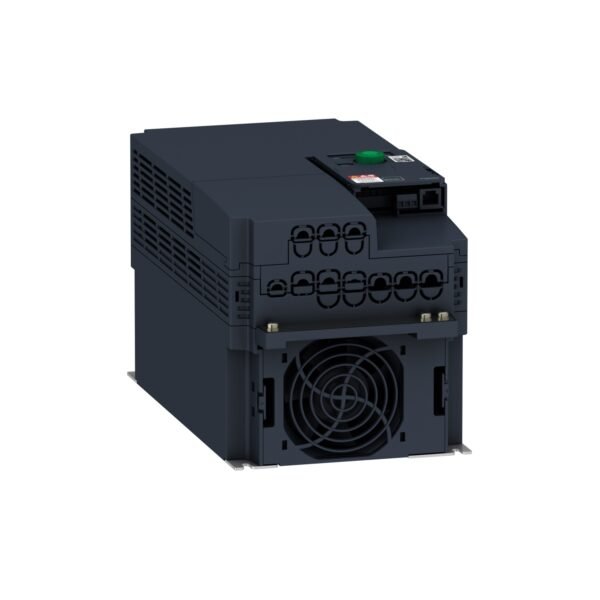

Schneider ATV320D11M3C | Variable speed drive, Altivar Machine ATV320, 11 kW, 200…240 V, 3 phases, compact

ATV320D11M3C | Variable speed drive, Altivar Machine ATV320, 11 kW, 200…240 V, 3 phases, compact

Compare

Product Code:

ATV320D11M3C

Tags:

11 kW, 200...240 V, 3 phases, Altivar Machine ATV320, compact, Variable speed drive

Brand: Schneider Electric

Schneider ATV320D11M3C | Variable speed drive, Altivar Machine ATV320, 11 kW, 200…240 V, 3 phases, compact

Name: Schneider ATV320D11M3C | Variable speed drive, Altivar Machine ATV320, 11 kW, 200...240 V, 3 phases, compact
Brand: Schneider Electric
SKU: ATV320D11M3C
Availability: OutOfStock

<span data-mce-type="bookmark" style="width: 0px;overflow: hidden;line-height: 0" class="mce_SELRES_start"></span>

The Schneider ATV320D11M3C is part of the Altivar Machine ATV320 series, known for its high performance and robust design. It is specifically designed for applications that require variable speed control, offering precise and efficient motor control.

Features and Specifications

Variable Speed Drive

The ATV320D11M3C functions as a variable speed drive, allowing users to control motor speed based on application requirements. This flexibility leads to energy savings and optimized performance.

Altivar Machine ATV320

As part of the Altivar Machine series, this drive incorporates advanced technology for seamless integration into industrial processes, ensuring smooth operation and reliability.

Power Capacity: 11 kW

With a power capacity of 11 kW, the ATV320D11M3C is suitable for medium to high-power applications, providing sufficient torque and speed control.

Voltage: 200-240 V, Phases: 3 Phases

Operating at a voltage range of 200-240 volts and supporting three-phase systems, this drive is compatible with a wide range of industrial setups.

Compact Design

The compact design of the ATV320D11M3C makes it easy to install in limited spaces, enhancing flexibility and convenience for industrial setups.

Benefits of Using Schneider ATV320D11M3C

The utilization of Schneider ATV320D11M3C offers several advantages:

Energy Efficiency: By adjusting motor speed as needed, energy consumption is optimized, leading to cost savings.
Enhanced Control and Performance: Precise speed control ensures efficient operation and improved productivity.
Compact and Easy Installation: The compact design facilitates installation even in tight spaces, reducing setup time.

Applications of the ATV320D11M3C

The versatility of this variable speed drive makes it suitable for various applications:

Industrial Automation: Used in manufacturing processes for controlling conveyor belts, pumps, and more.
HVAC Systems: Ensures optimal performance and energy savings in heating, ventilation, and air conditioning systems.
Pumping and Ventilation Systems: Provides accurate control in water pumps, fans, and ventilation systems.

Comparison with Other Variable Speed Drives

When compared to similar drives in the market, the ATV320D11M3C stands out due to its compact design, energy efficiency, and reliable performance, making it a preferred choice for industrial applications.

How to Install and Set Up the ATV320D11M3C

The installation and setup process for the ATV320D11M3C is straightforward, requiring adherence to the manufacturer’s guidelines and safety precautions. Proper installation ensures optimal performance and longevity.

Maintenance Tips for Optimal Performance

Regular maintenance is essential to ensure the ATV320D11M3C operates at peak efficiency. This includes periodic inspections, cleaning, and firmware updates as recommended by Schneider Electric.

Conclusion

In conclusion, the Schneider ATV320D11M3C variable speed drive offers a comprehensive solution for industrial motor control, combining efficiency, reliability, and ease of use. Its advanced features make it a valuable asset across various industrial sectors.

FAQs

Is the ATV320D11M3C suitable for single-phase applications? No, this drive is designed for three-phase systems.
Can I integrate the ATV320D11M3C with existing automation systems? Yes, it supports seamless integration with various automation setups.
What is the warranty period for this drive? Warranty terms may vary, and it’s recommended to check with the manufacturer or authorized distributors.
Does the drive come with built-in safety features? Yes, it includes safety features to protect both the equipment and personnel.
Can the ATV320D11M3C be used in outdoor environments? While it can withstand certain environmental conditions, it’s best suited for indoor use.

brands	Schneider Electric

Main
Range of product	Altivar Machine ATV320
Product or component type	Variable speed drive
Product specific application	Complex machines
Variant	Standard version
Format of the drive	Compact
Mounting mode	Wall mount
Communication port protocol	Modbus serial CANopen
Option card	Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet
[Us] rated supply voltage	200...240 V - 15...10 %
Nominal output current	54.0 A
Motor power kW	11 kW for heavy duty
EMC filter	Without EMC filter
IP degree of protection	IP20

Complementary
Discrete input number	7
Discrete input type	STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V)
Discrete input logic	Positive logic (source) Negative logic (sink)
Discrete output number	3
Discrete output type	Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA
Analogue input number	3
Analogue input type	AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits
Analogue output number	1
Analogue output type	Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Relay output type	Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C
Maximum switching current	Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC
Minimum switching current	Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC
Method of access	Slave CANopen
4 quadrant operation possible	True
Asynchronous motor control profile	Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points
Synchronous motor control profile	Vector control without sensor
Maximum output frequency	0.599 kHz
Acceleration and deceleration ramps	Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection
Motor slip compensation	Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points)
Switching frequency	2...16 kHz adjustable 4...16 kHz with derating factor
Nominal switching frequency	4 kHz
Braking to standstill	By DC injection
Brake chopper integrated	True
Line current	60.9 A at 200 V (heavy duty) 51.4 A at 240 V (heavy duty)
Maximum input current	60.9 A
Maximum output voltage	240 V
Apparent power	21.4 kVA at 240 V (heavy duty)
Network frequency	50...60 Hz
Relative symmetric network frequency tolerance	5 %
Prospective line Isc	22 kA
Base load current at high overload	1.5 A
Power dissipation in W	Fan: 468.0 W at 200 V, switching frequency 4 kHz
With safety function Safely Limited Speed (SLS)	True
With safety function Safe brake management (SBC/SBT)	False
With safety function Safe Operating Stop (SOS)	False
With safety function Safe Position (SP)	False
With safety function Safe programmable logic	False
With safety function Safe Speed Monitor (SSM)	False
With safety function Safe Stop 1 (SS1)	True
With sft fct Safe Stop 2 (SS2)	False
With safety function Safe torque off (STO)	True
With safety function Safely Limited Position (SLP)	False
With safety function Safe Direction (SDI)	False
Protection type	Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive
Width	180 mm
Height	330 mm
Depth	198.0 mm
Net weight	6.8 kg
Transient overtorque	170…200 % of nominal motor torque

Environment
Operating position	Vertical +/- 10 degree
Product certifications	CE ATEX NOM GOST EAC RCM KC
Marking	CE ATEX UL CSA EAC RCM
Standards	IEC 61800-5-1
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)	Class 3K5 according to EN 60721-3
Volume of cooling air	156.0 m3/h
Overvoltage category	III
Regulation loop	Adjustable PID regulator
Speed accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn
pollution degree	2
Ambient air transport temperature	-25…70 °C
Ambient air temperature for operation	-10…50 °C without derating 50…60 °C with derating factor
Ambient air temperature for storage	-25…70 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	22.500 cm
Package 1 Width	25.000 cm
Package 1 Length	42.000 cm
Package 1 Weight	7.887 kg
Unit Type of Package 2	S06
Number of Units in Package 2	6
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	60.982 kg

Main documents

Datasheet	Download Datasheet
Product datasheet	Download
Instruction sheet	Download
User guide	Download
Catalog	Download
Environmental disclosure	Download
CAD Files	Download

Datasheet	Download Datasheet
Product datasheet	Download
Instruction sheet	Download
User guide	Download
Catalog	Download
Environmental disclosure	Download
CAD Files	Download
