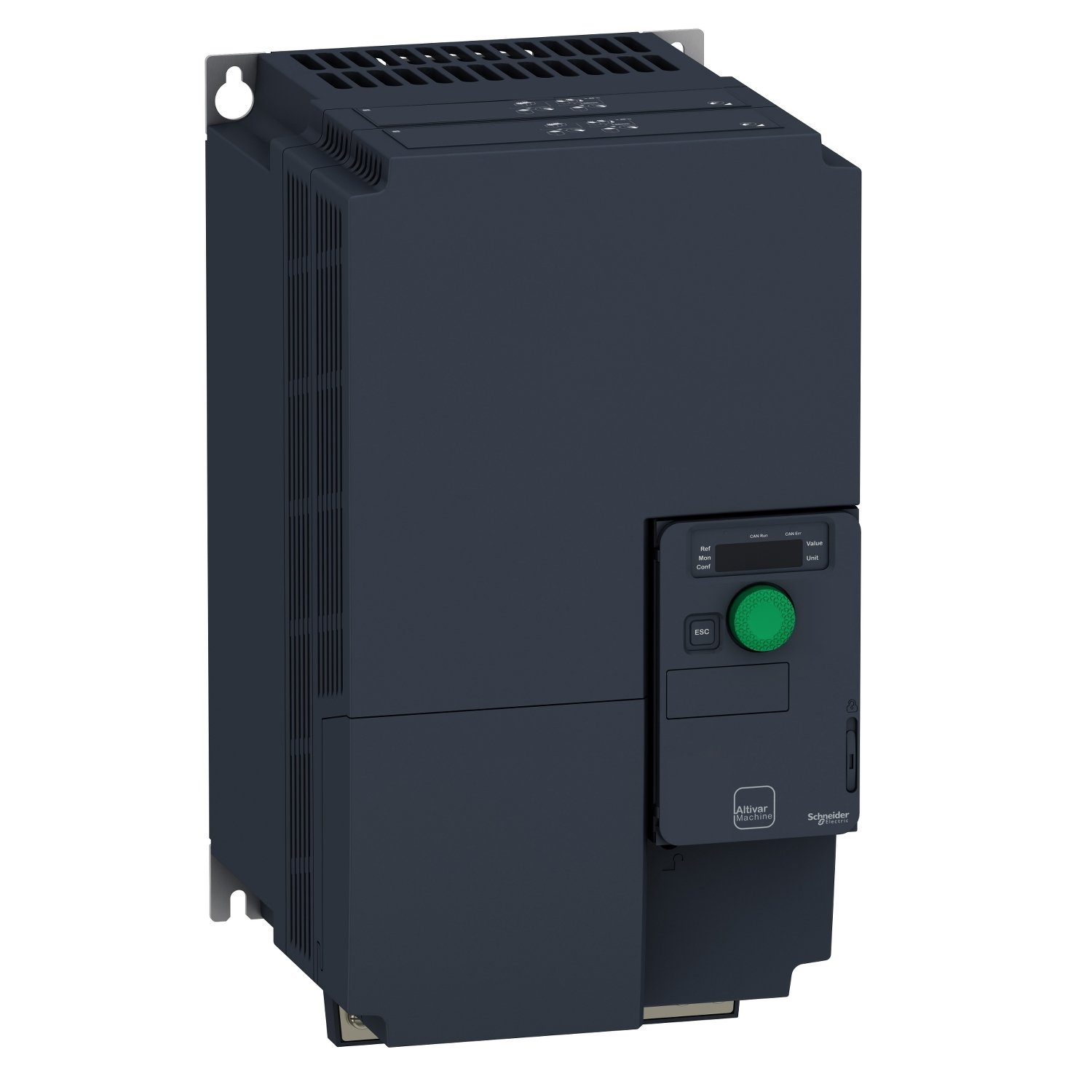

Schneider ATV320D15N4C | Variable speed drive, ATV320, 15 kW, 380…500 V, 3 phases, compact
Schneider ATV320D15N4C | Variable speed drive, ATV320, 15 kW, 380…500 V, 3 phases, compact
Original price was: EGP 1,075,476.00.EGP 591,512.00Current price is: EGP 591,512.00.
Description
Schneider ATV320D15N4C | Variable Speed Drive, ATV320, 15 kW, 380…500 V, 3 phases, compact description
Introduction to Schneider ATV320D15N4C it is a cutting-edge variable speed drive (VSD) designed for optimal control and efficiency in industrial applications. It offers precise motor speed regulation, energy savings, and enhanced performance, making it a preferred choice in the automation industry.
Benefits of Variable Speed Drives (VSDs) VSDs like the ATV320D15N4C offer numerous advantages, including:
- Energy efficiency by matching motor speed to load requirements.
- Reduced wear and tear on equipment, leading to lower maintenance costs.
- Enhanced process control and productivity.
- Smooth acceleration and deceleration, minimizing stress on mechanical components.
- Compatibility with various motor types, enhancing versatility in applications.
Features of ATV320D15N4C it boasts several features that make it stand out:
- Compact design for space-saving installation.
- Wide input voltage range (380V to 500V) suitable for diverse power systems.
- Three-phase compatibility for balanced power distribution.
- Precise speed control with high torque output.
- Integrated safety features such as overload protection and fault diagnostics.
Technical Specifications
- Power Rating: 15 kW
- Voltage Range: 380V to 500V
- Phases: 3
- Control Method: Variable Frequency Drive (VFD)
- Communication Protocols: Modbus, CANopen
- Protection Class: IP20
- Operating Temperature: -10°C to 50°C
Installation Guide Installing the ATV320D15N4C involves:
- Ensuring proper power supply and grounding.
- Mounting the drive securely in a suitable location.
- Connecting input and output terminals as per the wiring diagram.
- Configuring control parameters using the provided software or interface.
- Conducting initial tests and commissioning procedures.
Applications and Industries The ATV320D15N4C finds application in various industries such as:
- Manufacturing for conveyor systems and motor control.
- HVAC (Heating, Ventilation, and Air Conditioning) for energy-efficient fan and pump control.
- Water and wastewater treatment plants for process optimization.
- Renewable energy systems for grid-tie inverters and solar pump control.
Maintenance Tips To ensure longevity and optimal performance:
- Regularly check for loose connections and signs of overheating.
- Keep the drive environment clean and free from dust and moisture.
- Follow recommended maintenance schedules for inspections and servicing.
- Update firmware and software for improved functionality and security.
Comparison with Other VSDs When compared to similar VSDs in its class, it excels in terms of efficiency, compactness, and advanced control features, making it a top choice for industrial applications.
Cost Considerations While initial investment in VSDs like the ATV320D15N4C may seem significant, the long-term benefits in energy savings, reduced maintenance, and enhanced productivity outweigh the costs, offering a substantial return on investment (ROI).
Future Trends in VSD Technology The future of VSD technology is poised for advancements in connectivity, predictive maintenance, and AI-driven optimization, aligning with Industry 4.0 principles for smarter and more efficient industrial operations.
Conclusion The Schneider ATV320D15N4C is a versatile and efficient variable speed drive that combines advanced features with ease of installation and maintenance, making it an ideal choice for modern industrial automation needs.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Altivar Machine ATV320 |
|---|---|
| Product or component type | Variable speed drive |
| Product specific application | Complex machines |
| Variant | Standard version |
| Format of the drive | Compact |
| Mounting mode | Wall mount |
| Communication port protocol | Modbus serial CANopen |
| Option card | Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Nominal output current | 33.0 A |
| Motor power kW | 15.0 kW for heavy duty |
| EMC filter | Integrated |
| IP degree of protection | IP20 |
| Discrete input number | 7 |
|---|---|
| Discrete input type | STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) |
| Discrete input logic | Positive logic (source) Negative logic (sink) |
| Discrete output number | 3 |
| Discrete output type | Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits |
| Analogue output number | 1 |
| Analogue output type | Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits |
| Relay output type | Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C |
| Maximum switching current | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Method of access | Slave CANopen |
| 4 quadrant operation possible | True |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points |
| Synchronous motor control profile | Vector control without sensor |
| Maximum output frequency | 0.599 kHz |
| Acceleration and deceleration ramps | Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection |
| Motor slip compensation | Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Line current | 47.3 A at 380 V (heavy duty) 33.3 A at 500 V (heavy duty) |
| Maximum input current | 47.3 A |
| Maximum output voltage | 500 V |
| Apparent power | 28.8 kVA at 500 V (heavy duty) |
| Network frequency | 50...60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Prospective line Isc | 22 kA |
| Base load current at high overload | 33.0 A |
| Power dissipation in W | Fan: 452.0 W at 380 V, switching frequency 4 kHz |
| With safety function Safely Limited Speed (SLS) | True |
| With safety function Safe brake management (SBC/SBT) | False |
| With safety function Safe Operating Stop (SOS) | False |
| With safety function Safe Position (SP) | False |
| With safety function Safe programmable logic | False |
| With safety function Safe Speed Monitor (SSM) | False |
| With safety function Safe Stop 1 (SS1) | True |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe torque off (STO) | True |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Direction (SDI) | False |
| Protection type | Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive |
| Width | 180 mm |
| Height | 330 mm |
| Depth | 198.0 mm |
| Net weight | 6.9 kg |
| Transient overtorque | 170…200 % of nominal motor torque |
| Operating position | Vertical +/- 10 degree |
|---|---|
| Product certifications | CE ATEX NOM GOST EAC RCM KC |
| Marking | CE ATEX UL CSA EAC RCM |
| Standards | IEC 61800-5-1 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Volume of cooling air | 156.0 m3/h |
| Overvoltage category | III |
| Regulation loop | Adjustable PID regulator |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| pollution degree | 2 |
| Ambient air transport temperature | -25…70 °C |
| Ambient air temperature for operation | -10…50 °C without derating 50…60 °C with derating factor |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.500 cm |
| Package 1 Width | 25.000 cm |
| Package 1 Length | 42.000 cm |
| Package 1 Weight | 7.785 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 57.500 kg |
