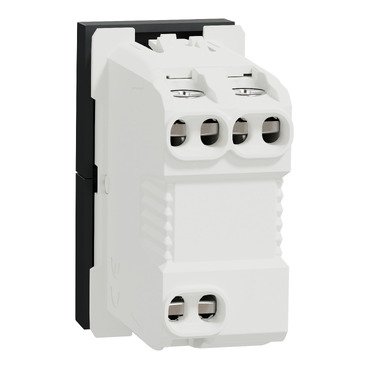

Schneider NU310854SC | Roller blind switch, New Unica, 10AX, 250V, 1 module, anthracite
Specifications NU310854SC
-
Product Name: Schneider Electric New Unica Roller Blind Switch
-
Reference Code: NU310854SC
-
Function Type: Roller blind (shutter) switch
-
Rated Current: 10AX
-
Rated Voltage: 250V AC
-
Number of Modules: 1 module
-
Color: Anthracite
-
Range: New Unica
-
Mounting Type: Flush-mounted, compatible with New Unica support frames
-
Switching Type: Mechanically interlocked switch for up/down control
-
Operation: Manual switching for blind/shutter motors
Features
-
Specifically designed for controlling roller blinds, shutters, or motorized curtains
-
Interlocked mechanism prevents simultaneous up/down commands, protecting the motor
-
Stylish anthracite finish complements modern interiors
-
Compact 1-module design saves space and fits into standard wall boxes
-
Simple wiring and reliable operation
-
Durable construction suitable for frequent use
-
Integrated into the New Unica modular range for a consistent look across electrical fittings
Applications
-
Used to control electric roller shutters, window blinds, and motorized curtains in residential or commercial buildings
-
Ideal for living rooms, offices, bedrooms, and smart home environments
-
Suitable for manual control of tubular motors in home automation or standalone systems
-
Frequently installed near windows or balcony doors for convenient access
-
Can be used with or without automation relays depending on system configuration
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | New Unica |
|---|---|
| Device application | Control |
| product or component type | Roller blind switch |
| device presentation | Mechanism with central plate |
| Rated current | 10 AX |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Fixing mode | Clip-in |
| Colour tint | Anthracite (RAL 7021) |
| Main colour tint | Anthracite |
| device mounting | Flush |
|---|---|
| Number of modules | 1 module |
| Technology type | Electromechanical |
| Actuator | Rocker |
| Number of rocker | 2 |
| Switch function | 1-pole 2-way |
| Switch application | Roller blind |
| Number of poles | 1 |
| Contacts type and composition | 1 C/O |
| Mechanical interlocking | Interlock between up/down |
| [Iu] rated interrupted current | 2.5 A for motor |
| Opening distance | > 3 mm |
| Pilot light | Without LED |
| marking | Down UP |
| Connections - terminals | Screw terminals |
| Cable cross section | 2.5 mm² flexible cable 1.5…2.5 mm² flexible cable 2.5 mm² rigid cable 1.5…2.5 mm² rigid cable |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Electrical durability | 40000 cycles, cos phi = 0.6 10000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Material | ASA + PC: mechanism cover ABS (acrylonitrile butadiene-styrene): mechanism cover |
| Standards | EMC directive EN 60669-1 LV directive |
| Product certifications | ISI CE |
| Ambient air temperature for operation | -5…40 °C |
| ambient air temperature for storage | -5…40 °C |
| Embedding depth | 31.5 mm |
| Depth | 40.6 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| net weight | 0.036 kg |
| IK degree of protection | IK04 |
|---|---|
| IP degree of protection | IP4X |
| Environmental characteristic | Bleach Window-cleaning fluid UV resistant Alcohol Liquid soap Oil Petrol Acetone |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.05 cm |
| Package 1 Width | 2.25 cm |
| Package 1 Length | 4.5 cm |
| Package 1 Weight | 21 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 6.5 cm |
| Package 2 Width | 12 cm |
| Package 2 Length | 18.5 cm |
| Package 2 Weight | 278.3 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 4.894 kg |
