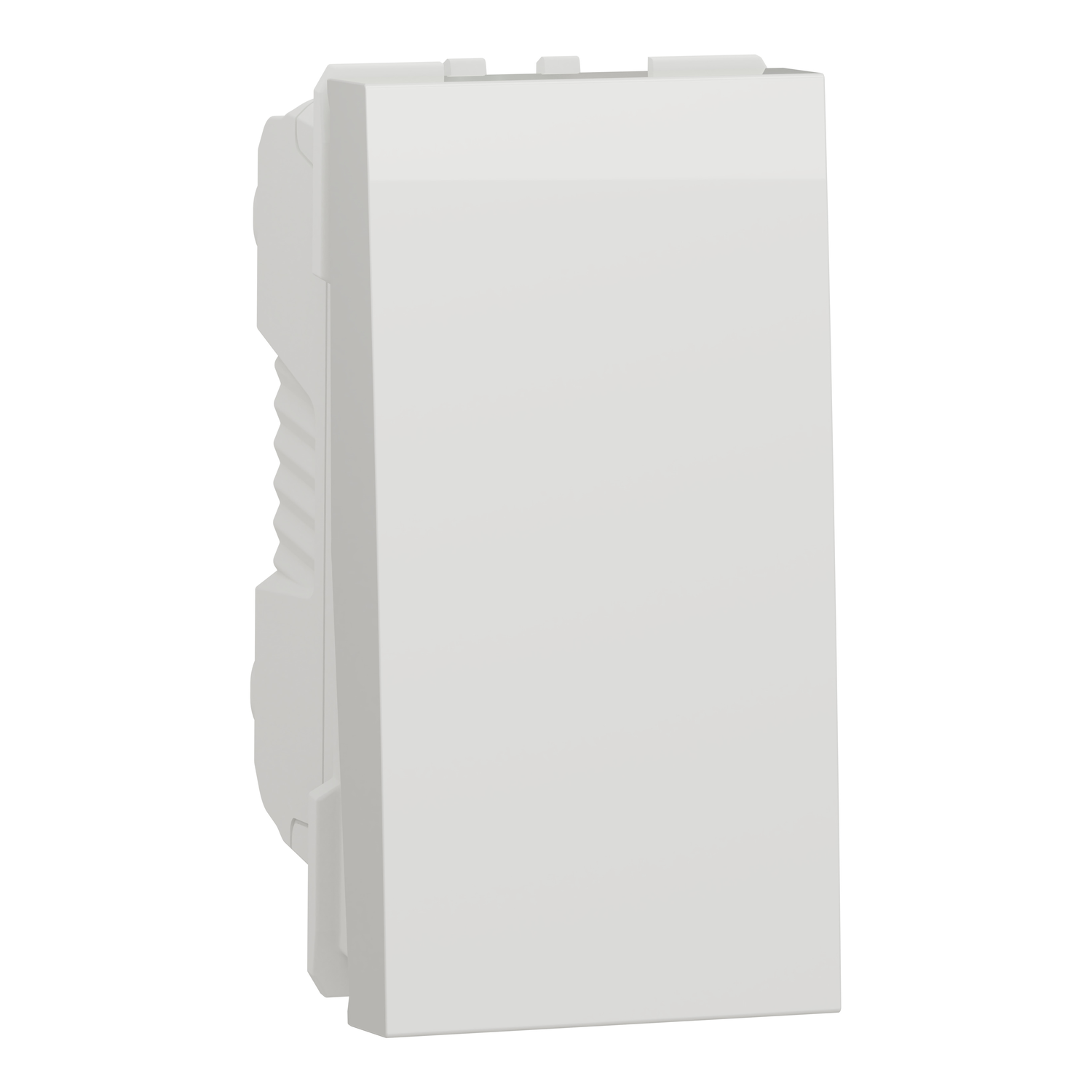

Schneider NU316118 |Switch, New Unica, mechanism, 1-pole 1-way, 16AX, 1 module, screw terminals, untreated, IP4X, white

Specifications:

General Information:

• Brand: Schneider Electric

• Range: New Unica

• Model: NU316118

• Product Type: Electrical switch mechanism

• Color: White

• Finish: Untreated (standard finish)

Electrical Characteristics:

• Function: 1-pole, 1-way (controls a single circuit from one point)

• Rated Current: 16AX (suitable for both resistive and inductive loads)

• Rated Voltage: 230–250 V AC

• Frequency: 50/60 Hz

• Load Type: Compatible with incandescent, fluorescent, LED, and inductive loads

Mechanical & Installation:

• Module Size: 1 module (compatible with modular mounting plates)

• Terminal Type: Screw terminals (reliable and secure wiring)

• Mounting Type: Flush-mounted (requires a compatible New Unica frame and support)

• Fixing Method: Clipped into mounting frames with screw fixing to wall box

Protection & Durability:

• IP Rating: IP4X (protection against solid objects >1 mm)

• Impact Resistance: IK04

• Material: High-quality thermoplastic

• Standards: Compliant with IEC 60669-1 and European regulations

Key Features:

1. Simple and Reliable Operation:
   A standard 1-way switch suitable for controlling a light or other device from a single point.

2. 16AX Rating:
   Capable of handling both resistive and inductive loads up to 16 A, including LED lighting with electronic drivers.

3. Screw Terminals:
   Provides a secure, long-lasting electrical connection; suitable for solid and stranded wires.

4. IP4X Protection:
   Offers adequate protection against accidental contact with internal parts or ingress of small solid objects.

5. Modular Design:
   Designed to fit seamlessly into New Unica frames, allowing easy customization and consistent aesthetics.

6. Durable Material:
   Made from flame-retardant, impact-resistant thermoplastic for safety and longevity.

7. Neutral White Color:
   Blends well with most interior styles, especially in modern or minimalist spaces.

Applications:

• Residential:
  Ideal for bedrooms, living rooms, kitchens, and hallways to control lighting or appliances.

• Commercial Buildings:
  Suitable for offices, conference rooms, and general-purpose rooms requiring simple switch control.

• Educational & Healthcare Facilities:
  Durable and reliable for use in schools, clinics, and hospitals.

• Hotels & Retail:
  Compatible with decorative New Unica covers and frames to suit themed interior designs.
