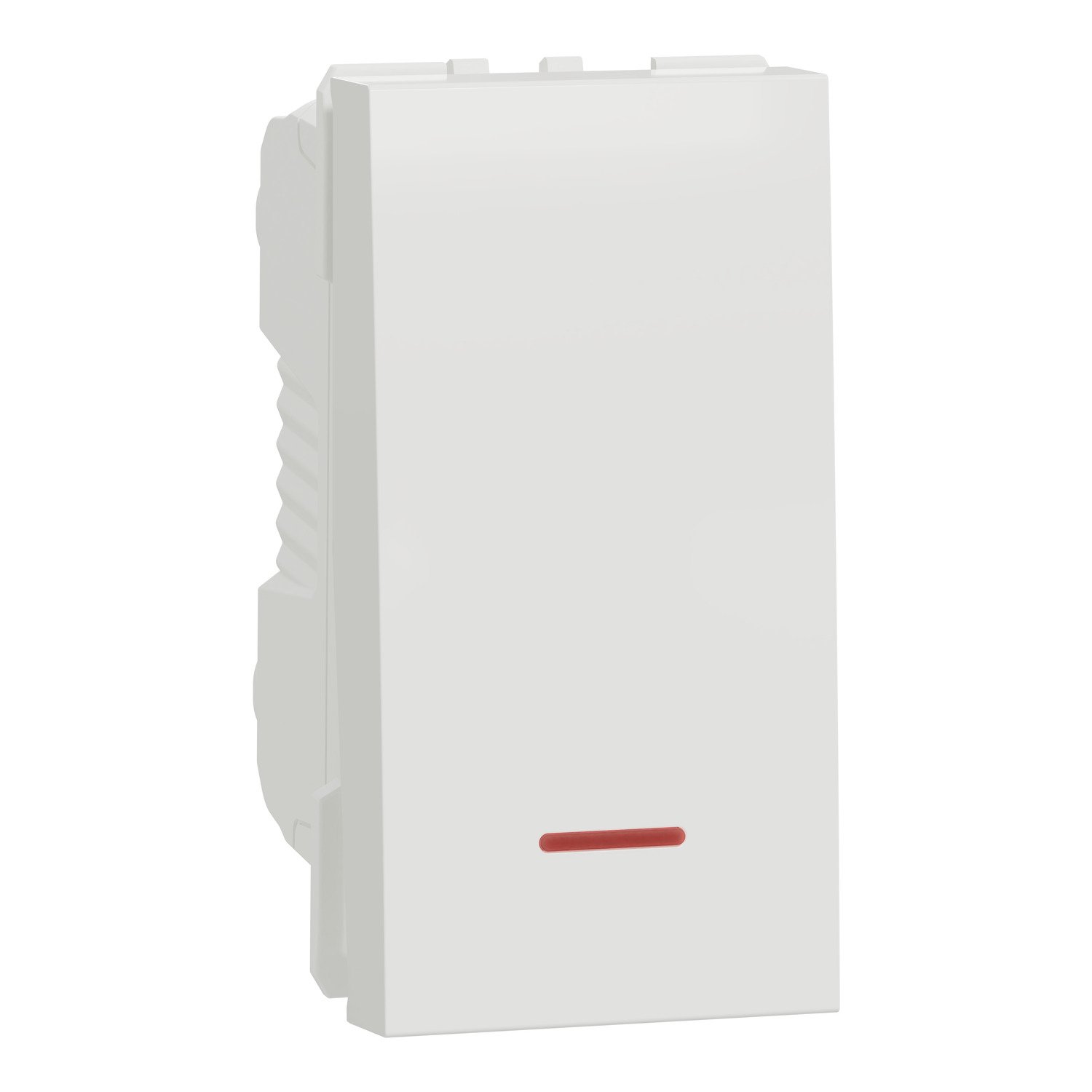

Schneider NU316118S | Switch, New Unica, 1-pole 1-way, 16AX, 1 module, indication lamp, white
Schneider NU316118S | Switch, New Unica, 1-pole 1-way, 16AX, 1 module, indication lamp, white
Original price was: EGP 1,341.00.EGP 110.00Current price is: EGP 110.00.
Description
Schneider NU316118S | Switch, New Unica, 1-pole 1-way, 16AX, 1 module, indication lamp, white
Specifications:
- Model: Schneider NU316118S
- Series: New Unica
- Type: 1-Pole, 1-Way Switch with Indication Lamp
- Current Rating: 16AX
- Number of Modules: 1 Module
- Color: White
- Material: High-quality plastic
- Indication Lamp: Built-in for easy visibility
- Mounting Type: Flush-mounted
- Compatibility: Designed for use with Schneider Electric’s New Unica system
Features:
- Modern and stylish design that blends seamlessly with contemporary interiors
- Compact 1-module size for space-saving installations
- Durable and high-quality plastic material for long-lasting performance
- Built-in indication lamp for clear status visibility
- Easy and quick installation with reliable wiring connections
- Designed to handle up to 16AX, making it suitable for lighting circuits
- Smooth and user-friendly operation for everyday use
Uses:
- Ideal for residential, commercial, and office environments
- Used to control lighting in various settings, including homes, hotels, and workplaces
- The built-in indication lamp provides clear status feedback, making it perfect for dark areas or energy-efficient setups
- Compatible with New Unica frames and plates, ensuring a consistent and stylish look
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Product range | New Unica |
|---|---|
| Product type or ingredients | key |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Key function | One outlet, one direction |
| swing number | 1 |
| Device application | Light control |
| Available Equipment | LED |
| Colour tint | White (RAL 9003) |
| Packing type | flow-pack packaging machine |
| Rated current: | 16 amps |
|---|---|
| [Ue] Rated operating voltage | 250 volts |
| Network type | alternating current |
| Network frequency | 50/60 Hz |
| electrical resistance | 5000 cycles 20000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5MΩ at 500V |
| dielectric strength | 2000 V |
| Minimum load cutting capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Use case | internal |
| Opening distance | > 3 mm |
| Operator | Swinging |
| Number of modules | lonliness |
| Guide light | LED lamp, color:amber, current consumption:0.15mA, temperature rise:15°C LED lamp, color:red, current consumption:1.5mA, temperature rise:15°C |

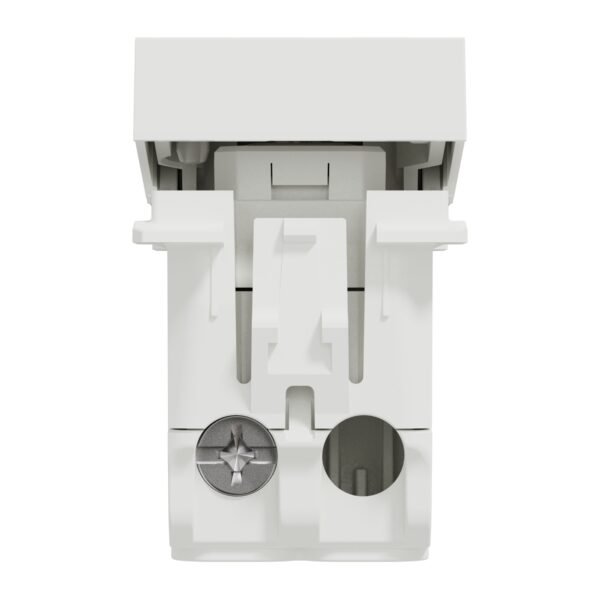

| Connectors - Terminals | Screw terminals |
| cable cross section | 0…4 mm² Rigid cable 0…4 mm² Flexible cable |
| Materials | ASA+PC: Mechanism cover ABS(Acrylonitrile Butadiene Styrene): Mechanism cover |
| surface layer | Shiny |
| Specific processing - integrated into the material | Untreated |
| Installation mode | Clip-on |
| the offer | 22.5 mm |
| Height | 45 mm |
| Depth | 34.25 mm |
| Depth of integration | 21.15 mm |
| Net weight | 0.0239 kg |
| Ambient air temperature for operation | 5…40 degrees Celsius |
| Suitable ambient air temperature for storage | 5…50 degrees Celsius |
| Criteria | EN 60669-1 LV Directive EMC Directive |
| Product Certifications | CE AENOR EAC NF VDE |
| Chemical resistance | Alcohol Resistant (70%) Alcohol Resistant (96%) Lactic Acid Resistant Diluted Quaternary Ammonium Resistant Diluted Bleach Resistant Diluted Ammonia Resistant to Water and Soap Resistant to Crystal Detergents Resistant to Hydrogen Peroxide 10x the Volume Hexane Resistant |
| IP protection level | IP4X |
|---|---|
| Protection level IK | IK04 |
| Environmental feature | Bleach Liquid Soap Gasoline Alcohol Acetone Liquid Cleaning Fluids Oil UV Resistant |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3,500 cm |
| Package 1 Width | 2.250 cm |
| Package 1 Length | 4,500 cm |
| Package 1 Weight | 22,000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 8.200 cm |
| Package 2 Width | 17,700 cm |
| Package 2 Length | 18,500 cm |
| Package 2 Weight | 510,000 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 400 |
| Package 3 Height | 30,000 cm |
| Package 3 Width | 40,000 cm |
| Package 3 Length | 60,000 cm |
| Package 3 Weight | 10.200 kg |
