Description

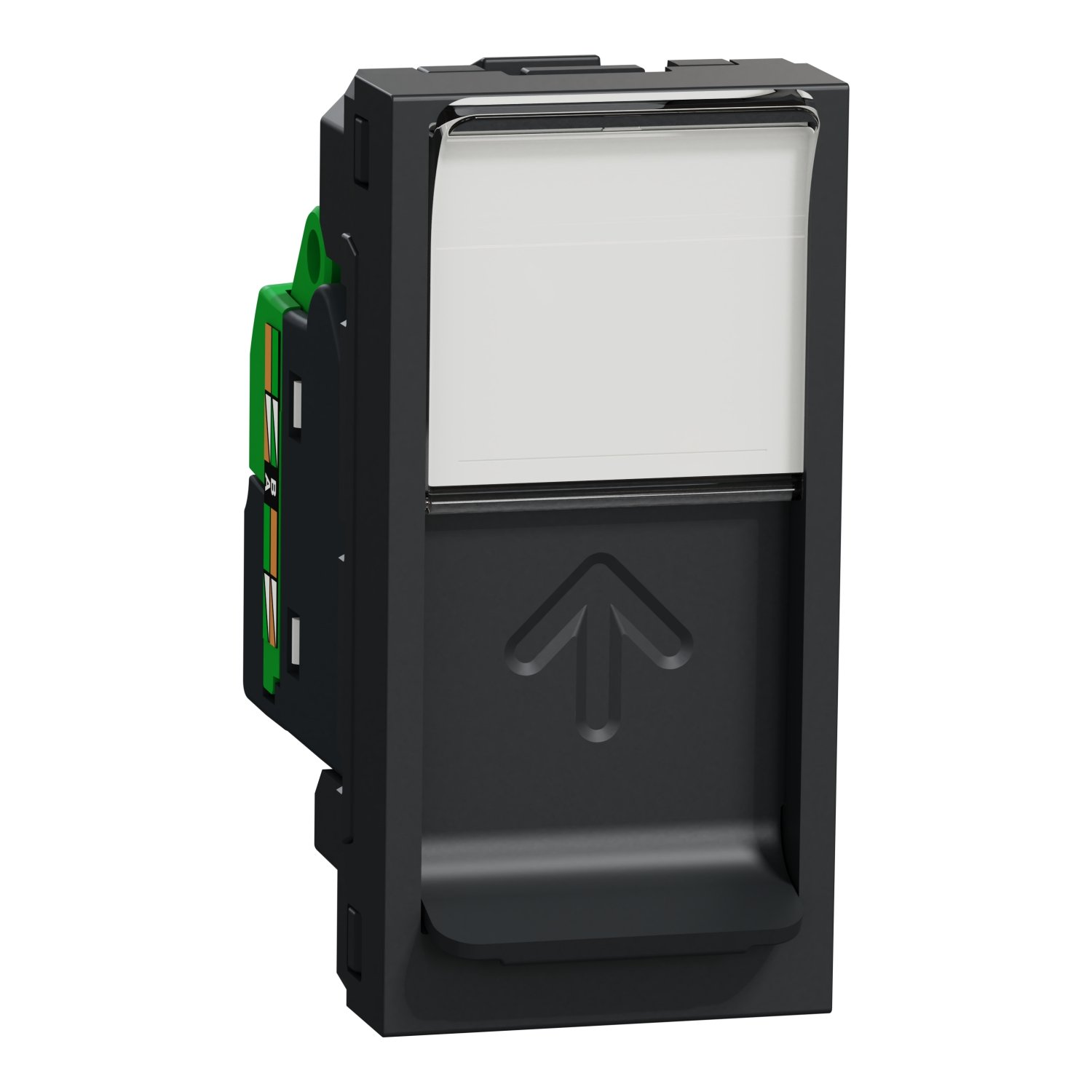

Schneider NU341454 | Data socket, New Unica, mechanism, RJ45, U/UTP, straight, click, shuttered, anthracite
Specifications
-
Product Name: Schneider Electric New Unica RJ45 Data Socket
-
Reference Code: NU341454
-
Function Type: RJ45 data outlet mechanism
-
Connector Type: RJ45 (8P8C)
-
Cable Category: U/UTP (Unshielded Twisted Pair)
-
Orientation: Straight
-
Connection Type: Click-in mechanism
-
Shuttered: Yes (for dust protection)
-
Color: Anthracite
-
Mounting: Flush-mounted, compatible with New Unica support frames and cover plates
-
Application Standard: Suitable for structured cabling systems (Cat 5e, Cat 6 depending on cable used)
Features
-
Universal RJ45 interface for Ethernet and data transmission
-
Shuttered port protects the connector from dust and debris, increasing durability
-
Click-in installation system for quick and secure mounting
-
Straight cable entry design simplifies cable routing during installation
-
Modern anthracite finish blends well with contemporary interiors
-
Compatible with U/UTP cabling, commonly used in office and residential networks
-
Part of the New Unica range, allowing seamless integration with switches, sockets, and multimedia outlets
Applications
-
Used in structured cabling systems for Ethernet, VoIP, and network data transmission
-
Suitable for residential, commercial, and office environments
-
Ideal for wall outlets providing LAN access points for computers, printers, IP phones, and smart devices
-
Frequently installed in meeting rooms, workstations, home offices, and server environments
-
Used in combination with patch panels, network switches, and routers as part of a complete communication network
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | New Unica |
|---|---|
| product or component type | Data socket |
| Device application | Communication |
| device presentation | Mechanism |
| Colour tint | Anthracite (RAL 7021) |
| Data socket type | RJ45 8 contact(s) Cat.6 < 250 MHz |
| Provided equipment | Label holder Protective flap |
| Communication network type | 1000BASE-TX |
|---|---|
| Communication port protocol | ATM 1200 Mbps |
| Number of modules | 1 module |
| Socket number | 1 |
| Type of footprint | Infraplus |
| Connector type | S-One |
| Cable shielding type | U/UTP |
| Organization of wire | Unshielded twisted pair |
| Connections - terminals | Click |
| device mounting | Flush |
| Fixing mode | Clip-in |
| Installation direction | Straight |
| Material | Thermoplastic ABS-UV stabilised: central plate |
| Depth | 40.5 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Embedding depth | 40.5 mm |
| Resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
| IP degree of protection | IP20 |
|---|---|
| IK degree of protection | IK01 |
| Ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -25…55 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.3 cm |
| Package 1 Width | 4.0 cm |
| Package 1 Length | 4.5 cm |
| Package 1 Weight | 14.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.5 cm |
| Package 2 Width | 14.0 cm |
| Package 2 Length | 26.0 cm |
| Package 2 Weight | 140.0 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 15.0 cm |
| Package 3 Width | 15.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 484.0 g |
