New Unica, Residential and Small Business, Switches & sockets series: flush mounted, Wiring Devices (Switches & Sockets)

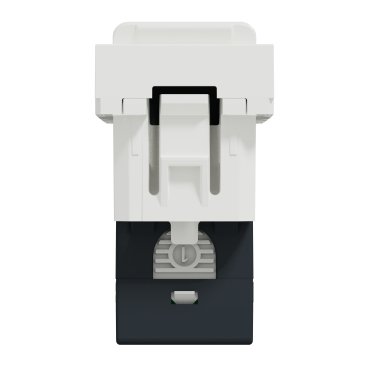

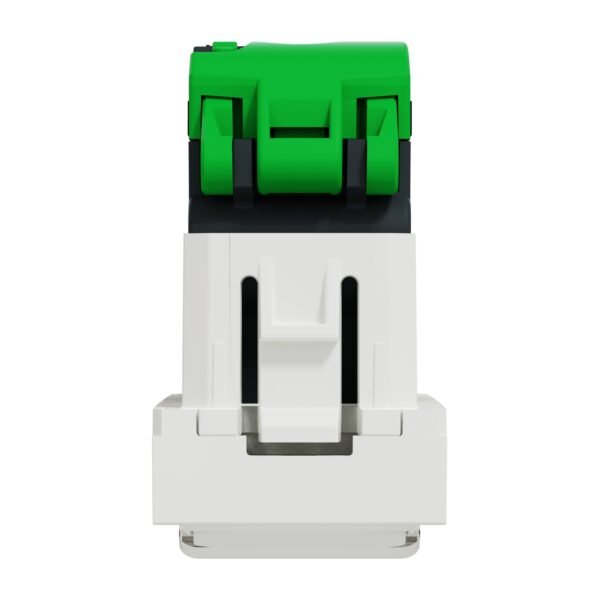

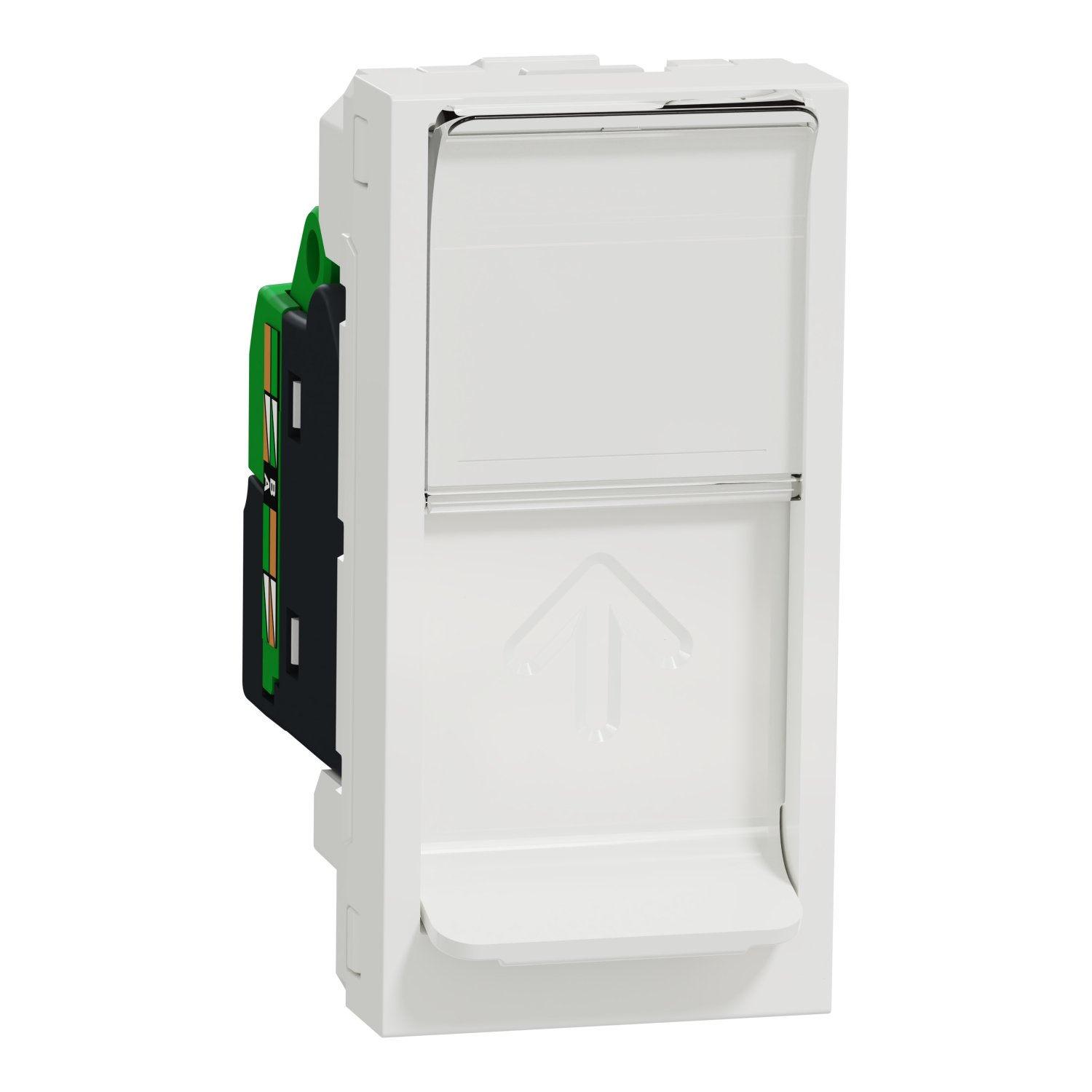

Schneider NU341618 | Data socket, New Unica, RJ45 CAT 6 STP, straight, click, shuttered, 1 module, white
Schneider NU341618 | Data socket, New Unica, RJ45 CAT 6 STP, straight, click, shuttered, 1 module, white
Original price was: EGP 5,787.00.EGP 4,748.00Current price is: EGP 4,748.00.
Description
Schneider NU341618 | Data socket, New Unica, RJ45 CAT 6 STP, straight, click, shuttered, 1 module, white
The Schneider NU341618 is a standout product from the New Unica series, blending modern aesthetics with advanced functionality. Designed to meet the demands of contemporary living and working spaces, this product offers exceptional performance and durability, making it a perfect choice for residential, commercial, and hospitality applications.
Technical Specifications of Schneider NU341618 – New Unica Series
- Product Type: Double Pole Switch with Indicator.
- Design Line: New Unica series, offering a modular and stylish electrical solution.
- Rated Voltage (Ue): 250V AC.
- Rated Current (In): 16A.
- Material: High-quality thermoplastic with UV resistance to prevent discoloration.
- Indicator: Integrated LED indicator for clear visibility of switch status.
- Mounting Type: Flush-mounted for a sleek and seamless appearance.
- Color Options: Available in a variety of colors to match interior designs.
- Standards Compliance: Certified to meet IEC standards for safety and performance.
Schneider Electric New Unica RJ45 connector NU341618 is in color white. What’s more, this device is qualified as a green premium product, with minimal use of hazardous substances.
It is mercury free, as well as heavy metal free, taking care of the environment and your health all the time.
This RJ45 connector is SVHC (substances of very high concern) free too.
The RJ45 connector is made of thermoplastic ABS-UV stabilised, making it as resistant as possible. It is 22.5 mm in width. 45 mm in height. 40.5 mm in depth. Besides it is halogen free halogen free, which is good for your health.
The fixing mode of this device is clip-in. It reaches IP20 degree of protection too.
New Unica offers several designs of RJ45 center plate that are easy and fast to install.
Convenient label holders can be used to identify the connected devices.
It is backwards compatible, and is infinitely scalable for easy planning and flexibility.
The entire New Unica range has been designed to be simple and easy to install, with one offer for both homes and commercial applications.
Scalable and future-proof, Unica is smart home-ready with a range of Wiser connected products.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | New Unica |
|---|---|
| Product or component type | Data socket |
| Device application | Communication |
| Device presentation | Mechanism |
| Colour tint | White (RAL 9003) |
| Data socket type | RJ45 8 contact(s) Cat.6 < 250 MHz |
| Provided equipment | Protective flap Label holder |
| Communication network type | 1000BASE-TX |
|---|---|
| Communication port protocol | ATM 1200 Mbps |
| Number of modules | 1 module |
| Socket number | 1 |
| Type of footprint | Infraplus |
| Connector type | S-One |
| Cable shielding type | STP |
| Organization of wire | Shielded twisted pair |
| Connections - terminals | Click |
| Device mounting | Flush |
| Fixing mode | Clip-in |
| Installation direction | Straight |
| Material | Thermoplastic ABS-UV stabilised: central plate |
| Quantity per set | 1 |
| Depth | 40.5 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Embedding depth | 40.5 mm |
| Resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
| IP degree of protection | IP20 |
|---|---|
| IK degree of protection | IK01 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -5…35 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 4.100 cm |
| Package 1 Length | 2.300 cm |
| Package 1 Weight | 38.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 6.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 26.000 cm |
| Package 2 Weight | 486.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.290 kg |
