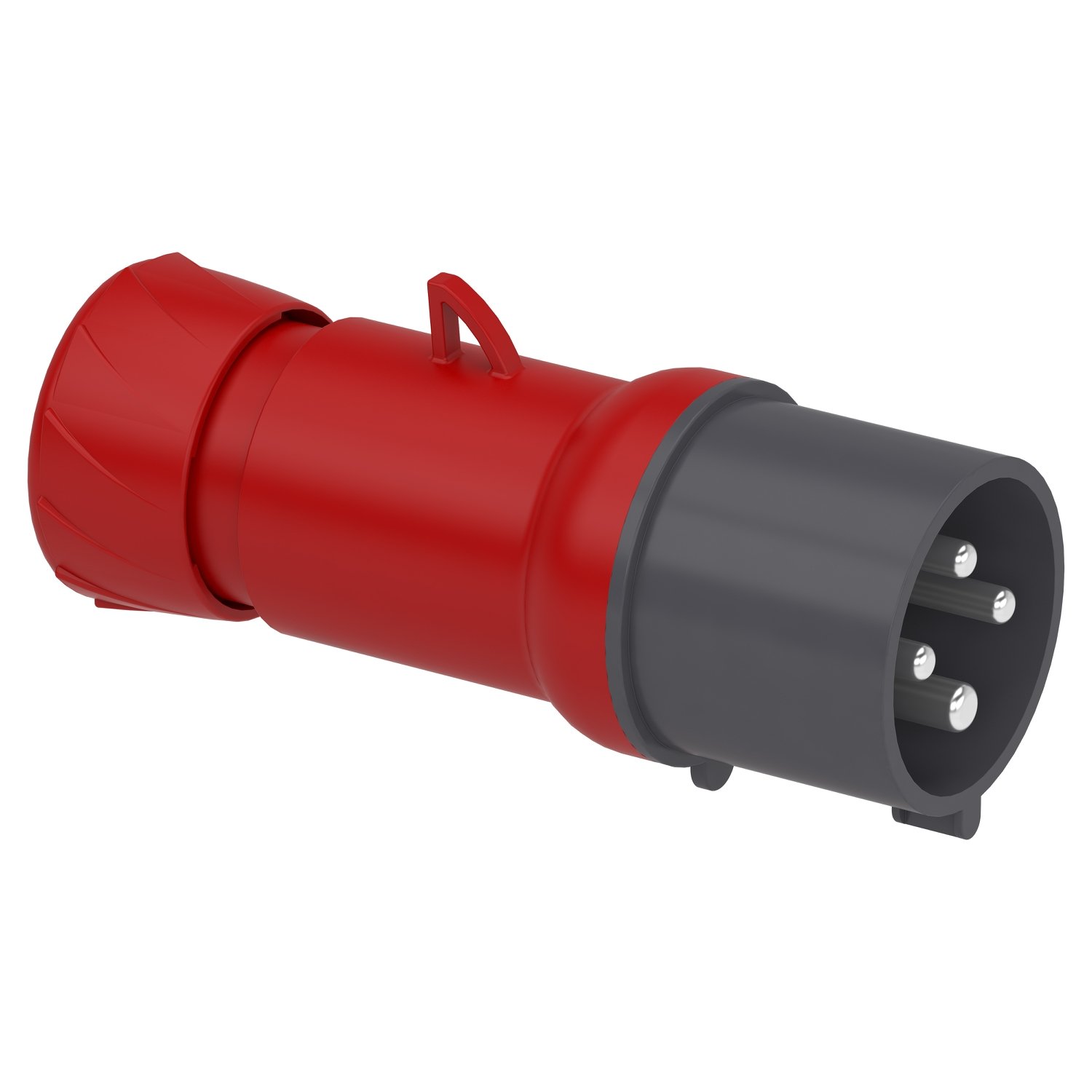

Schneider PKE32M434 | PratiKa wander plug – straight – 32 A – 3P + E – 380…415 V AC – IP44
Schneider PKE32M434 | PratiKa wander plug – straight – 32 A – 3P + E – 380…415 V AC – IP44
EGP 59,508.00
Description
Schneider PKE32M434 | PratiKa wander plug – straight – 32 A – 3P + E – 380…415 V AC –
IP44
1. Technical Specifications
-
Model: Schneider PKE32M434 | PratiKa Wander Plug
-
Type: Industrial portable electrical plug (Wander Plug)
-
Current Rating: 32 A
-
Voltage Rating: 380…415 V AC
-
Poles and Earth: 3P + E (Three-phase + Earth)
-
Protection Rating: IP44 (Protection against solid objects >1mm and water splashes)
-
Material: High-quality, impact-resistant plastic
-
Design: Straight plug for easy and secure connection
-
Color: Typically red for easy identification in industrial environments
2. Features
-
Durable Construction: Made from high-quality thermoplastic material, providing resistance to impact, heat, and chemicals, ensuring reliability in industrial environments.
-
32 A Load Capacity: Supports medium to high-power applications, making it suitable for industrial and commercial use.
-
IP44 Protection: Offers protection against solid objects larger than 1mm and water splashes, making it suitable for semi-outdoor and indoor applications.
-
User-Friendly Design: The straight plug design allows for quick and secure connections and disconnections.
-
Compatibility with Industrial Voltage Systems: Designed for 380-415 V AC three-phase systems, ensuring stable and efficient power distribution.
3. Applications
-
Industrial Facilities: Ideal for powering machinery such as motors, pumps, and automated production systems.
-
Workshops: Suitable for workshops that use high-powered electrical tools and machines.
-
Construction Sites: Used for temporary power supply to heavy-duty construction equipment.
-
Exhibitions and Temporary Installations: Provides a reliable power source for industrial exhibitions and event setups.
-
HVAC Systems: Can be used to connect and power large-scale ventilation and air conditioning systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Mureva |
|---|---|
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 11.5…21 mm |
| Cable entry | Cable gland Fair lead |
| Thread type | Pg 21 |
| Net weight | 0.2 kg |
| Height | 152 mm |
| Width | 76 mm |
| Depth | 76 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Standards | IEC 60309-2 IEC 60309-1 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.200 cm |
| Package 1 Width | 6.900 cm |
| Package 1 Length | 16.200 cm |
| Package 1 Weight | 227.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 12.000 cm |
| Package 2 Width | 26.000 cm |
| Package 2 Length | 27.000 cm |
| Package 2 Weight | 2.410 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 30 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 7.729 kg |
| Warranty | 18 months |
|---|
