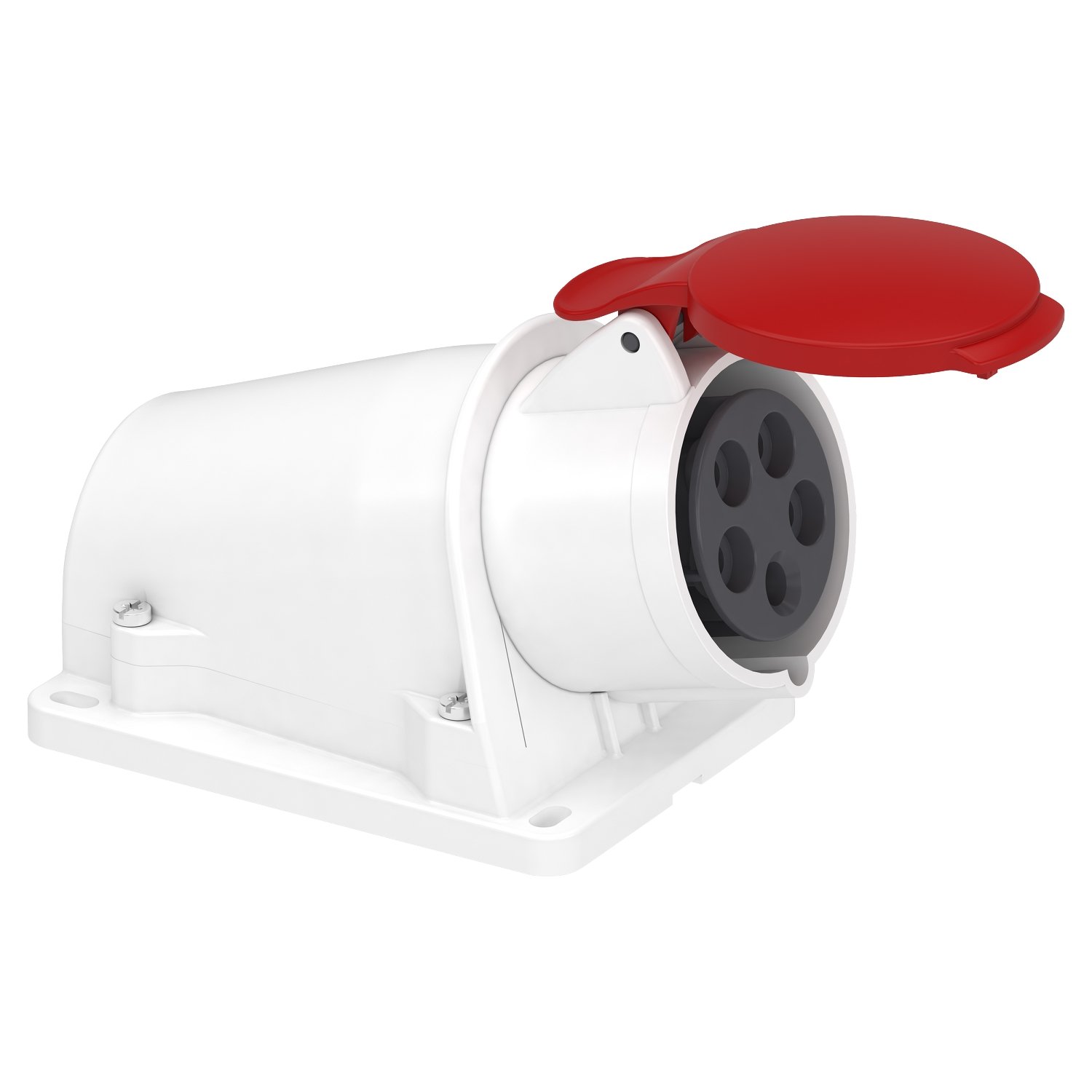

Schneider PKF16W435 | PratiKa socket – screw – angled – 16A – 3P + N + E – 380…415 V AC – wall
Schneider PKF16W435 | PratiKa socket – screw – angled – 16A – 3P + N + E – 380…415 V AC – wall
EGP 6,234.00
Description
Schneider PKF16W435 | PratiKa socket – screw – angled – 16A – 3P + N + E – 380…415 V AC –
wall
1. Technical Specifications
-
Model: Schneider PKF16W435 | PratiKa Socket
-
Type: Industrial wall-mounted socket
-
Current Rating: 16 A
-
Voltage Rating: 380…415 V AC
-
Configuration: 3P + N + E (Three-phase + Neutral + Earth)
-
Mounting Type: Wall-mounted
-
Connection Type: Screw terminals
-
Design: Angled socket for ergonomic and secure connection
-
Material: High-quality, impact-resistant thermoplastic
-
Protection Rating: Typically IP44 (protection against solid objects >1mm and splashing water)
-
Color: Typically red for easy identification in industrial environments
2. Features
-
Durable and Reliable Construction: Made from robust thermoplastic material for long-lasting performance.
-
Angled Design: Improves cable management and prevents strain on connected plugs.
-
3P + N + E Configuration: Supports three-phase power with neutral, making it ideal for various industrial applications.
-
Screw Terminal Connection: Ensures a secure and stable electrical connection.
-
IP44 Protection: Shields against solid objects and splashing water, making it suitable for semi-outdoor and indoor use.
-
Easy Installation: Designed for quick wall-mounting in industrial and commercial settings.
3. Applications
-
Industrial Facilities: Suitable for powering heavy machinery, motors, and automation equipment.
-
Workshops and Factories: Used for connecting industrial tools and production machines.
-
Construction Sites: Provides power supply for temporary installations and electrical equipment.
-
Commercial Buildings: Supports HVAC systems and power distribution units.
-
Power Distribution Systems: Used in electrical panels and infrastructure requiring a 16A, 3-phase + neutral connection.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Mureva |
|---|---|
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Mounting mode | Wall-mounted |
|---|---|
| Plug, socket, control station shape | Angled |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 21 mm |
| Thread type | M25 |
| Net weight | 0.27 kg |
| Height | 120 mm |
| Width | 90 mm |
| Depth | 116 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Standards | IEC 60309-2 IEC 60309-1 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 750 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 15.000 cm |
| Package 1 Weight | 232.800 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 17.500 cm |
| Package 2 Width | 26.500 cm |
| Package 2 Length | 27.000 cm |
| Package 2 Weight | 1.555 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 12 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.548 kg |
| Warranty | 18 months |
|---|
