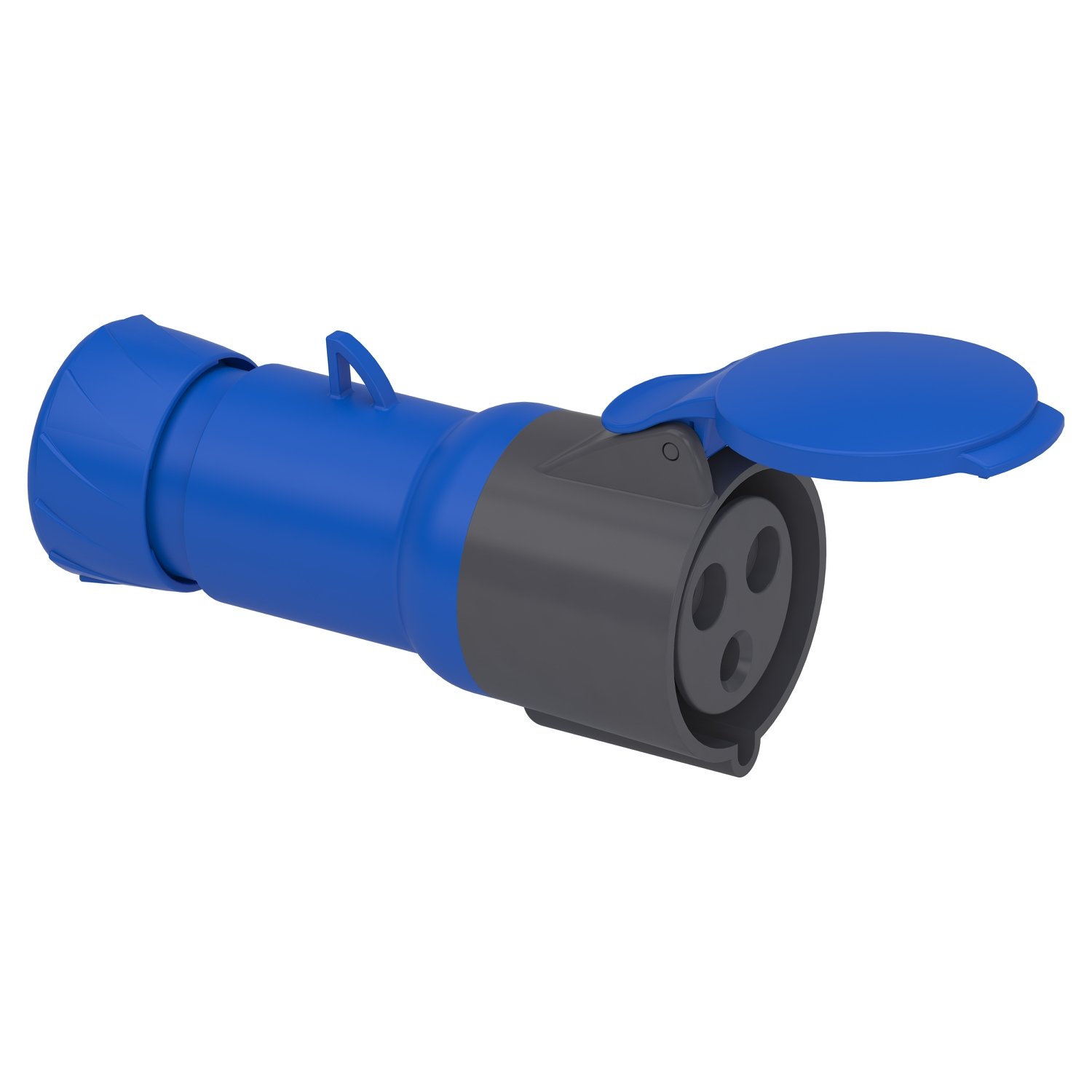

Schneider PKF32M423 | PratiKa wander socket – straight – 32 A – 2P + E – 200…250 V AC – IP44
Schneider PKF32M423 | PratiKa wander socket – straight – 32 A – 2P + E – 200…250 V AC – IP44
EGP 79,344.00
Description
Schneider PKF32M423 | PratiKa wander socket – straight – 32 A – 2P + E – 200…250 V AC –
IP44
1. Technical Specifications
-
Model: Schneider PKF32M423 | PratiKa Wander Socket
-
Type: Industrial portable (wander) socket
-
Current Rating: 32 A
-
Voltage Rating: 200…250 V AC
-
Configuration: 2P + E (Two-phase + Earth)
-
Protection Rating: IP44 (Protection against solid objects >1mm and splashing water)
-
Material: High-quality, impact-resistant thermoplastic
-
Design: Straight socket for easy and secure connection
-
Color: Typically blue (indicating 200-250V AC applications)
-
Connection Type: Screw terminals for secure wiring
2. Features
-
Rugged and Durable Construction: Designed for industrial environments, with impact-resistant plastic housing.
-
2P + E Configuration: Suitable for single-phase power applications requiring an earth connection.
-
IP44 Protection: Shields against dust, solid objects >1mm, and water splashes, making it ideal for indoor and semi-outdoor use.
-
Straight Plug Design: Allows for easy and secure connection with electrical equipment.
-
Screw Terminals: Ensures a reliable and safe electrical connection.
-
Easy Handling and Installation: Ergonomic design simplifies connection and disconnection.
3. Applications
-
Industrial and Commercial Use: Ideal for machinery, lighting, and power distribution systems.
-
Workshops and Factories: Used for connecting electrical tools and production machines operating on single-phase power.
-
Construction Sites: Provides a safe and portable power supply for temporary setups.
-
Agricultural and Outdoor Applications: Suitable for farm equipment and outdoor workstations with IP44 protection.
-
Event and Exhibition Power Supply: Ensures safe power connections in temporary installations
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Mureva |
|---|---|
| Product or component type | Wander socket |
| Device short name | Mureva screw |
| Plug, socket category | Low voltage |
| poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 11.5…21 mm |
| Cable entry | Cable gland Fair lead |
| Thread type | Pg 21 |
| Net weight | 0.25 kg |
| Height | 98 mm |
| Width | 98 mm |
| Depth | 165 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Standards | IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 17.0 cm |
| Package 1 Weight | 223.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 17.0 cm |
| Package 2 Width | 26.0 cm |
| Package 2 Length | 27.0 cm |
| Package 2 Weight | 2.3 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 5.28 kg |
| Warranty | 18 months |
|---|
