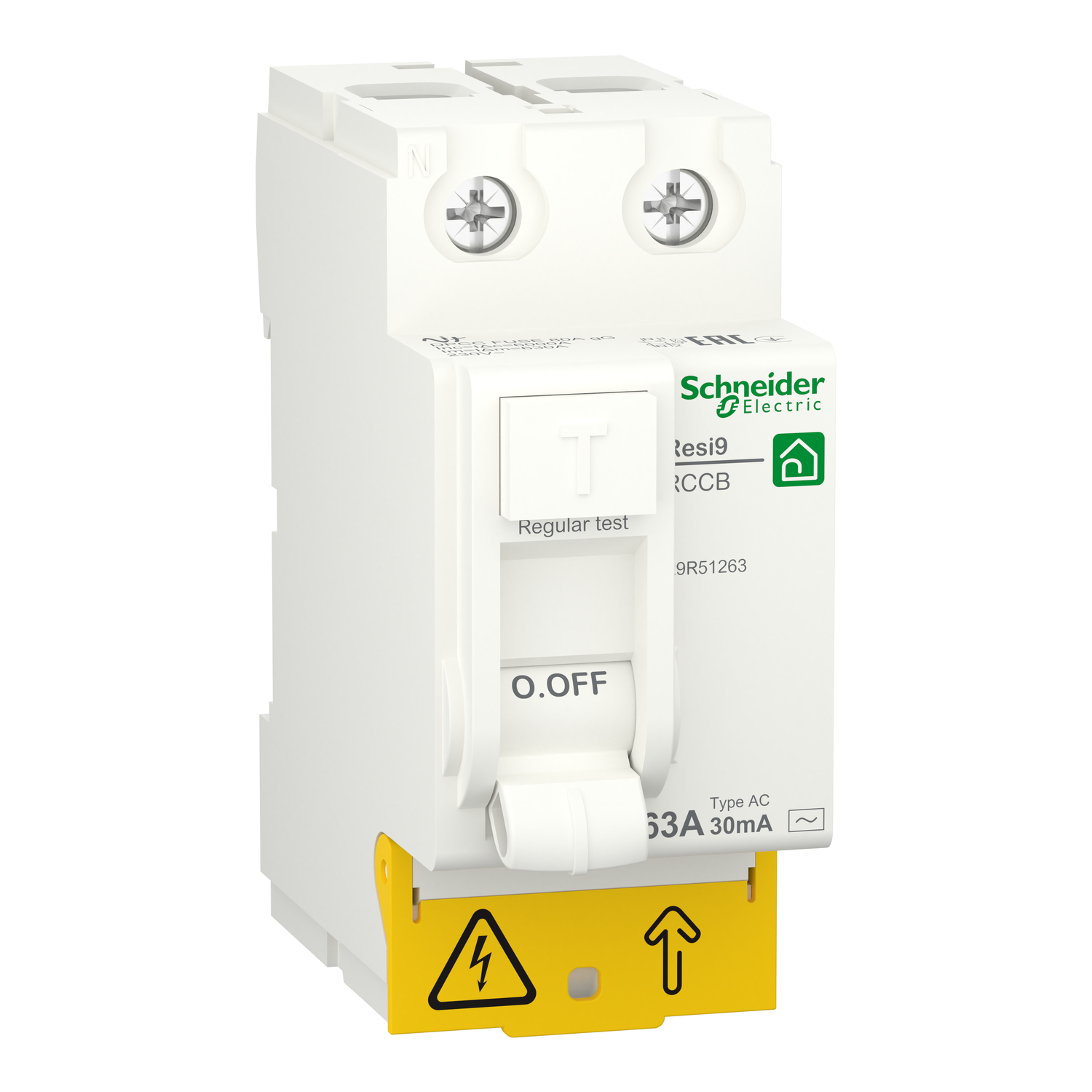

Schneider R9R51263 | Residual current circuit breaker (RCCB), Resi9, 2P, 63A, AC type, 30mA
Schneider R9R51263 | Residual current circuit breaker (RCCB), Resi9, 2P, 63A, AC type, 30mA
Original price was: EGP 42,819.00.EGP 26,976.00Current price is: EGP 26,976.00.
Description
Schneider R9R51263 | Residual current circuit breaker (RCCB), Resi9, 2P, 63A, AC type, 30mA
Technical Specifications R9R51263
-
Product Reference: R9R51263
-
Series: Resi9
-
Device Type: Residual Current Circuit Breaker (RCCB)
-
Number of Poles: 2P (Phase + Neutral)
-
Rated Current (In): 63 A
-
Residual Current Sensitivity (IΔn): 30 mA
-
Type of RCCB: Type AC (for sinusoidal AC leakage currents)
-
Rated Operational Voltage: 230/240 V AC
-
Frequency: 50/60 Hz
-
Tripping Time: ≤ 300 ms (standard)
-
Mounting: DIN rail mountable
-
Terminal Capacity: Up to 25 mm² (rigid cables)
-
Degree of Protection: IP20 (front face)
-
Compliance Standards: IEC/EN 61008-1
Key Features
-
High Current Rating (63A): Suitable for circuits with higher current demands, including large appliances or small sub-distribution boards.
-
30mA Sensitivity: Ensures fast disconnection upon detection of earth leakage, improving protection against electric shock.
-
2-Pole Protection: Provides simultaneous disconnection of phase and neutral for single-phase systems.
-
AC Type Detection: Detects standard sinusoidal AC leakage currents, which covers most residential and light commercial applications.
-
Manual Test Button: Enables routine testing of RCCB operation to ensure continuous safety.
-
Compact and Modular Design: Fits easily into standard distribution boards, especially with other Resi9 components.
-
Quick Installation: DIN rail mounting and user-friendly wiring terminals simplify the installation process.
Applications
The R9R51263 is ideal for use in:
Residential Applications
-
Protection of high-load appliances such as electric ovens, HVAC systems, and electric water heaters
-
General electrical circuits in homes requiring high-amperage earth leakage protection
Light Commercial Installations
-
Offices, shops, and small workshops with moderate power usage
-
Electrical panels supplying multiple circuit groups or large single-phase loads
Renovations and Upgrades
-
Adding safety protection to existing circuits without modifying the load design
-
Improving compliance with modern electrical safety standards
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Resi9 |
|---|---|
| Product or component type | Residual current circuit breaker (RCCB) |
| Poles description | 2P |
| [In] rated current | 63 A |
| Network type | AC |
| Earth-leakage sensitivity | 30 mA |
| earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type AC |
| Rated breaking and making capacity | Im 630 A conforming to EN/IEC 61008 |
| Rated conditional short-circuit current | Inc 6 kA |
| Quality labels | EAC UA TR |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
| Residual current tripping technology | Voltage independent |
| [Ui] rated insulation voltage | 440 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Surge current | 250 A |
| control type | Toggle |
| local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 4 |
| height | 81 mm |
| Width | 36 mm |
| Depth | 73 mm |
| Net weight | 180 g |
| Embedding depth | 44 mm |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | Tunnel type terminals (top or bottom) - 1...35 mm² - rigid Tunnel type terminals (top or bottom) - 1...25 mm² - flexible Tunnel type terminals (top or bottom) - 1...25 mm² - flexible with ferrule |
| Wire stripping length | 15 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| Standards | EN/IEC 61008-1 EN/IEC 61008-2-1 |
|---|---|
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Overvoltage category | III |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 215.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 54 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 12.004 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 432 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 108.032 kg |
