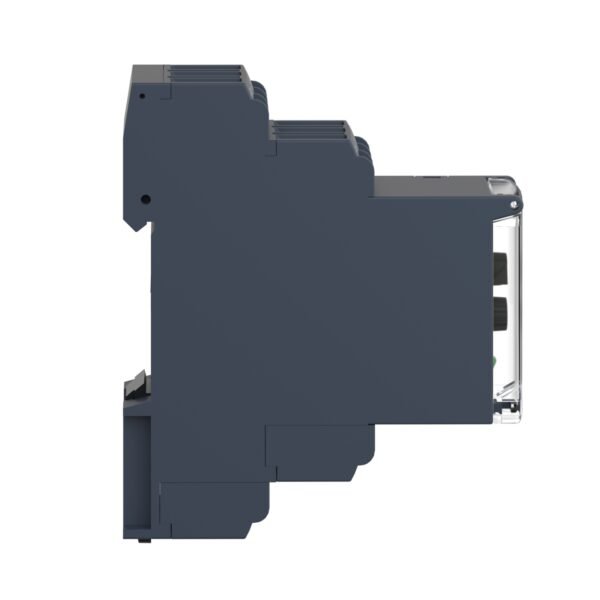

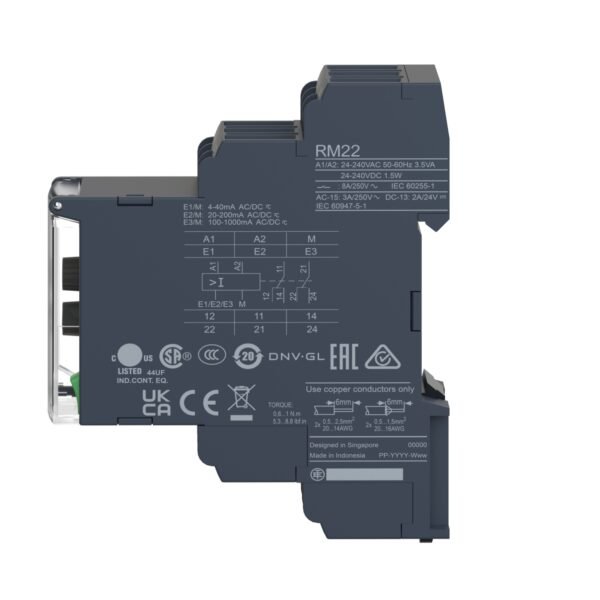

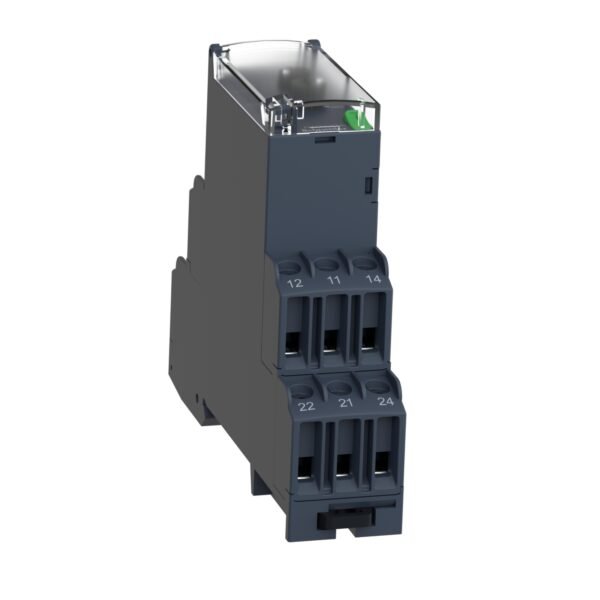

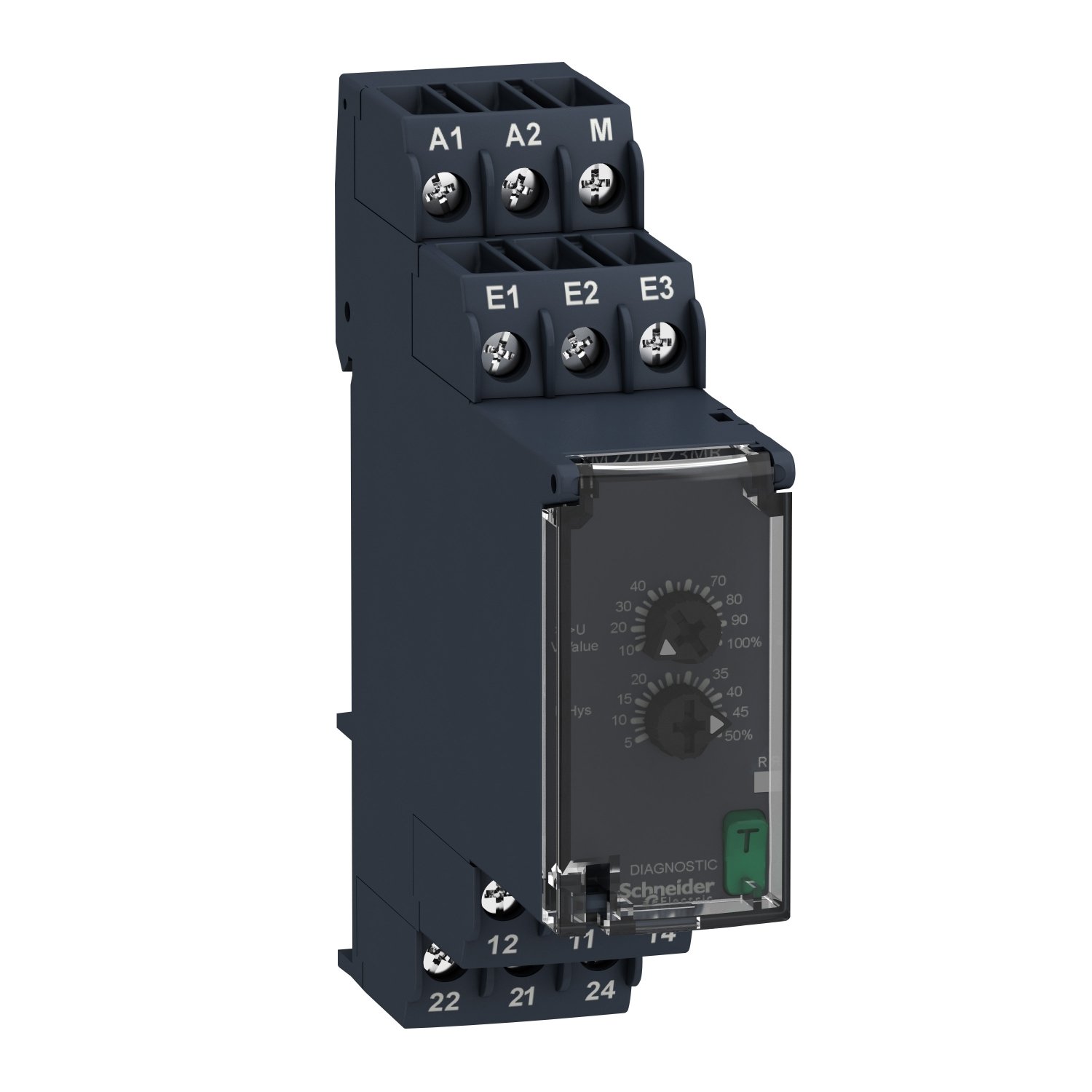

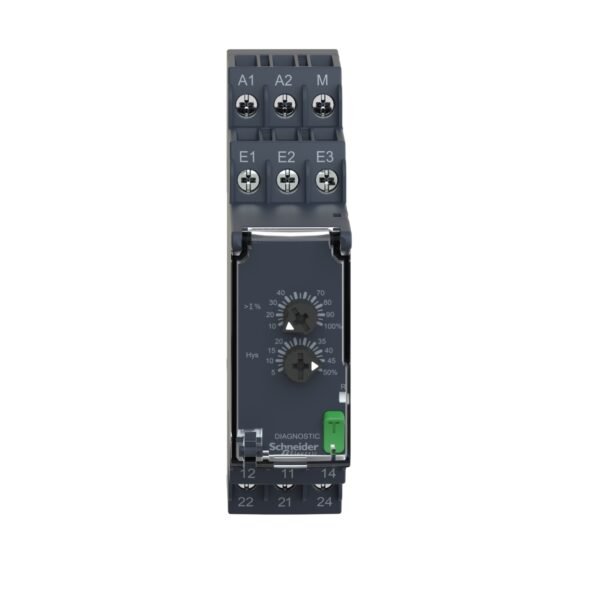

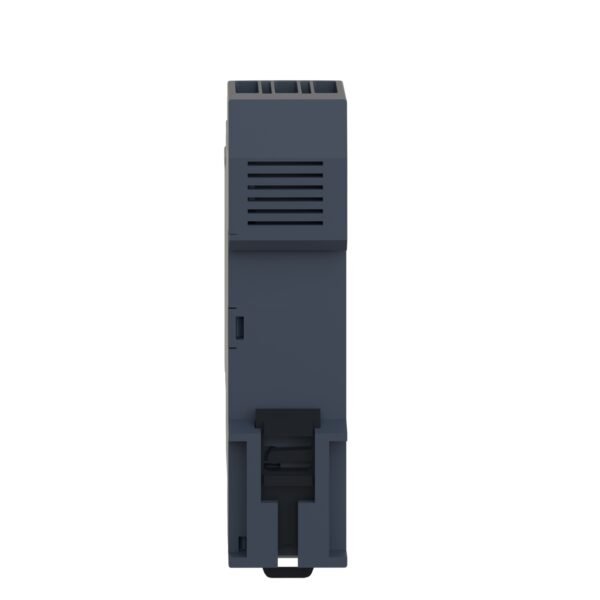

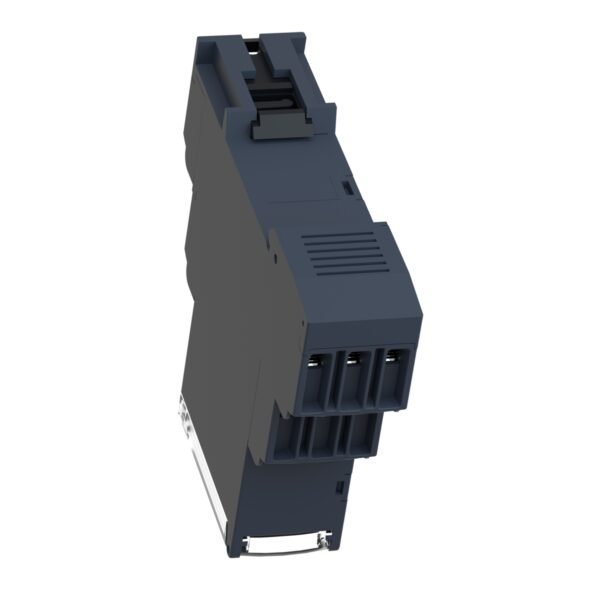

Schneider RM22UA23MR Relay | Overvoltage control relay 15V…500Vac/dc, 2 C/O
Schneider RM22UA23MR Relay
Original price was: EGP 66,429.00.EGP 38,529.00Current price is: EGP 38,529.00.
Description
Schneider RM22UA23MR Relay
Relays play a crucial role in various electrical systems, facilitating the control of circuits by electromechanical switches. Among the myriad of relays available in the market, the Schneider RM22UA23MR Relay stands out for its advanced features and reliability.
Understanding Relays
What is a relay?
A relay is an electromechanical device that operates as a switch, allowing the control of one electrical circuit by another circuit. It typically consists of a coil, armature, spring, and contacts.
Types of relays
Relays come in various types, including electromechanical relays, solid-state relays, thermal relays, and reed relays, each designed for specific applications and environments.
Features of Schneider RM22UA23MR Relay
The Schneider RM22UA23MR Relay boasts several features that make it a preferred choice among professionals:
- Compact design
- Wide input voltage range
- High switching capability
- Long electrical lifespan
- DIN rail mounting for easy installation
- LED indicators for status monitoring
Applications of Schneider RM22UA23MR Relay
The versatility of the Schneider RM22UA23MR Relay makes it suitable for diverse applications, including:
Industrial automation
In industrial settings, the relay is utilized for controlling motors, pumps, heaters, and other electrical devices, enhancing efficiency and safety in manufacturing processes.
Home automation
For residential applications, the relay can be integrated into smart home systems to automate lighting, HVAC systems, and security devices, providing convenience and energy savings to homeowners.
Automotive industry
In automotive applications, the relay is employed for controlling various functions such as headlights, windshield wipers, and power windows, ensuring reliable performance and safety on the road.
Advantages of Using Schneider RM22UA23MR Relay
- Enhanced reliability: The relay offers dependable operation, even in harsh environments.
- Flexible configuration: It can be easily customized to meet specific requirements.
- Cost-effective solution: The long lifespan and low maintenance requirements result in cost savings over time.
- Compatibility: The relay is compatible with a wide range of control systems and protocols.
Installation Process
Precautions
Before installing the Schneider RM22UA23MR Relay, ensure to follow these precautions:
- Turn off power to the circuit to prevent electrical hazards.
- Verify compatibility with existing components and wiring.
- Handle the relay with care to avoid damage to sensitive components.
Step-by-step guide
- Select a suitable location on the DIN rail for mounting the relay.
- Connect the input and output terminals according to the wiring diagram provided by Schneider Electric.
- Secure the relay in place using appropriate mounting hardware.
- Apply power to the circuit and verify proper operation of the relay.
Troubleshooting Common Issues
Despite its reliability, the Schneider RM22UA23MR Relay may encounter occasional issues, such as:
- Faulty connections: Check for loose or damaged wiring connections.
- Overheating: Ensure adequate ventilation around the relay to prevent overheating.
- Coil failure: Test the relay coil for continuity using a multimeter and replace if necessary.
Maintenance Tips
To ensure optimal performance and longevity of the Schneider RM22UA23MR Relay, follow these maintenance tips:
- Regularly inspect the relay for signs of wear or damage.
- Keep the relay and surrounding area clean and free from dust and debris.
- Test the relay periodically to verify proper operation and responsiveness.
Comparison with Other Relays
In comparison to similar relays on the market, the Schneider RM22UA23MR stands out for its superior performance, advanced features, and reliability, making it the preferred choice for professionals in various industries.
Customer Reviews and Testimonials
Customers who have used the Schneider RM22UA23MR Relay praise its reliability, ease of installation, and versatility, making it a top-rated choice among industry professionals.
Conclusion
In conclusion, the Schneider RM22UA23MR Relay offers unmatched reliability, advanced features, and versatility, making it an indispensable component in various industrial, residential, and automotive applications. With its compact design, wide input voltage range, and long electrical lifespan, this relay delivers superior performance and efficiency, ensuring smooth operation and enhanced safety in electrical systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Control Relays |
|---|---|
| Relay type | Voltage control relay |
| Product or component type | Voltage control relay |
| Network number of phases | 1 phase |
| Supply circuit type | DC |
| Relay name | RM22UA |
| Relay monitored parameters | Overvoltage detection |
| time delay | Without |
| Switching capacity in VA | 2000 VA |
| Measurement range | 15...500 V AC/DC |
| Contacts type and composition | 2 C/O |
| Reset time | 1500 ms at maximum voltage |
|---|---|
| Maximum switching voltage | 250 V AC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A AC |
| Supply voltage limits | 20.4…264 V AC/DC |
| Power consumption in VA | 3.5 VA AC |
| Maximum power consumption in W | 1.5 W DC |
| Immunity to microbreaks | 10 ms |
| Resistance across terminals | 150 kOhm at E2-M terminals 300 kOhm at E1-M terminals 500 kOhm at E3-M terminals |
| Output contacts | 2 C/O |
| Hysteresis | 5…50 % adjustable of threshold setting |
| delay at power up | 600 ms |
| Maximum measuring cycle | 100 ms measurement cycle as true rms value |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit |
| Measurement error | < 1 % over the whole range with voltage variation 0.05 %/°C with temperature variation |
| Response time | <= 500 ms |
| Insulation resistance | > 100 MOhm at 500 V DC |
| Overvoltage category | III conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 5 kV during 1.2/50 µs conforming to IEC 60255-27 |
| Insulation | Between supply and measurement |
| Connections - terminals | Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| Utilisation category | AC-15 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 AC-1 conforming to IEC 60947-4-1 DC-1 conforming to IEC 60947-4-1 |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Safety reliability data | MTTFd = 308.2 years B10d = 290000 |
| Contacts material | Cadmium free |
| Control type | With test button |
| Width | 22.5 mm |
| Net weight | 0.11 kg |
| Electromagnetic compatibility | Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 Immunity for industrial environments conforming to IEC 61000-6-2 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Emission standard for industrial environments conforming to IEC 61000-6-4 Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 Conducted and radiated emissions class B group 1 conforming to CISPR 11 Conducted and radiated emissions class B conforming to CISPR 22 |
|---|---|
| Ambient air temperature for operation | -20…50 °C at 60 Hz -20…60 °C at 50 Hz |
| Standards | IEC 60255-1 |
| Product certifications | CE CCC GL RCM UL EAC CSA |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 93…97 % at 25…55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 1 gn (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 0.035 mm (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 0.5 gn (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric test voltage | 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.6 cm |
| Package 1 Width | 8.2 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 121.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.252 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 640 |
| Package 3 Height | 80.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Package 3 Weight | 93.22 kg |
