Schneider RXM3AB1ED Relay: Enhancing Control and Safety

Relays are indispensable components in various electrical systems, facilitating control and safety measures. Among the array of relays available in the market, it stands out for its reliability and efficiency. In this article, we delve into the features, applications, installation guide, troubleshooting, and maintenance tips for it.

Understanding the Functionality of Relays

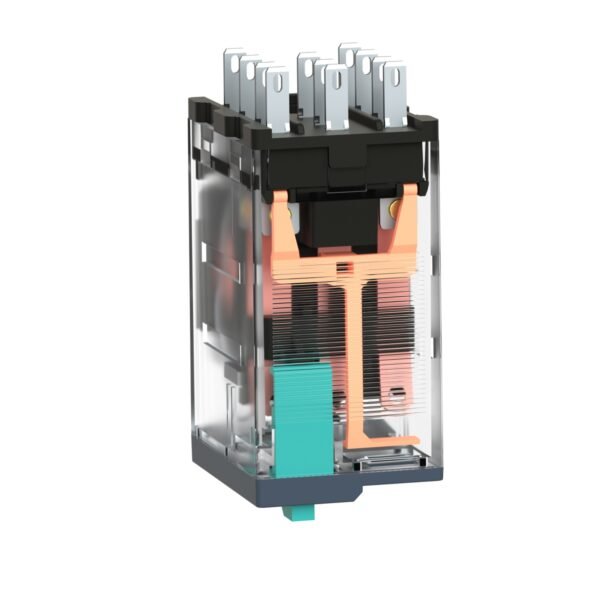

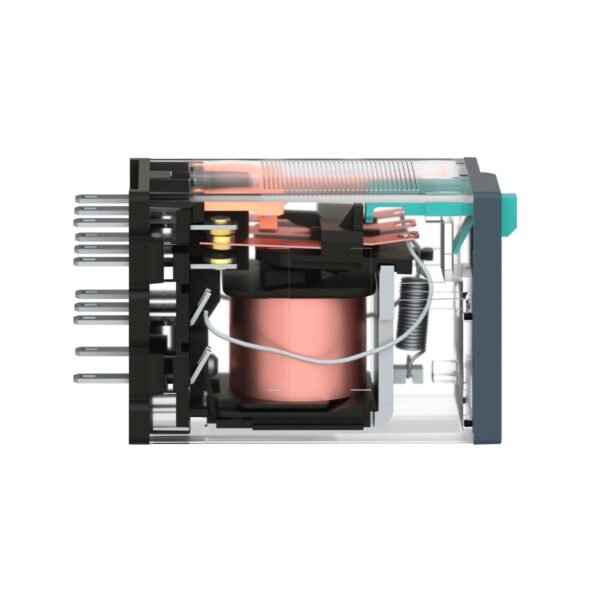

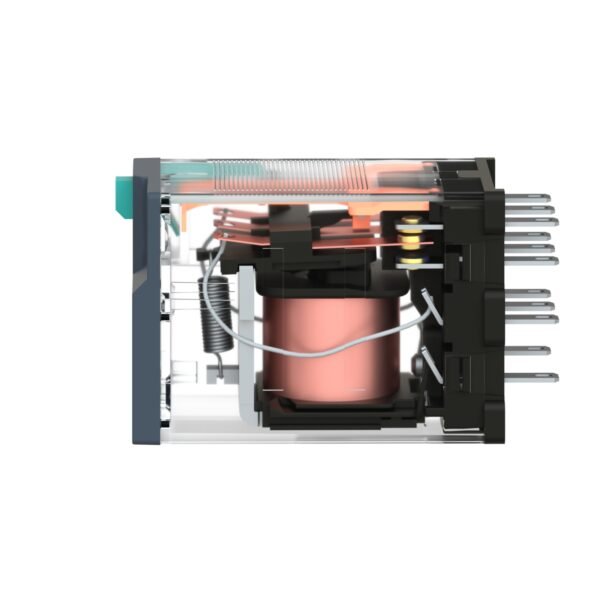

Relays act as electromechanical switches, controlling the flow of electricity within a circuit. They consist of a coil, an armature, and contacts. When an electrical current passes through the coil, it generates a magnetic field, causing the armature to move and close or open the contacts, thereby completing or interrupting the circuit.

Features of Schneider RXM3AB1ED Relay

it boasts several features that set it apart in the market. With a compact design and DIN rail mounting capability, it offers ease of installation in various electrical panels and enclosures. Additionally, its high switching capacity and low power consumption make it ideal for both residential and industrial applications.

Applications of Schneider RXM3AB1ED Relay

The versatility of the Schneider RXM3AB1ED Relay enables its use across a wide range of applications. From HVAC systems and lighting controls to motor starters and power distribution panels, this relay ensures efficient and reliable operation, enhancing safety and control in diverse settings.

Installation Guide for Schneider RXM3AB1ED Relay

Installing it is a straightforward process, thanks to its user-friendly design. Begin by mounting the relay on a DIN rail within the electrical panel. Then, connect the appropriate wires to the input and output terminals, ensuring proper polarity and tight connections. Finally, verify the setup and test the relay to ensure functionality.

Troubleshooting Common Issues

Despite its reliability, users may encounter occasional issues with the Schneider RXM3AB1ED Relay. Common issues include faulty connections, coil failure, and contact welding. To troubleshoot these issues, refer to the manufacturer’s documentation for guidance on diagnostics and troubleshooting procedures.

Maintenance Tips for Longevity

To prolong the lifespan of the Schneider RXM3AB1ED Relay, regular maintenance is essential. Periodically inspect the relay for signs of wear or damage, such as overheating or corrosion. Clean the contacts and terminals as needed, and ensure proper ventilation to prevent overheating.

Comparing Schneider RXM3AB1ED with Other Relays

When comparing the Schneider RXM3AB1ED Relay with other relays on the market, its superior performance, reliability, and cost-effectiveness become evident. While alternative options may offer similar features, the Schneider relay stands out for its exceptional quality and durability.

Customer Reviews and Feedback

Feedback from customers who have used the Schneider RXM3AB1ED Relay further validates its reputation as a top-tier product. Users praise its reliability, ease of installation, and versatility, making it a preferred choice for various applications.

Conclusion

In conclusion, the Schneider RXM3AB1ED Relay emerges as a reliable and efficient solution for electrical control and safety needs. Its advanced features, ease of installation, and wide range of applications make it a valuable asset in both residential and industrial settings. By following the installation guide and maintenance tips provided, users can ensure optimal performance and longevity of this exceptional relay
