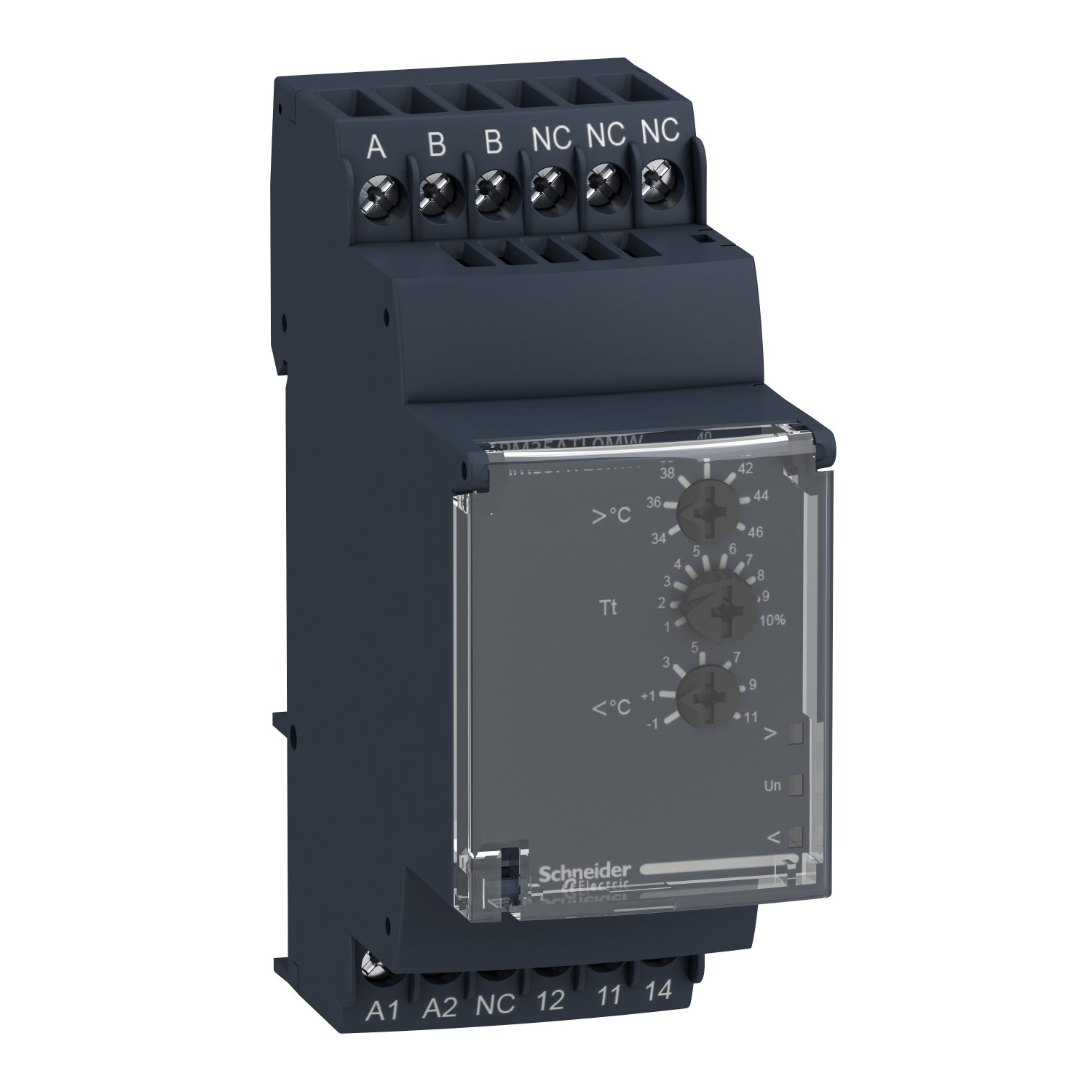

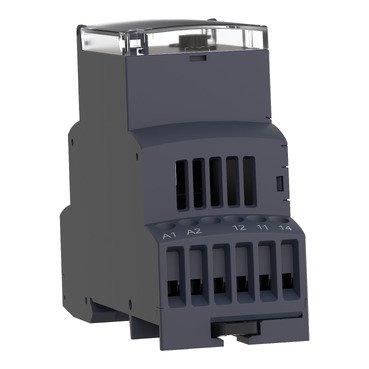

Schneider RM35ATL0MW | temperature control relay, Harmony Control Relays, 5A, 1CO, 24..240V AC DC
Schneider RM35ATL0MW | temperature control relay, Harmony Control Relays, 5A, 1CO, 24..240V AC DC
Original price was: EGP 708,648.00.EGP 389,756.00Current price is: EGP 389,756.00.
Description
Schneider RM35ATL0MW | temperature control relay, Harmony Control Relays, 5A, 1CO, 24..240V AC DC
Technical Specifications
- Model Number: RM35ATL0MW
- Series: Harmony Control Relays
- Relay Type: Temperature control relay
- Contact Configuration: 1 CO (Changeover)
- Rated Current: 5A
- Voltage Range: 24 to 240V AC/DC
- Operating Temperature Range: Suitable for industrial environments with a broad temperature tolerance
- Accuracy: High-precision temperature control for stable performance
- Mounting Type: DIN rail mounting for easy integration into control panels
- Protection Features: Built-in overcurrent and overvoltage protection
- Compliance: Meets industry standards for safety and reliability
Key Features
-
Wide Voltage Range (24 to 240V AC/DC):
- Allows for flexible integration into various electrical systems, whether AC or DC power is used.
-
Precise Temperature Control:
- Provides accurate and consistent temperature regulation, ensuring the safety and performance of temperature-sensitive equipment.
-
High Current Rating (5A):
- The relay can handle currents up to 5A, making it suitable for various industrial and commercial applications.
-
Changeover Contact (1CO):
- The 1CO configuration allows for a changeover between normally open and normally closed contacts, offering flexibility in temperature control circuits.
-
DIN Rail Mounting:
- Designed for easy installation on a DIN rail, reducing setup time and enhancing panel organization.
-
Versatile Applications:
- Suitable for a wide range of industries, including HVAC systems, manufacturing processes, and temperature-sensitive environments.
Applications
- HVAC Systems: Ideal for controlling temperature in heating, ventilation, and air conditioning systems, ensuring optimal performance and efficiency.
- Manufacturing and Industrial Processes: Used in industries where temperature needs to be controlled precisely, such as food processing, chemical manufacturing, and plastics processing.
- Refrigeration: Ensures temperature stability in refrigeration systems, preventing equipment damage and maintaining product quality.
- Laboratories and Testing Equipment: Used to control the temperature of sensitive equipment and ensure accurate testing environments.
- Electrical Panels: Easily integrates into electrical control panels for temperature regulation and monitoring.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony Control Relays |
|---|---|
| Relay Type | Temperature control relays |
| Product or Component Type | Elevator machine room temperature control relay |
| Product Specific Application | For elevator machine rooms and 3-phase supplies |
| Relay name | RM35AT |
| Relay monitored parameters | Undertemperature: -1...11°C Overtemperature: 34...46°C |
| Time delay range | 0.1...10 s adjustable 0...10 % of the full scale value) |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA 5 V DC |
| Maximum power consumption in VA | 3.5 VA AC |
| Utilisation category | AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 DC-14 IEC 60947-5-1 |
| time delay | Adjustable 1...10 s Tt- time delay upon fault |
| Measurement range | +/- 1...46 °C |
| Reset time | 8 s |
|---|---|
| Maximum switching voltage | 250 V AC/DC |
| [Us] rated supply voltage | 24...240 V AC/DC |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Supply voltage limits | 20.4…264 V AC 21.6…264 V DC |
| Maximum power consumption in W | 0.6 W DC |
| Resistance across terminals | 1.33 kOhm temperature |
| Width | 1.4 in (35 mm) |
| Output contacts | 1 C/O |
| Contacts material | Cadmium free |
| Nominal output current | 5 A |
| delay at power up | 0.2 s |
| Measurement accuracy | +/- 2 °C |
| Response time | <= 3.5 s + Tt (in case of temperature fault) <= 3.5 s (on disappearance of fault) |
| Temperature probe type | Pt 100 - 3-wire |
| Installed device | Pt 100 probe cable length <= 10 m |
| Marking | CE : EMC 89/336/EEC CE : 73/23/EEC |
| Overvoltage category | III IEC 60664-1 |
| Insulation resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 > 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V IEC 60664-1 |
| operating voltage tolerance | - 10 % + 10 % Un DC - 15 % + 10 % Un AC |
| Supply frequency | 50/60 Hz +/- 10 % |
| Insulation | Galvanic insulation between supply and measurement |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| local signalling | 1 LED Green power ON 1 LED Yellow correct temperature (high R1) 1 LED Yellow correct temperature (low R2) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Control Type | Without test button |
| Immunity to microbreaks | 10 ms |
|---|---|
| Electromagnetic compatibility | Emission standard for industrial environments IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 Immunity for industrial environments NF EN/IEC 61000-6-2 |
| Standards | IEC 60255-6 NF EN 60255-6 |
| Product Certifications | GOST GL C-tick UL CSA |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -4…122 °F (-20…50 °C) |
| Vibration resistance | 0.35 mm 5…57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 1 gn 57.6…150 Hz)IEC 60068-2-6/IEC 60255-21-1 |
| Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
| IP degree of protection | IP20 IEC 60529 terminals) IP30 IEC 60529 casing) |
| Pollution degree | 3 IEC 60664-1 |
| Dielectric test voltage | 2 kV AC 50 Hz, 1 min |
| Non-dissipating shock wave | 4 kV |
| Category | US10CP222380 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 3389119405164 |
| Returnability | No |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.1 in (8.0 cm) |
| Package 1 Width | 1.8 in (4.6 cm) |
| Package 1 Length | 3.8 in (9.7 cm) |
| Package 1 Weight | 4.5 oz (127.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 11.8 in (30.0 cm) |
| Package 2 Width | 11.8 in (30.0 cm) |
| Package 2 Length | 15.7 in (40.0 cm) |
| Package 2 Weight | 14.842 lb(US) (6.732 kg) |
| Warranty | 18 months |
|---|
