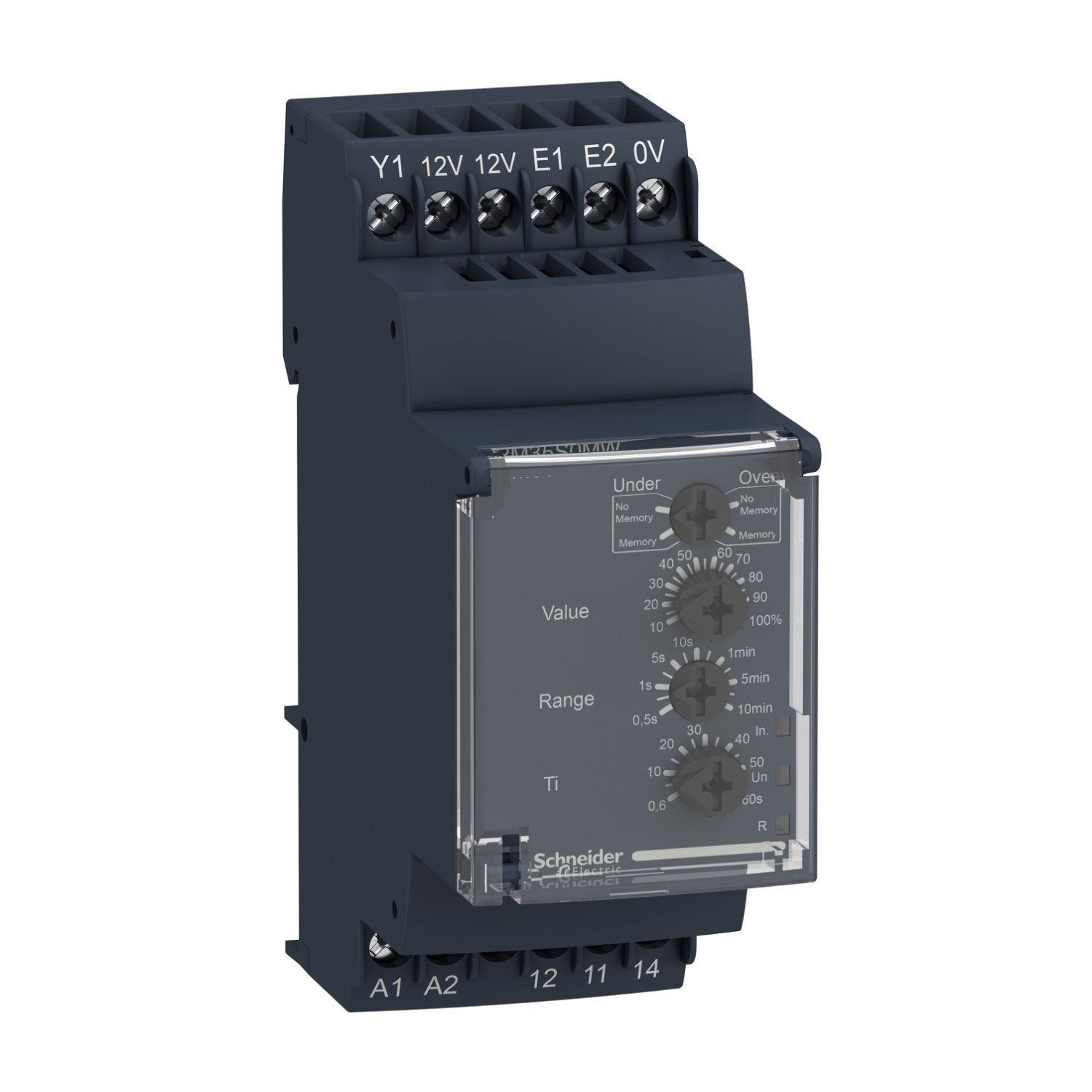

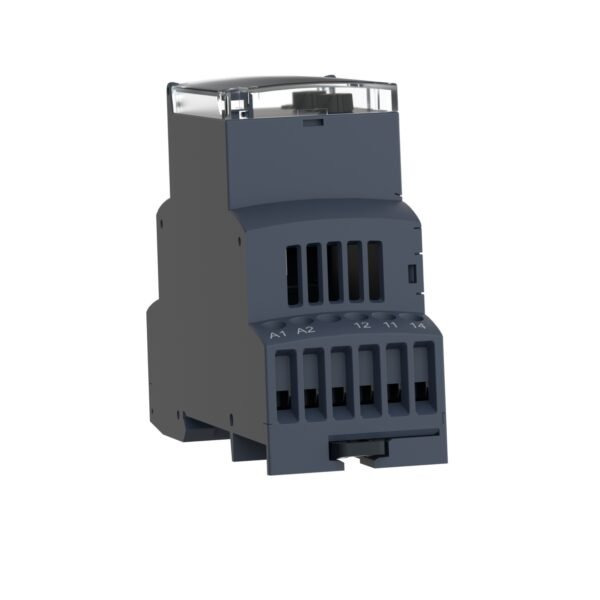

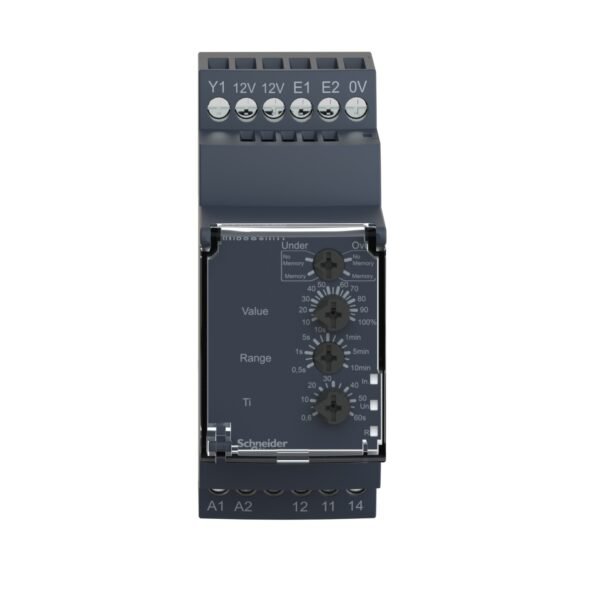

Schneider RM35S0MW Relay | Speed control relay RM35-S – 24..240 V AC/DC
Schneider RM35S0MW Relay
Original price was: EGP 90,997.00.EGP 52,778.00Current price is: EGP 52,778.00.
Description
Schneider RM35S0MW Relay
Relays are crucial components in electrical systems, serving as switches that control the flow of electricity. Among them, it stands out for its reliability and efficiency.
Understanding Relays in Electrical Systems
Before delving into the specifics of it, it’s essential to grasp the role of relays in electrical systems. Relays act as electromechanical switches, controlling high-power circuits with the help of low-power signals.
Types of Relays
- Electromechanical Relays
- Solid-State Relays
- Thermal Relays
Importance of Relays in Industrial Applications
Relays play a vital role in various industrial applications, including automation, power distribution, and safety systems. They ensure seamless operation and protect equipment from damage due to electrical faults.
Features of Schneider RM35S0MW Relay
it boasts several features that set it apart from its counterparts:
- High reliability
- Wide operating voltage range
- Compact design
- Easy installation
Applications of Schneider RM35S0MW Relay
The versatility of it makes it suitable for a wide range of applications, including:
- Motor control
- Temperature monitoring
- Power distribution
- Lighting control
Advantages of Using Schneider RM35S0MW Relay
Using it offers numerous advantages, such as:
- Enhanced safety
- Improved efficiency
- Cost-effectiveness
- Reduced downtime
Installation Process of Schneider RM35S0MW Relay
Installing it is a straightforward process that involves:
- Mounting the relay securely.
- Connecting the input and output terminals.
- Configuring the relay settings according to the application requirements.
Troubleshooting Common Issues with Schneider RM35S0MW Relay
Despite its reliability, users may encounter issues with it, such as:
- False triggering
- Overheating
- Voltage fluctuations
Maintenance Tips for Schneider RM35S0MW Relay
To ensure optimal performance and longevity of it, follow these maintenance tips:
- Regular inspection for signs of wear or damage
- Cleaning the relay contacts
- Calibration of settings as needed
Comparison with Other Relays in the Market
Compared to other relays available in the market, it offers:
- Superior performance
- Advanced features
- Competitive pricing
Real-Life Examples
Numerous industries rely on it for critical operations, including:
- Manufacturing
- Energy
- Transportation
Future Developments in Relay Technology
As technology advances, relay technology continues to evolve, with a focus on:
- Miniaturization
- Enhanced functionality
- Integration with IoT systems
Environmental Impact of Schneider RM35S0MW Relay
it is designed with environmental sustainability in mind, with features such as:
- RoHS compliance
- Energy efficiency
- Longevity and durability
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Control Relays |
|---|---|
| Relay type | Speed control relays |
| Product or component type | Speed control relay |
| Relay name | RM35S |
| Relay monitored parameters | Overspeed Underspeed |
| Time delay range | 0.6...60 s adjustable on energisation delay (tolerance: 0...10 % of the full scale value) |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum power consumption in VA | 5 VA AC |
| Measurement range | 0.05...0.5 s 0.5...5 min 1...10 min 1...10 s 0.5...5 s 0.1...1 s 0.1...1 min |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 DC-14 conforming to IEC 60947-5-1 |
| Measurement range | 0.05...600 s |
| time delay | Adjustable 0.6...60 s Ti- inhibition time delay upon startup |
| rest time in memory mode | 50 ms contact S2 in memory mode on time delay 1 s supply Un in memory mode on time delay |
|---|---|
| Maximum switching voltage | 250 V AC/DC |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Supply voltage limits | 20.4…264 V AC/DC |
| Maximum power consumption in W | 3 W DC |
| Width | 35 mm |
| Output contacts | 1 C/O |
| Contacts material | Cadmium free |
| Nominal output current | 5 A |
| delay at power up | 0.05 s |
| Hysteresis | 5 % of threshold |
| Measurement accuracy | +/- 10 % of the full scale value |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit +/- 0.5 % for time delay |
| Measurement error | +/- 0.1 %/°C with temperature variation < +/- 1 % over the whole range with voltage variation |
| Input frequency | 0.0017…20 Hz |
| Response time | 15 ms max (on crossing the threshold) |
| Polarity | Reversible polarity on DC supply |
| Threshold setting | 10...100 % |
| supply voltage for sensor | 11.5...12.5 V |
| Maximum supply current for sensors | 40 mA for < 24 V AC at 25 °C 40 mA for < 24 V DC at 25 °C 50 mA for 24...240 V AC 50 mA for 24...240 V DC |
| Impulse duration | >= 5 ms high state >= 5 ms low state |
| Input compatibility | 3-wire sensor (E1) PNP or NPN, 12 V, 50 mA NAMUR sensor (E2), 12 V, 1.5 kOhm Voltage input (E1), 0...30 V, 9.5 kOhm, high state >= 4.5 V low state <= 1 V Volt-free contact input (E1), 12 V, 9.5 kOhm |
| Marking | CE : EMC 89/336/EEC CE : 73/23/EEC |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1 > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5 > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1 > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5 > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| operating voltage tolerance | - 15 % + 10 % Un |
| Supply frequency | 50/60 Hz +/- 10 % |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Status LED | 1 LED green for power ON 1 LED yellow for inhibit 1 LED yellow for relay (R) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Control type | Without test button |
| Immunity to microbreaks | 50 ms |
|---|---|
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Standards | NF EN 60255-6 IEC 60255-6 |
| Product certifications | C-Tick GOST UL GL CSA |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 1 gn (f= 57.6…150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric test voltage | 2 kV AC 50 Hz |
| Non-dissipating shock wave | 4 kV |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.4 cm |
| Package 1 Width | 7.4 cm |
| Package 1 Length | 9.4 cm |
| Package 1 Weight | 130.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.181 kg |
| Warranty | 18 months |
|---|
