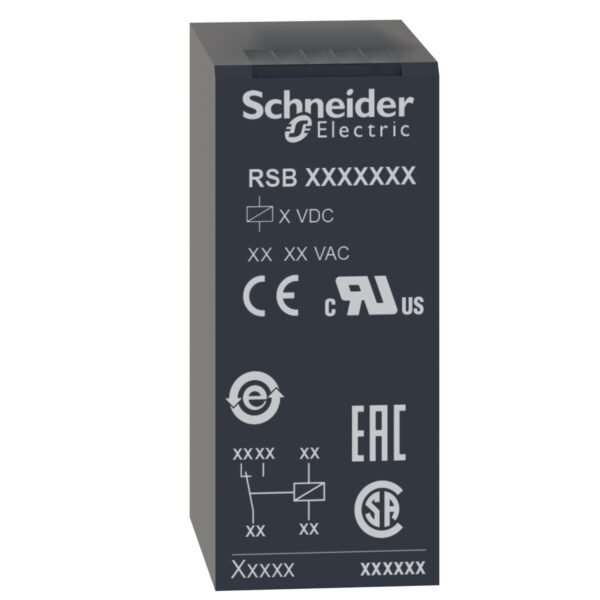

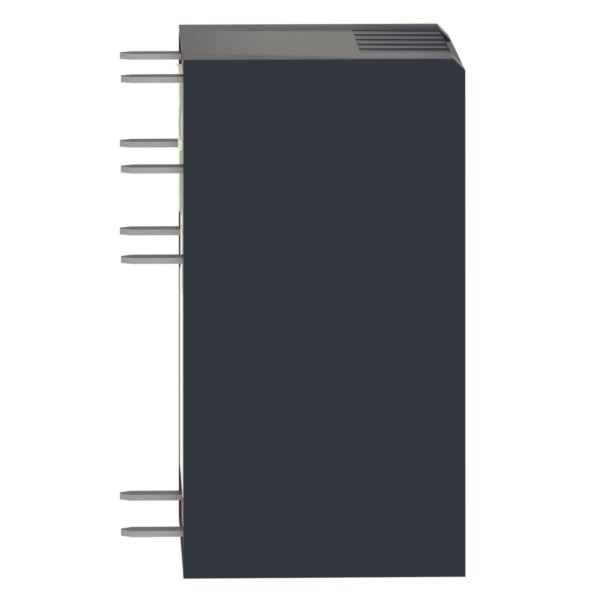

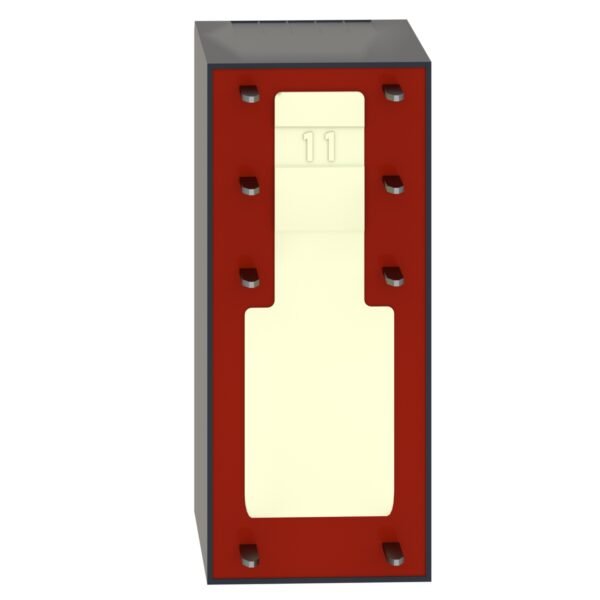

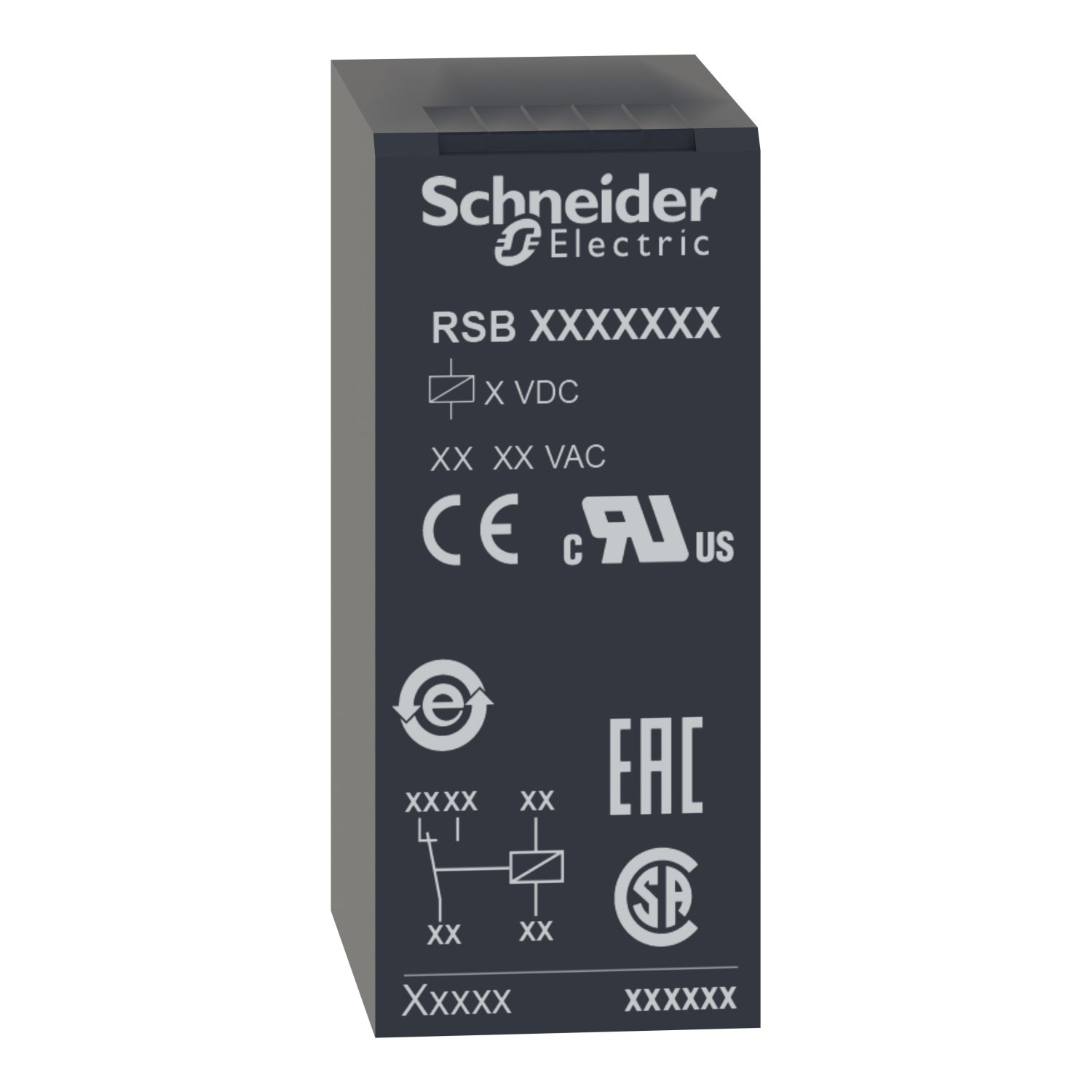

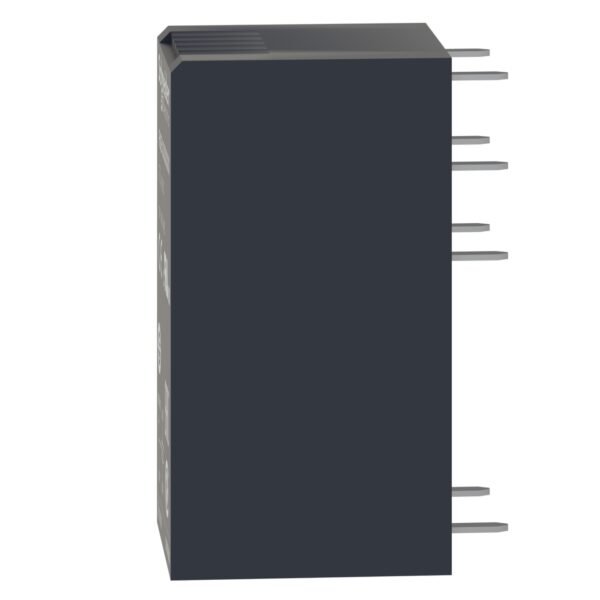

Schneider RSB1A120BD | Interface plug-in relay – Zelio RSB – 1 C/O – 24 V DC – 12 A
Original price was: EGP 3,134.00.EGP 1,818.00Current price is: EGP 1,818.00.
Description
Schneider RSB1A120BD | Interface plug-in relay – Zelio RSB – 1 C/O – 24 V DC – 12 A
Schneider RSB1A120BD | Interface Plug-in Relay – Zelio RSB – 1 C/O – 24 V DC – 12 A
1. Overview
The Schneider RSB1A120BD is a plug-in interface relay from the Zelio RSB series, designed for industrial automation, control panels, and general electrical switching applications. It features 1 changeover (C/O) contact, a 12A switching capacity, and operates at 24V DC control voltage.
2. Key Features
- Model: RSB1A120BD
- Series: Zelio RSB
- Relay Type: Interface plug-in relay
- Number of Contacts: 1 changeover (1C/O)
- Contact Rating: 12A at 250V AC / 30V DC
- Coil Voltage: 24V DC
- Coil Resistance: 855 Ω
- Electrical Durability: 100,000 operations (at full load)
- Mechanical Durability: 10 million operations
- Base Compatibility: Compatible with RSZ socket series
3. Technical Specifications
- Contact Material: Silver alloy (AgNi)
- Operate Time: ≤ 20 ms
- Release Time: ≤ 10 ms
- Dielectric Strength: 2500V AC between coil and contacts
- Ambient Operating Temperature: -40°C to +70°C
- Mounting Type: Plug-in (DIN rail or panel-mounted using compatible sockets)
- LED Indicator: Yes (for coil status indication)
4. Applications
- Industrial Automation & Control Panels
- Motor Starters & Contactors
- Lighting & HVAC Control
- Signal Switching & Power Distribution
- PLC Interfaces & Process Control
5. Benefits
- Compact & Reliable: Space-saving design with high durability
- High Switching Capacity: 12A rating suitable for heavy-duty applications
- Easy Installation: Compatible with RSZ sockets for quick mounting
- LED Indicator: Provides visual feedback for relay operation
- Versatile Applications: Suitable for industrial and commercial use
6. Conclusion
The Schneider RSB1A120BD is a high-performance interface relay, ideal for automation, power switching, and control panel applications. With its 1 C/O contact, 12A rating, and 24V DC coil voltage, it ensures efficient and long-lasting performance in demanding environments.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Interface relay |
| product or component type | Plug-in relay |
| Device short name | RSB |
| Contacts type and composition | 1 C/O |
| Contact operation | Standard |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 12 A at -40…40 °C |
| Status LED | Without |
| Control type | Without push-button |
| Shape of pin | Flat (PCB type) |
|---|---|
| average coil resistance | 1440 Ohm network: AC at 20 °C +/- 10 % |
| [Ue] rated operational voltage | 16.8...36 V DC |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60947 |
| [Uimp] rated impulse withstand voltage | 3.6 kV conforming to IEC 61000-4-5 |
| Contacts material | Silver alloy (AgNi) |
| [Ie] rated operational current | 12 A (AC-1/DC-1) NO conforming to IEC 6 A (AC-1/DC-1) NC conforming to IEC |
| Minimum switching current | 10 mA |
| Maximum switching voltage | 300 V DC conforming to IEC |
| minimum switching voltage | 12 V |
| Maximum switching capacity | 3000 VA/336 W |
| resistive rated load | 12 A at 250 V AC 12 A at 28 V DC |
| Minimum switching capacity | 120 mW at 10 mA, 12 V |
| Operating rate | <= 600 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 30000000 cycles |
| Electrical durability | 100000 cycles, 12 A at 250 V, AC-1 NO 100000 cycles, 6 A at 250 V, AC-1 NC |
| Operating time | 20 ms operating 20 ms reset |
| average coil consumption | 0.45 W DC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| Net weight | 0.014 kg |
| Sale per indivisible quantity | 10 |
| Device presentation | Complete product |
| Dielectric strength | 1000 V AC between contacts 2500 V AC between poles 5000 V AC between coil and contact |
|---|---|
| Standards | CSA C22.2 No 14 UL 508 IEC 61810-1 |
| Product certifications | UL CSA EAC |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | +/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -40…85 °C (DC) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.800 cm |
| Package 1 Width | 2.000 cm |
| Package 1 Length | 2.900 cm |
| Package 1 Weight | 13.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 1.700 cm |
| Package 2 Width | 2.500 cm |
| Package 2 Length | 31.000 cm |
| Package 2 Weight | 142.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 350 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.175 kg |
| Warranty | 18 months |
|---|
