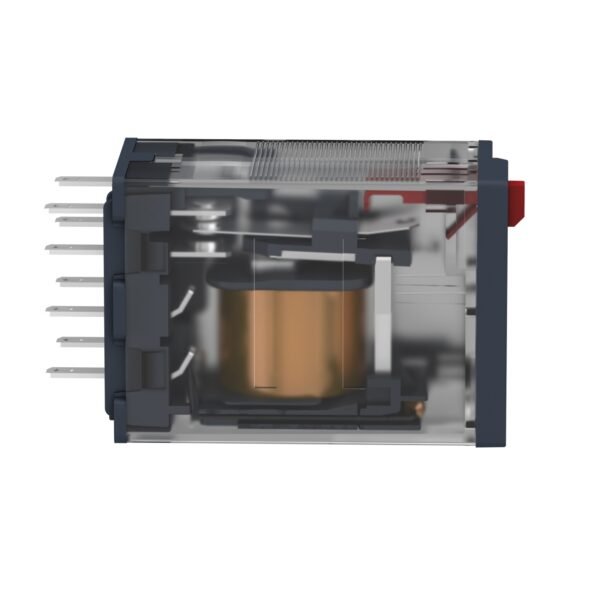

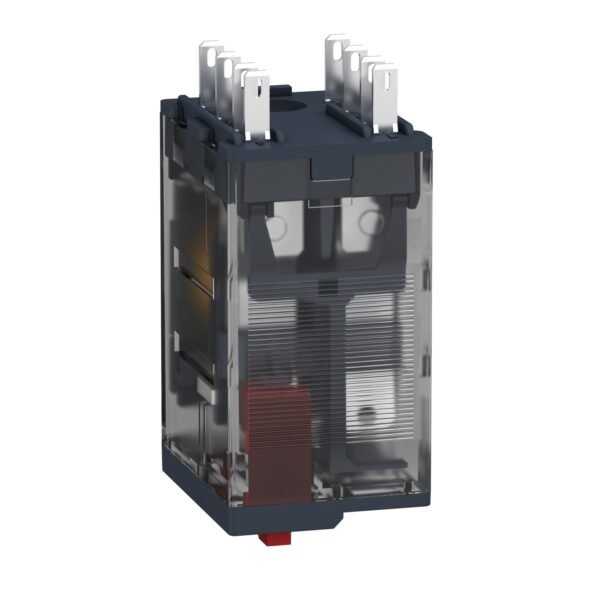

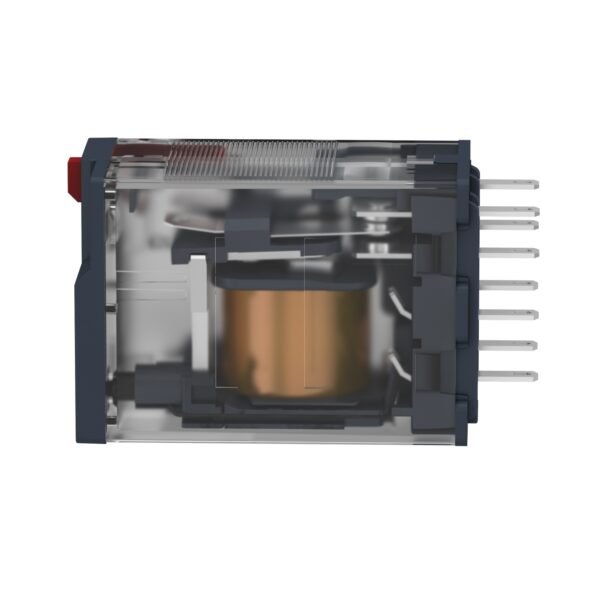

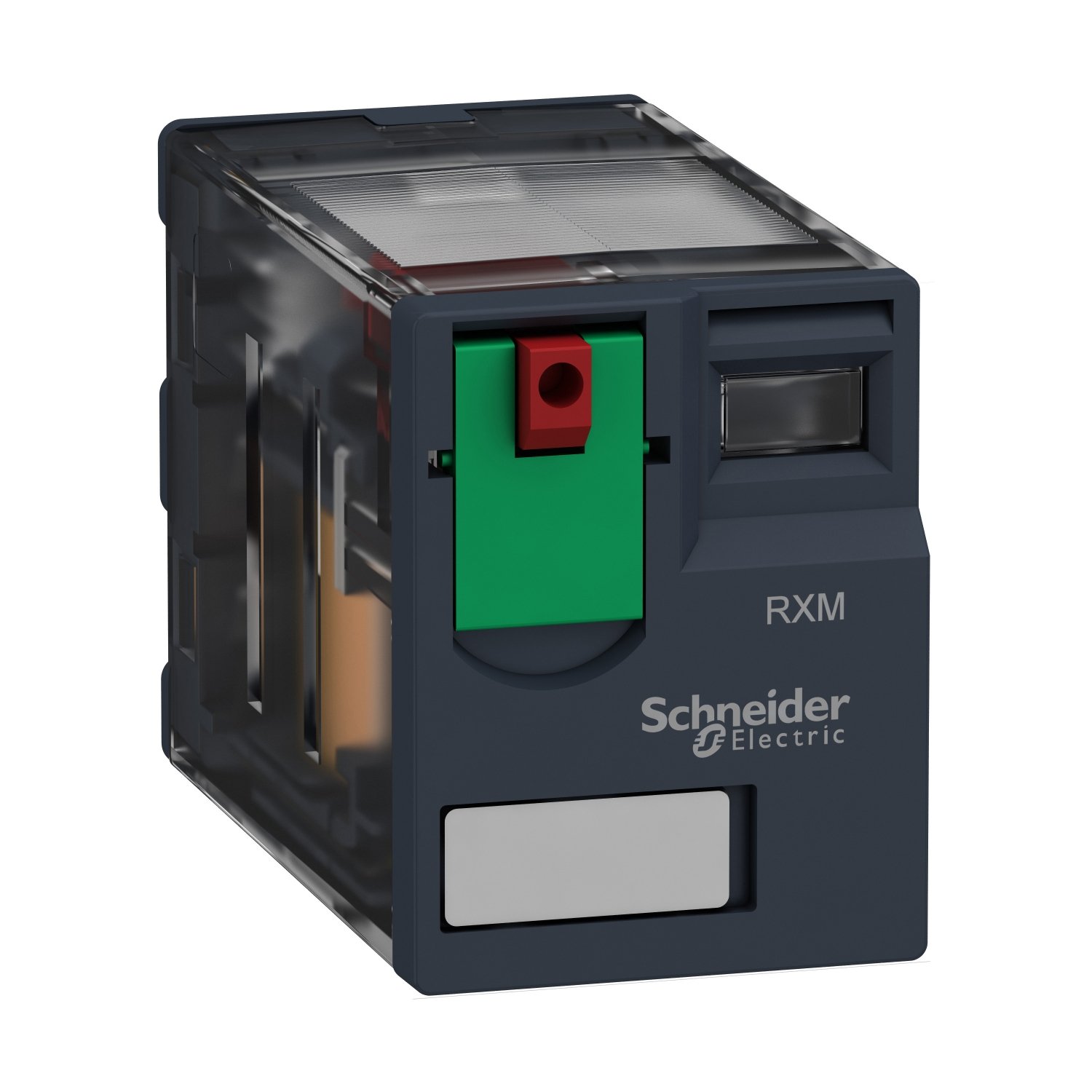

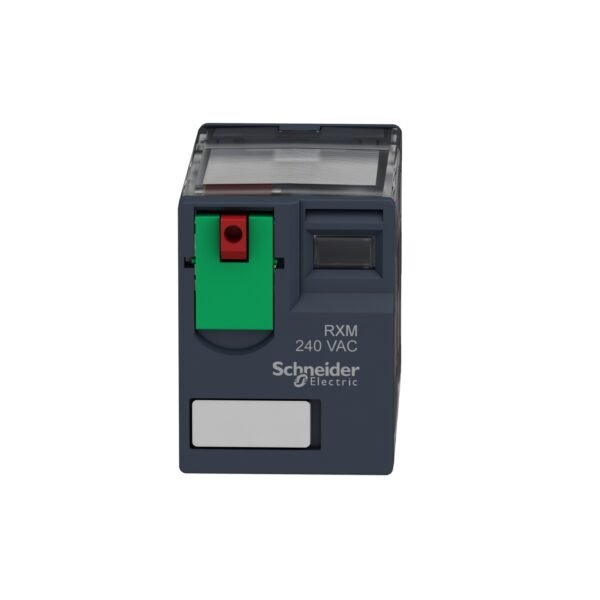

Schneider RXM2AB1E7 | Miniature plug-in relay, 12 A, 2 CO, 48 V AC
Original price was: EGP 3,659.00.EGP 2,122.00Current price is: EGP 2,122.00.
Description
Schneider RXM2AB1E7 | Miniature plug-in relay, 12 A, 2 CO, 48 V AC
Schneider RXM2AB1E7 | Miniature Plug-in Relay, 12 A, 2 CO, 48 V AC Description
In today’s world of electrical engineering and automation, precision and reliability are paramount. One component that plays a crucial role in various applications is the relay. Among the many relays available in the market, the Schneider RXM2AB1E7 stands out as a miniature plug-in relay with impressive specifications.
Introduction
What is Schneider RXM2AB1E7? This relay is designed to handle a current of up to 12 A and features 2 CO (changeover) contacts, making it versatile for different circuit configurations. Its compatibility with 48 V AC systems adds to its usability across a range of applications.
Features
The key features of the Schneider RXM2AB1E7 include its miniature size, allowing it to fit into compact spaces without compromising on performance. With a capacity of 12 A, it can effectively control electrical currents in various setups. The 2 CO configuration provides flexibility in switching between circuits, enhancing its utility. Additionally, its compatibility with 48 V AC ensures seamless integration into compatible systems.
Applications
Where is it used? The Schneider RXM2AB1E7 finds applications in industrial control systems, automation equipment, and electrical panels where reliable switching is crucial for operational efficiency.
Benefits
The advantages of using RXM2AB1E7 include its space-saving design, high current capacity, versatile contact configuration, and compatibility with 48 V AC systems. These features combine to offer a reliable and efficient solution for electrical control needs.
Installation
How to install? The installation process for the RXM2AB1E7 is straightforward, thanks to its plug-in design. It can be easily integrated into existing setups with minimal effort, reducing downtime during installation.
Maintenance
Tips for maintenance include regular inspection of connections, ensuring proper voltage compatibility, and following manufacturer guidelines for optimal performance and longevity.
Comparison
When compared with similar relays in its class, the Schneider RXM2AB1E7 stands out for its compact size, high capacity, and versatile configuration, making it a preferred choice for many applications.
Customer Reviews
Feedback from users highlights the reliability, durability, and performance of the RXM2AB1E7, reinforcing its reputation as a quality relay in the industry.
Conclusion
In conclusion, the Schneider RXM2AB1E7 miniature plug-in relay with its 12 A capacity, 2 CO configuration, and 48 V AC compatibility offers a reliable and efficient solution for various electrical control needs. Its compact design, coupled with high performance, makes it a standout choice in the market.
FAQs
- Can the RXM2AB1E7 handle higher currents than 12 A?
- Is the relay compatible with DC systems as well?
- What are the dimensions of the RXM2AB1E7?
- Does Schneider provide warranty coverage for this relay?
- Where can I purchase the RXM2AB1E7 relay?
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Miniature |
| product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 48 V AC 50/60 Hz |
| Status LED | Without |
| Control type | Lockable test button |
| Utilisation coefficient | 20 % |

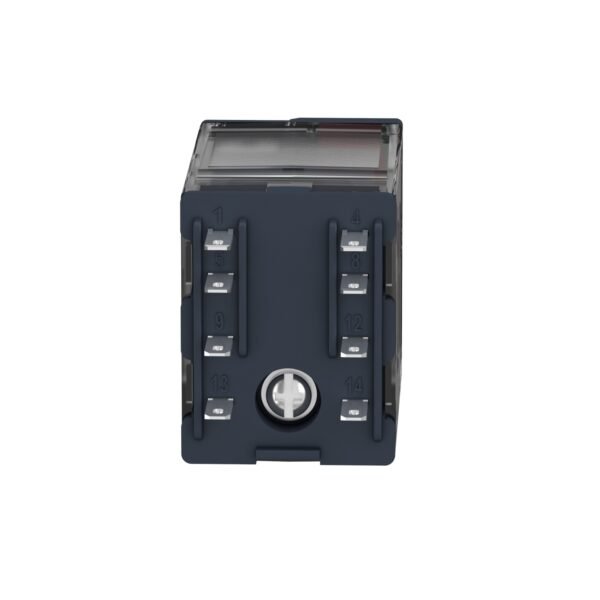

| Shape of pin | Flat |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Contacts material | AgNi |
| [Ie] rated operational current | 12 A at 28 V (DC) NO conforming to IEC 12 A at 250 V (AC) NO conforming to IEC 6 A at 28 V (DC) NC conforming to IEC 6 A at 250 V (AC) NC conforming to IEC 12 A at 28 V (DC) conforming to UL 12 A at 277 V (AC) conforming to UL |
| Continuous output current | 10 A |
| Maximum switching voltage | 250 V conforming to IEC |
| resistive rated load | 12 A at 250 V AC 12 A at 28 V DC |
| Maximum switching capacity | 3000 VA/336 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| average coil consumption in VA | 1.2 at 60 Hz |
| Average consumption | 1.2 VA at 60 Hz |
| Drop-out voltage threshold | >= 0.15 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 710 Ohm at 20 °C +/- 15 % |
| Rated operational voltage limits | 38.4...52.8 V AC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| net weight | 0.037 kg |
| Device presentation | Complete product |
| Dielectric strength | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation |
|---|---|
| Product certifications | UL Lloyd's CE CSA GOST IECEE CB Scheme |
| Standards | IEC 61810-1 UL 508 CSA C22.2 No 14 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gn for in operation 30 gn for not operating |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.1 cm |
| Package 1 Width | 2.2 cm |
| Package 1 Length | 5 cm |
| Package 1 Weight | 37 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3 cm |
| Package 2 Width | 10.2 cm |
| Package 2 Length | 12.5 cm |
| Package 2 Weight | 394 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 15 cm |
| Package 3 Width | 15 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 4.978 kg |
| Warranty | 18 months |
|---|
