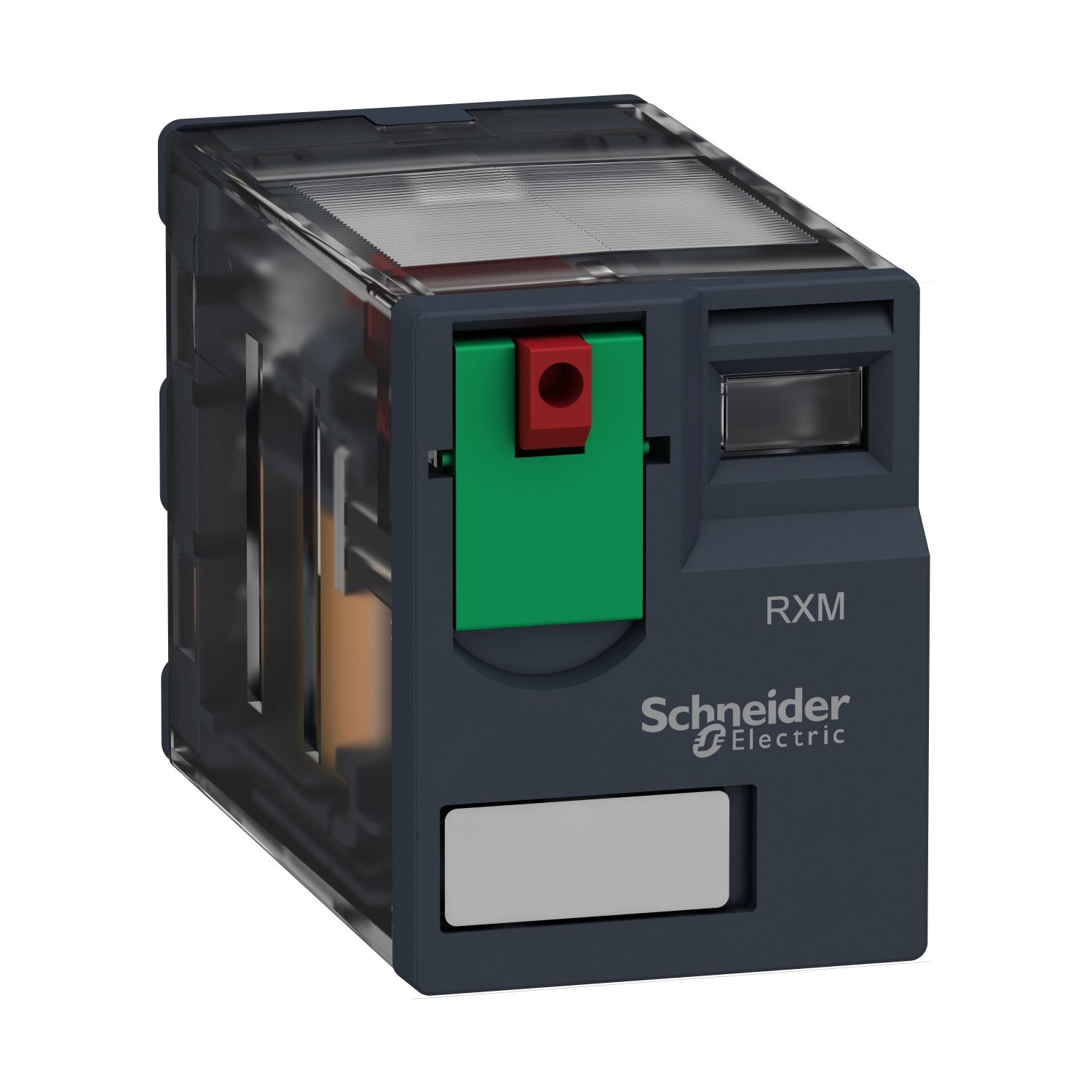

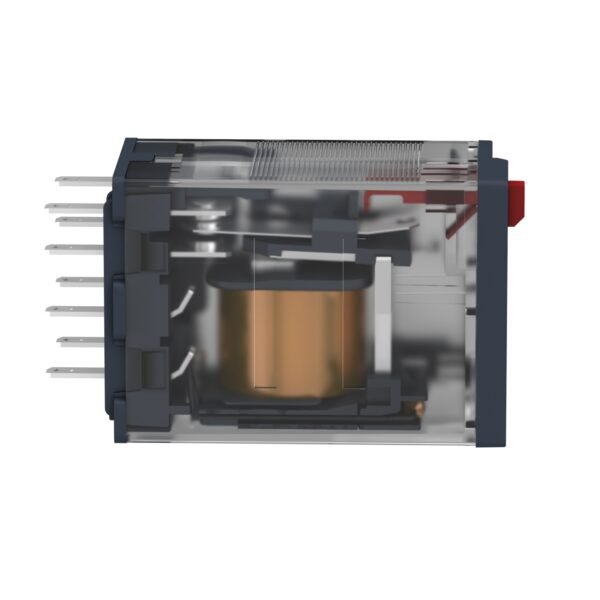

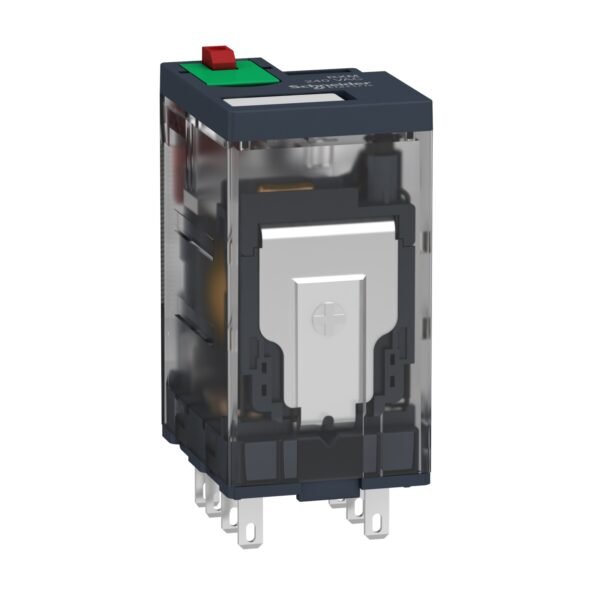

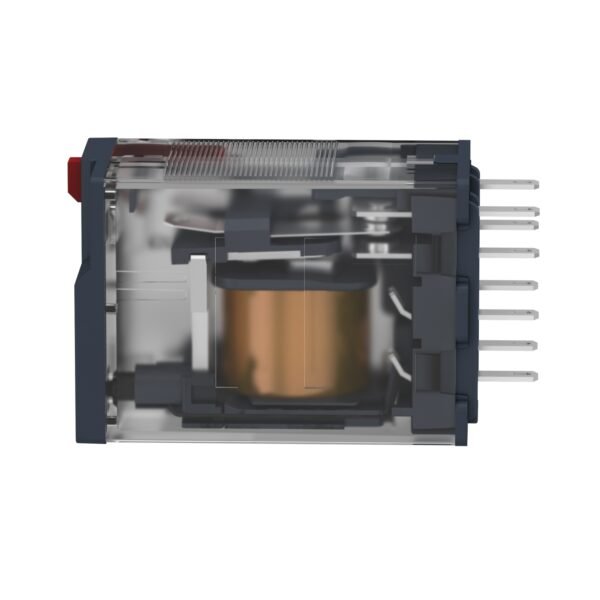

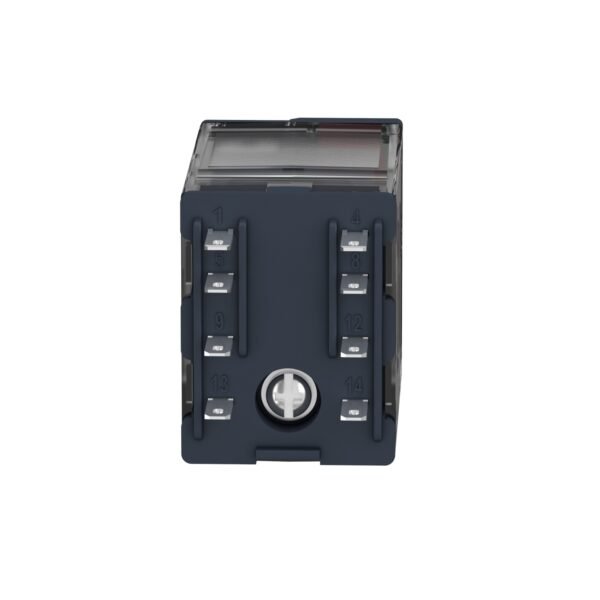

Schneider RXM4AB1P7 | Miniature plug-in relay, 6 A, 4 CO, 230 V AC
Original price was: EGP 3,658.00.EGP 2,122.00Current price is: EGP 2,122.00.
Description
Schneider RXM4AB1P7 | Miniature plug-in relay, 6 A, 4 CO, 230 V AC
Schneider RXM4AB1P7 | Miniature plug-in relay, 6 A, 4 CO, 230 V AC description
In today’s technological landscape, efficient electrical components play a pivotal role in various industries. One such component is the Schneider RXM4AB1P7 miniature plug-in relay, renowned for its reliability and versatility. Let’s delve into the details of this innovative relay.
Introduction
The Schneider RXM4AB1P7 is a miniature plug-in relay designed to handle currents up to 6 A and operate at 230 V AC. Its compact size and robust construction make it a preferred choice for numerous applications across industries.
Specifications
Voltage and Current Capacity
This relay can efficiently manage voltages up to 230 V AC, making it suitable for a wide range of electrical systems. With a current capacity of 6 A, it ensures reliable performance under varying load conditions.
Features
Plug-in Design
The plug-in design of the RXM4AB1P7 relay facilitates easy installation and replacement, reducing downtime and enhancing operational efficiency.
Applications
Industrial Use
This relay finds extensive applications in industrial setups, including control panels, machinery, and automation systems, due to its high-performance capabilities and durability.
Advantages
Compact Size
Despite its robust capabilities, the RXM4AB1P7 relay maintains a compact size, making it suitable for installations where space is limited.
Installation Process
The installation process for this relay is straightforward, following a plug-and-play mechanism that minimizes setup time and ensures quick integration into existing systems.
Maintenance Tips
Regular maintenance is crucial for optimal relay performance. Periodic cleaning and inspection of the RXM4AB1P7 relay can help identify any issues early on and prevent unexpected failures.
Troubleshooting Tips
In case of any issues, such as relay malfunction or connectivity problems, referring to the manufacturer’s troubleshooting guide can assist in resolving common issues efficiently.
Comparison
When compared to similar relays in the market, the Schneider RXM4AB1P7 stands out for its combination of performance, reliability, and compact design, making it a preferred choice for many professionals.
Customer Reviews
Positive feedback from users highlights the reliability and long-term performance of the Schneider RXM4AB1P7 relay, reinforcing its reputation as a dependable electrical component.
Conclusion
In conclusion, the Schneider RXM4AB1P7 miniature plug-in relay offers a blend of robustness, efficiency, and ease of installation, making it an ideal choice for diverse industrial applications.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Miniature |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 4 C/O |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Status LED | Without |
| Control type | Lockable test button |
| Utilisation coefficient | 20 % |
| Shape of pin | Flat |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs |
| Contacts material | AgNi |
| [Ie] rated operational current | 3 A at 28 V (DC) NC conforming to IEC 3 A at 250 V (AC) NC conforming to IEC 6 A at 28 V (DC) NO conforming to IEC 6 A at 250 V (AC) NO conforming to IEC 6 A at 277 V (AC) conforming to UL 8 A at 30 V (DC) conforming to UL |
| Continuous output current | 5 A |
| Maximum switching voltage | 250 V conforming to IEC |
| resistive rated load | 6 A at 250 V AC 6 A at 28 V DC |
| Maximum switching capacity | 1500 VA/168 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| average coil consumption in VA | 1.2 at 60 Hz |
| Average consumption | 1.2 VA at 60 Hz |
| Drop-out voltage threshold | >= 0.15 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 15000 Ohm at 20 °C +/- 15 % |
| Rated operational voltage limits | 184...253 V AC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| CAD overall height | 79 mm |
| CAD overall depth | 78.45 mm |
| Net weight | 0.037 kg |
| Device presentation | Complete product |
| Dielectric strength | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation |
|---|---|
| Product certifications | UL Lloyd's CE CSA GOST IECEE CB Scheme |
| Standards | IEC 61810-1 CSA C22.2 No 14 UL 508 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gn for in operation 30 gn for not operating |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 2.600 cm |
| Package 1 Length | 4.800 cm |
| Package 1 Weight | 35.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.200 cm |
| Package 2 Width | 10.300 cm |
| Package 2 Length | 12.500 cm |
| Package 2 Weight | 378.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.566 kg |
| Warranty | 18 months |
|---|
