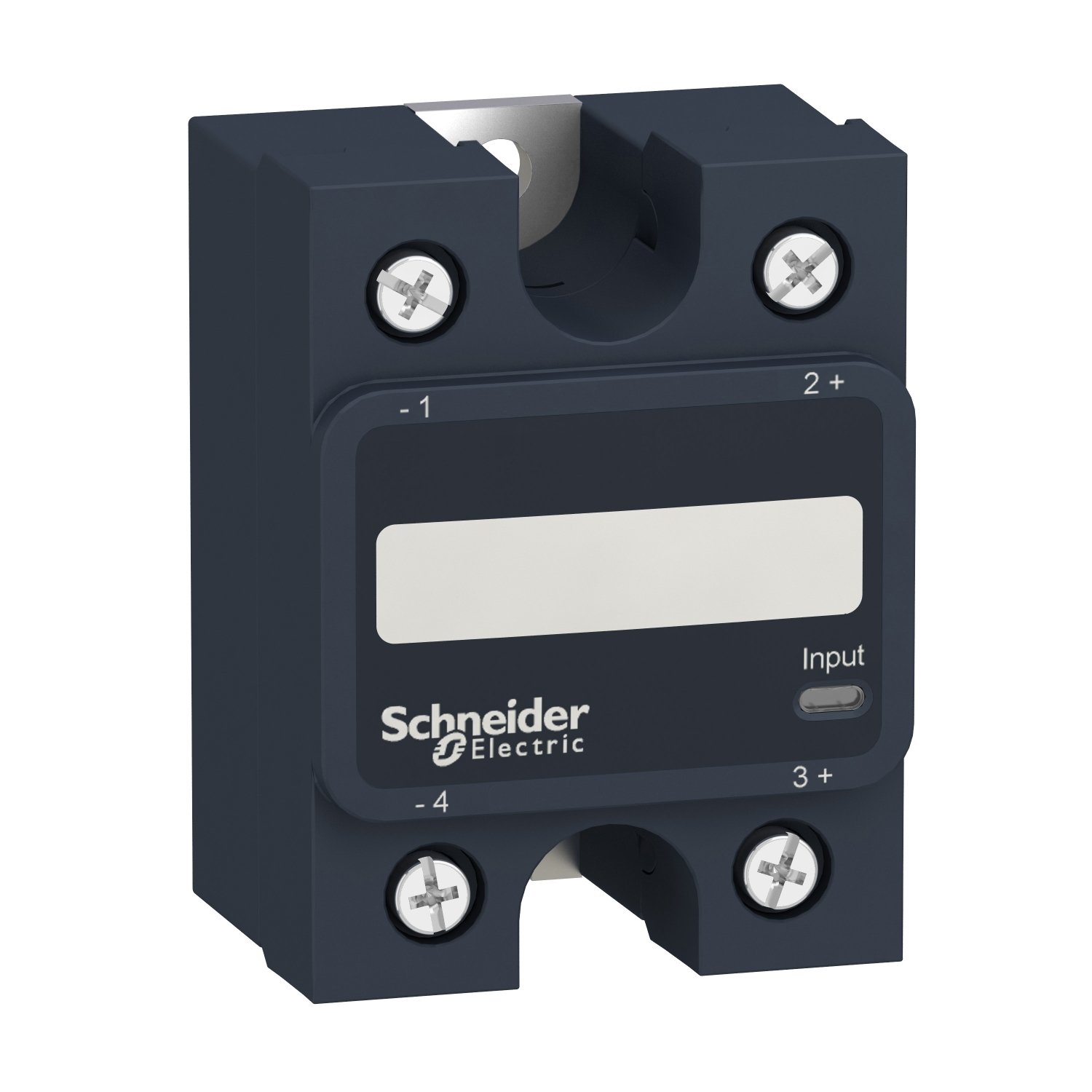

Schneider SSP1A150BD | solid state relay – panel mounting – input 3-32V DC, output 24-300 V AC, 50A

Technical Specifications:

1. Input Voltage Range: The SSP1A150BD accepts an input voltage range of 3-32V DC, allowing it to be driven by various control systems, including PLCs, microcontrollers, and other DC-powered control devices. This broad input range offers flexibility in integration into existing systems.

2. Output Voltage Range: The relay can switch an output voltage range of 24-300V AC, making it compatible with most standard AC systems in industrial environments. This range allows for the control of a variety of AC-powered devices, such as motors, heating elements, and lighting systems.

3. Current Rating: The SSP1A150BD is capable of handling up to 50A of current, providing substantial power control for high-demand applications. This high current rating ensures reliable operation in environments where high power loads need to be managed.

4. Panel Mounting: The relay is designed for panel mounting, making it easy to integrate into existing control panels or systems. This mounting type ensures secure installation and simplifies maintenance, providing long-term reliability and ease of access.

5. Zero-Crossing Detection: The SSP1A150BD utilizes zero-crossing detection technology, which allows for more efficient switching by turning the relay on or off when the AC waveform crosses zero voltage. This minimizes electrical noise and reduces stress on the components, leading to longer relay life and smoother operation.

6. High Efficiency: As a solid-state relay, the SSP1A150BD has no moving parts, which enhances its durability and reduces the risk of wear and tear compared to traditional mechanical relays. This results in a higher level of efficiency and reliability, especially in demanding environments.

7. Thermal Management: The relay is designed with efficient thermal management, ensuring that heat generated during operation is dissipated effectively. This helps maintain optimal operating temperatures, preventing overheating and ensuring long-term reliability.

8. LED Indicator: The relay is equipped with an LED indicator that provides a visual indication of the relay’s operating status, making it easier for users to monitor the system’s performance.

Features:

1. Wide Input Voltage Range: The 3-32V DC input range offers versatility in integration with various DC control systems. This flexibility makes the relay suitable for use with a variety of automation and control devices.

2. High Output Power: With an output range of 24-300V AC and a 50A current rating, the SSP1A150BD is capable of controlling large loads, making it suitable for industrial heating systems, motors, and other high-power AC equipment.

3. Panel Mounting: The relay is designed for easy panel mounting, ensuring secure and straightforward installation in control panels, machinery, and other enclosures.

4. Zero-Crossing Technology: The inclusion of zero-crossing detection ensures efficient switching and reduces electrical noise, prolonging the life of the relay and improving system performance.

5. Solid-State Technology: As a solid-state relay, the SSP1A150BD has no moving parts, offering higher reliability, faster switching speeds, and longer operational life compared to traditional electromechanical relays.

6. LED Status Indicator: The LED indicator allows for easy monitoring of the relay’s operation, providing users with immediate feedback on the system’s status.

7. Thermal Management: The efficient thermal management system ensures that the relay operates within optimal temperature ranges, preventing overheating and improving its overall performance.

8. Compact and Durable: The relay is designed to be compact yet durable, making it suitable for use in demanding environments where space and reliability are critical.

Applications:

The Schneider SSP1A150BD solid-state relay is suitable for a wide range of applications where reliable AC load switching is required, including:

• Heating Systems: It can be used in industrial heating applications, such as controlling heating elements in furnaces, ovens, and industrial process heating.

• Motor Control: The relay is ideal for switching high-power AC motors, commonly found in machinery, pumps, and conveyor systems.

• Lighting Control: Suitable for controlling industrial lighting systems, providing reliable switching with no mechanical wear.

• Temperature Control: It can be used in temperature control systems, where precise and reliable switching of heating and cooling elements is required.

• Automation Systems: The SSP1A150BD is ideal for use in automated systems, where solid-state relays are preferred due to their fast response times and higher reliability compared to mechanical relays.

• AC Power Switching: This SSR can be used to control any AC-powered device in industrial environments, such as fans, compressors, and other high-power equipment.
