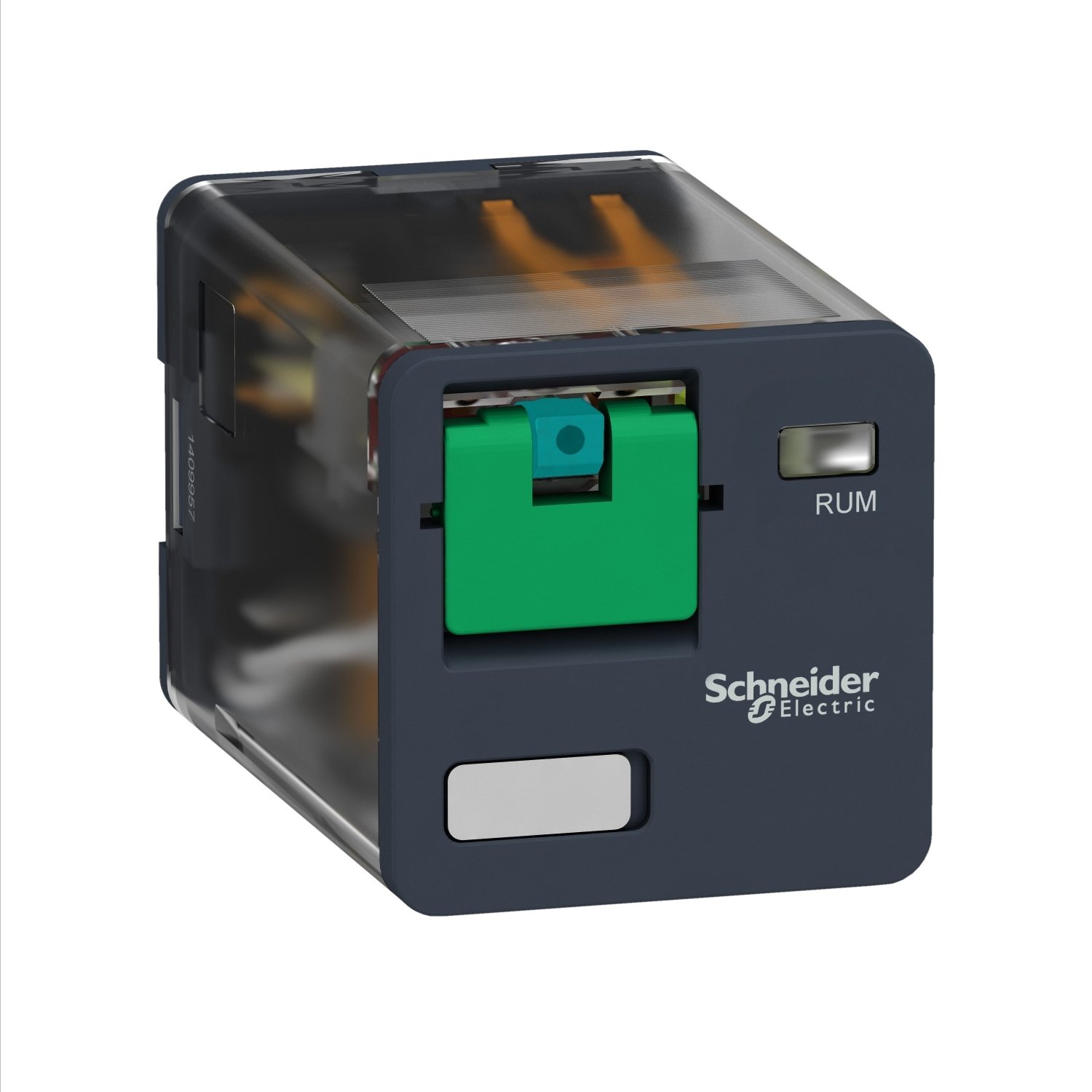

Schneider RUMC31JD | Universal plug-in relay, 10 A, 3 CO, 12 V DC
Schneider RUMC31JD | Universal plug-in relay, 10 A, 3 CO, 12 V DC
Original price was: EGP 826.19.EGP 454.41Current price is: EGP 454.41.
Description
Schneider RUMC31JD | Universal plug-in relay, 10 A, 3 CO, 12 V DC
Schneider RUMC31JD Description
The Schneider Electric RUMC31JD is a part of the Harmony series of universal plug-in relays. It is designed for general-purpose applications, offering reliable switching capabilities and ease of use. This relay is known for its robust construction and flexibility, making it suitable for various industrial and commercial applications.
Key Features
- Universal Compatibility: Designed to work with a wide range of control voltages and loads, making it a versatile choice for different applications.
- High Reliability: Features high-quality contacts and components to ensure long-lasting performance and reliable switching.
- Plug-in Design: The plug-in configuration allows for easy installation and replacement, reducing downtime and simplifying maintenance.
- Compact Size: The compact design saves space in control panels, making it ideal for installations with limited space.
- Status Indicator: Equipped with a mechanical indicator to show the relay status, facilitating easy troubleshooting and maintenance.
- Wide Operating Range: Capable of operating over a broad range of temperatures and environmental conditions, enhancing its suitability for various settings.
Technical Specifications
- Contact Configuration: SPDT (Single Pole Double Throw)
- Coil Voltage: 24V DC
- Contact Rating: 10A at 250V AC / 30V DC
- Mechanical Life: 10 million operations
- Electrical Life: 100,000 operations at full load
- Mounting Type: Plug-in
- Standards Compliance: IEC 61810, UL, CSA, and CE
Applications
- Industrial Automation: Suitable for use in automated control systems, providing reliable switching for various control circuits.
- Building Management Systems: Ideal for use in HVAC, lighting, and security systems to manage and control electrical loads.
- Machine Control: Used in machinery to control motors, pumps, and other electrical devices, ensuring safe and efficient operation.
- Process Control: Employed in process industries to manage and control different stages of production, enhancing operational efficiency.
Conclusion
The Schneider Electric RUMC31JD relay is a versatile and reliable solution for various general-purpose switching applications. Its universal compatibility, high reliability, and ease of installation make it an excellent choice for industrial and commercial settings. With its robust design and wide operating range, the RUMC31JD relay ensures dependable performance in diverse environments.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Universal |
| Product or component type | Plug-in relay |
| Device short name | RUM |
| Contacts type and composition | 3 C/O |
| [Uc] control circuit voltage | 12 V DC |
| [Ithe] conventional enclosed thermal current | 10 A at -40…55 °C |
| Status LED | Without |
| Control type | Lockable test button |
| Utilisation coefficient | 20 % |
| Shape of pin | Cylindrical |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 4 kV (1.2/50 µs) |
| Contacts material | AgNi |
| [Ie] rated operational current | 10 A at 277 V AC conforming to UL 10 A at 30 V DC conforming to UL 10 A at 277 V AC (same polarity) conforming to CSA 10 A at 30 V DC conforming to CSA 5 A at 250 V AC (NC) conforming to IEC 5 A at 28 V DC (NC) conforming to IEC 10 A at 250 V AC (NO) conforming to IEC 10 A at 28 V DC (NO) conforming to IEC |
| Maximum switching voltage | 250 V conforming to IEC |
| Resistive rated load | 10 A at 250 V AC 10 A at 28 V DC |
| Maximum switching capacity | 2500 VA/280 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate | <= 18000 cycles/hour no-load <= 1200 cycles/hour under load |
| Mechanical durability | 5000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Average coil consumption in W | 1.4 W |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Operate time | 20 ms at nominal voltage |
| Release time | 20 ms at nominal voltage |
| Average coil resistance | 120 Ohm at 20 °C +/- 15 % |
| Rated operational voltage limits | 9.6...13.2 V DC |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Safety reliability data | B10d = 100000 |
| Operating position | Any position |
| Net weight | 0.086 kg |
| device presentation | Complete product |
| Dielectric strength | 1500 V AC between contacts with micro disconnection 2500 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
|---|---|
| Product certifications | UL EAC CSA |
| Standards | UL 508 CSA C22.2 No 14 IEC 61810-1 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 4 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| IP degree of protection | IP40 |
| Shock resistance | 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.6 cm |
| Package 1 Width | 3.5 cm |
| Package 1 Length | 6.9 cm |
| Package 1 Weight | 90 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4 cm |
| Package 2 Width | 14.6 cm |
| Package 2 Length | 19.8 cm |
| Package 2 Weight | 973 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 6.476 kg |
