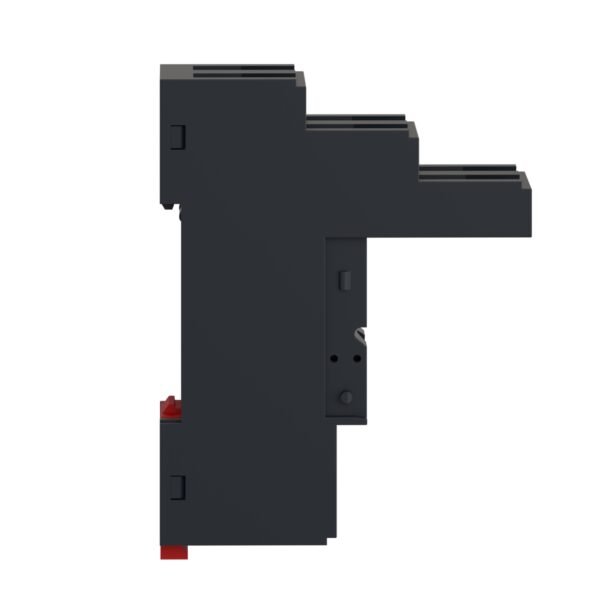

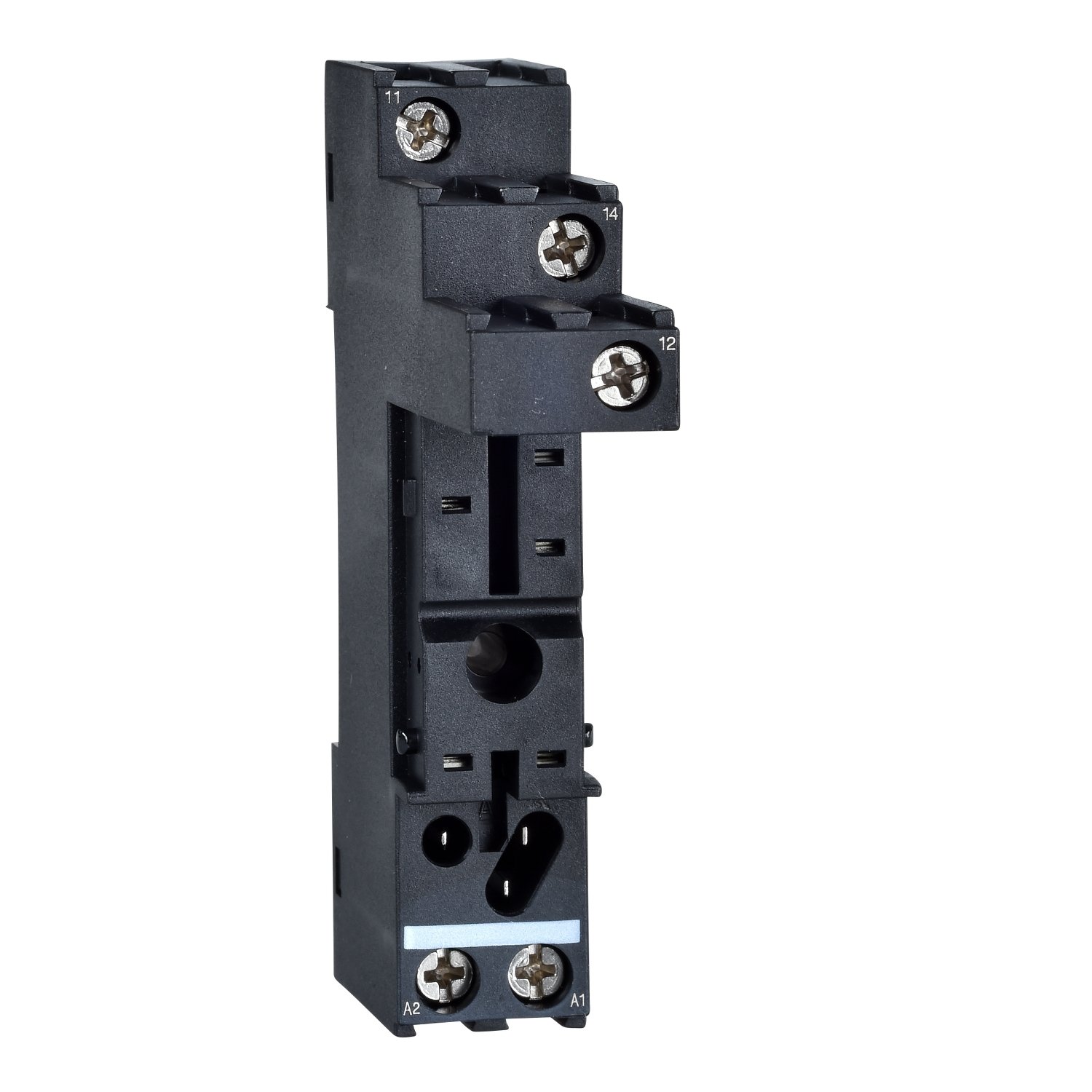

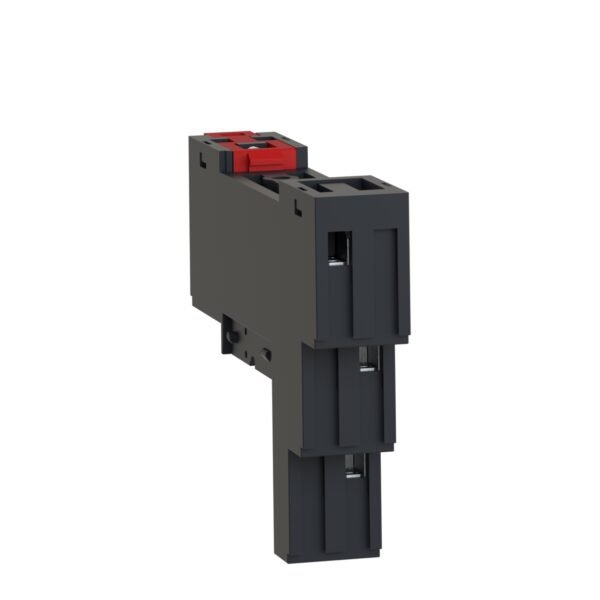

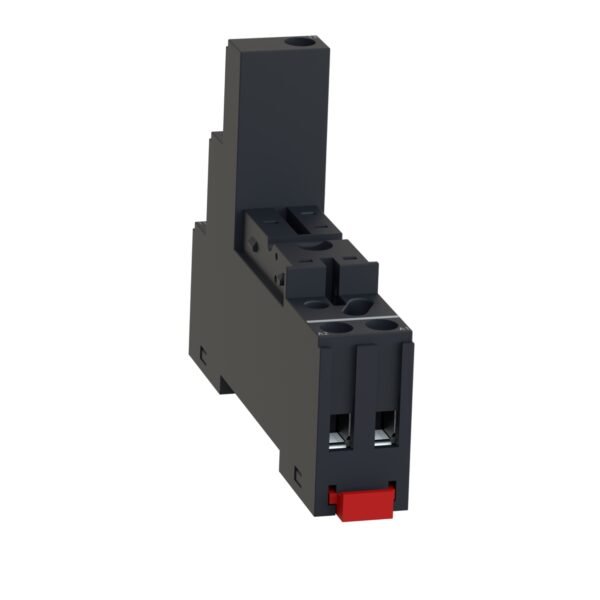

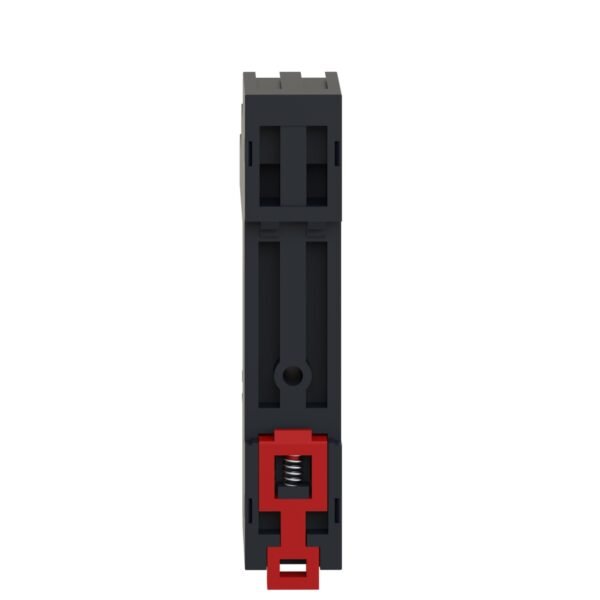

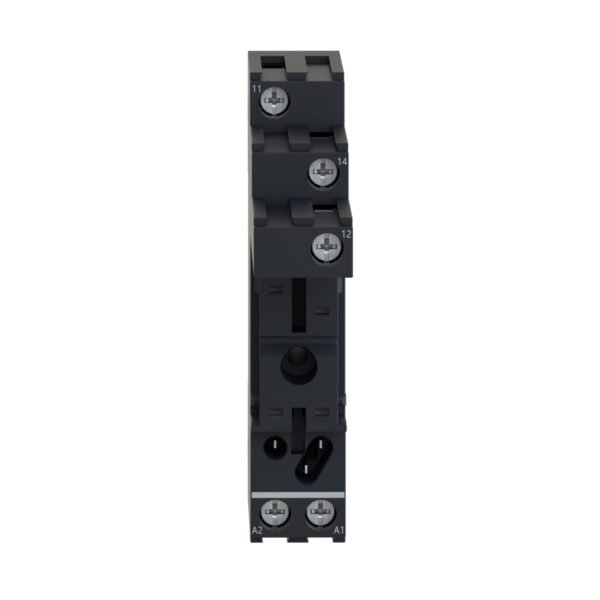

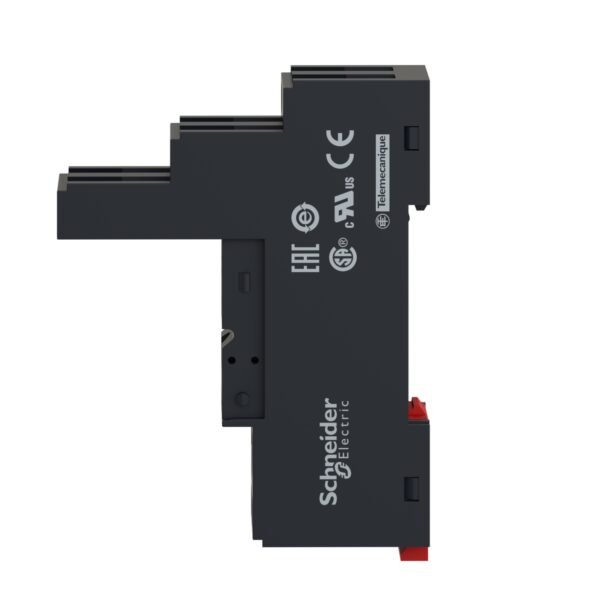

Schneider RSZE1S35M | Socket, separate contact, 12 A, relay type RSB, screw connector, 250 V AC
Original price was: EGP 1,614.00.EGP 936.00Current price is: EGP 936.00.
Description
Schneider RSZE1S35M | Socket, separate contact, 12 A, relay type RSB, screw connector, 250 V AC
Schneider RSZE1S35M | Socket, separate contact, 12 A, relay type RSB, screw connector, 250 V AC description
The Schneider RSZE1S35M is a high-quality socket designed for a wide range of electrical applications. With separate contact points, a relay type RSB, and a screw connector, it offers reliable performance and durability. Let’s delve into its features and benefits in detail.
Introduction
The Schneider RSZE1S35M is a robust socket known for its efficiency and safety in electrical systems. It is designed to handle currents up to 12 A and operates seamlessly with a voltage rating of 250 V AC.
Specifications
Contact Type and Capacity
The separate contact design ensures precise electrical connections, reducing the risk of short circuits. Its 12 A capacity allows it to manage moderate to heavy loads with ease.
Relay Type and Connector
Equipped with a relay type RSB, this socket enhances the control and switching capabilities of connected devices. The screw connector ensures a secure and stable connection, minimizing maintenance issues.
Application Areas
The RSZE1S35M is commonly used in industrial settings, automation systems, and electrical control panels. Its versatility makes it suitable for various machinery and equipment.
Advantages
- Robust construction for long-term reliability.
- Enhanced safety features to protect against electrical hazards.
- Easy installation process with clear guidelines provided.
- Compatible with a wide range of devices and systems.
Installation Guide
- Ensure power is turned off before installation.
- Identify and prepare the wiring according to the socket’s specifications.
- Connect the wires securely to the designated terminals.
- Test the socket to verify proper functionality.
Maintenance Tips
- Regularly inspect for signs of wear or damage.
- Clean the contacts and terminals periodically to maintain conductivity.
- Follow recommended servicing schedules for optimal performance.
Comparison
When compared to similar sockets in the market, the Schneider RSZE1S35M stands out for its robustness and reliability. Its advanced features make it a preferred choice for professionals seeking durable electrical components.
Customer Reviews
Users praise the RSZE1S35M for its performance under challenging conditions. Many highlight its ease of installation and consistent operation over time.
Conclusion
The Schneider RSZE1S35M offers a reliable and efficient solution for electrical connectivity needs. Its durable construction, coupled with advanced features, makes it a valuable asset in various industrial and automation applications.
FAQs
- What is the voltage rating of the Schneider RSZE1S35M?
- Can this socket handle both AC and DC currents?
- Is professional installation recommended for this product?
- Are replacement parts readily available for the RSZE1S35M?
- Does Schneider provide a warranty for this socket?
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Device short name | RSZ |
| product or component type | Socket |
| Product compatibility | Plug-in relay RSB with 1 C/O contact at 12 A |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 12 A |
| Shape of pin | Flat |
|---|---|
| [Ue] rated operational voltage | < 250 V AC |
| Contact terminal arrangement | Separate |
| Connections - terminals | Screw connectors, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw connectors, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Tightening torque | < 0.8 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 15.5 mm |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Standards | IEC 61984 |
| Product certifications | UL CSA |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 35.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.000 cm |
| Package 2 Width | 9.000 cm |
| Package 2 Length | 17.000 cm |
| Package 2 Weight | 358.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.148 kg |
| Warranty | 18 months |
|---|
