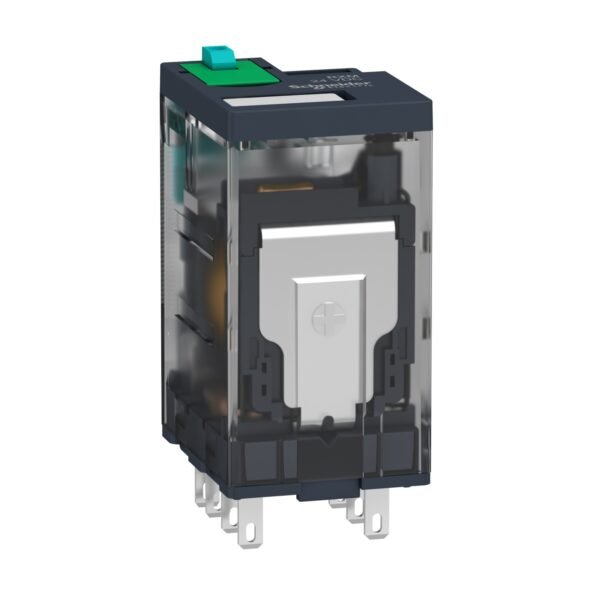

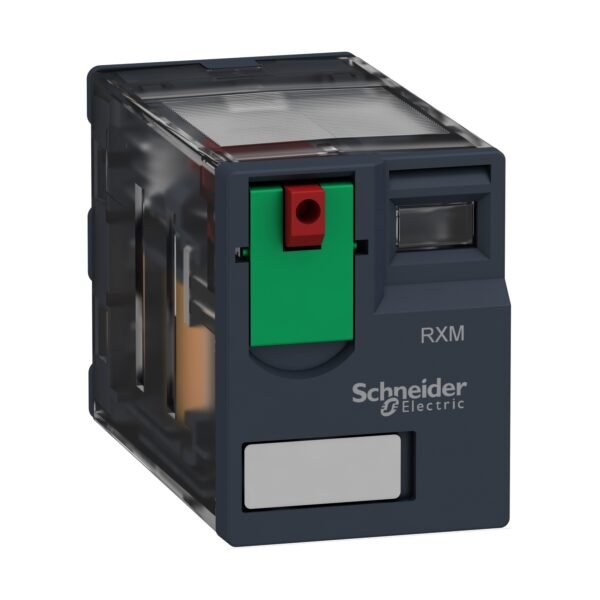

Schneider RXM2AB1FD Relay | Miniature plug-in relay, 12 A, 2 CO, 110 V DC

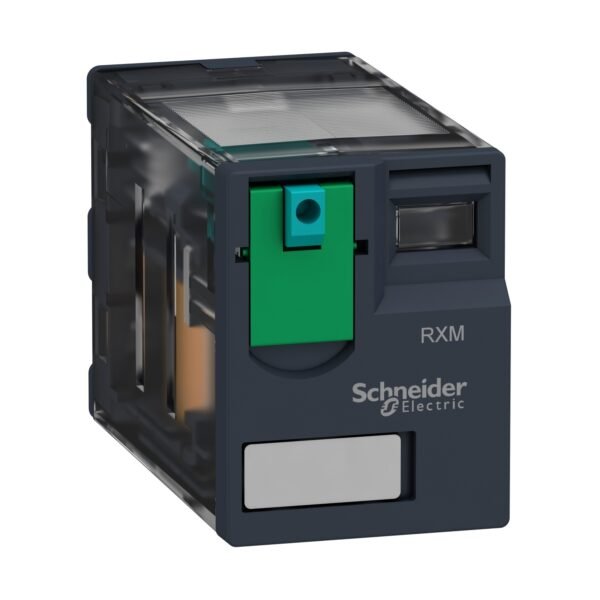

Schneider RXM2AB1FD Relay
Original price was: EGP 3,659.00.EGP 2,122.00Current price is: EGP 2,122.00.
Description

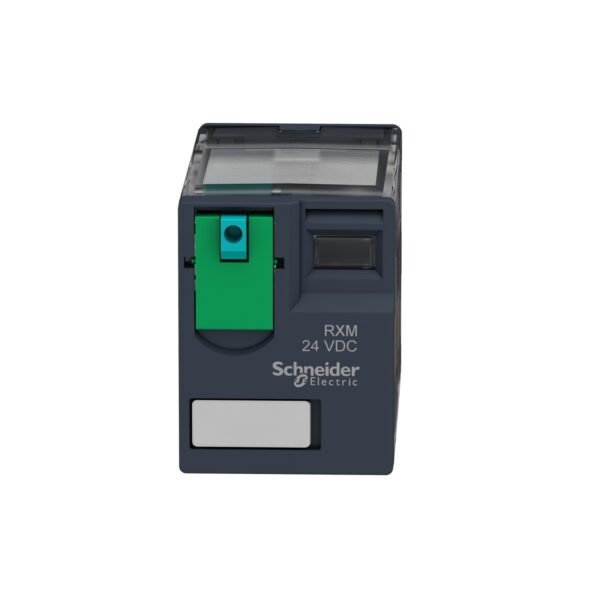

Schneider RXM2AB1FD Relay
is a versatile and reliable solution for various industrial and building automation applications. As one of the leading manufacturers of electrical components,
Schneider Electric has designed this relay to meet the demands of modern automation systems while ensuring durability and performance.
Understanding Relays
What is a relay?
A relay is an electromechanical device used to control the flow of electricity in a circuit. It acts as a switch, allowing a low-voltage signal to control a high-voltage circuit, thus isolating the control circuit from the load circuit.
How does a relay work?

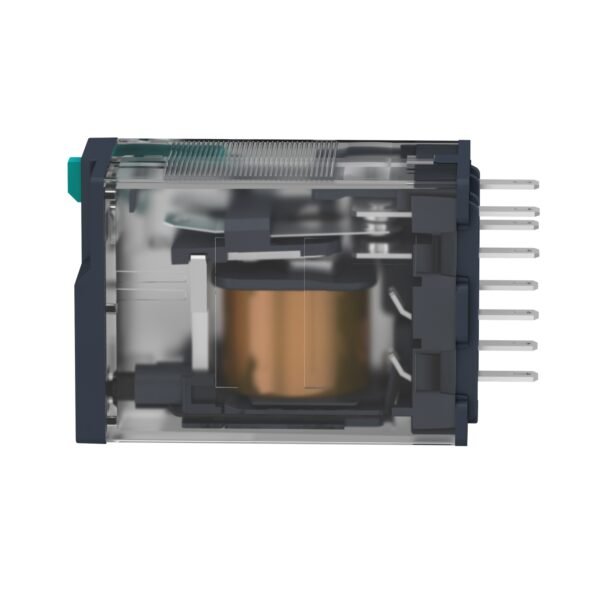

Relays consist of a coil, an armature, and a set of contacts. When the coil is energized, it generates a magnetic field that attracts the armature, closing the contacts and allowing current to flow through the load circuit.
Features of Schneider RXM2AB1FD Relay
comes with several features that make it suitable for a wide range of applications.

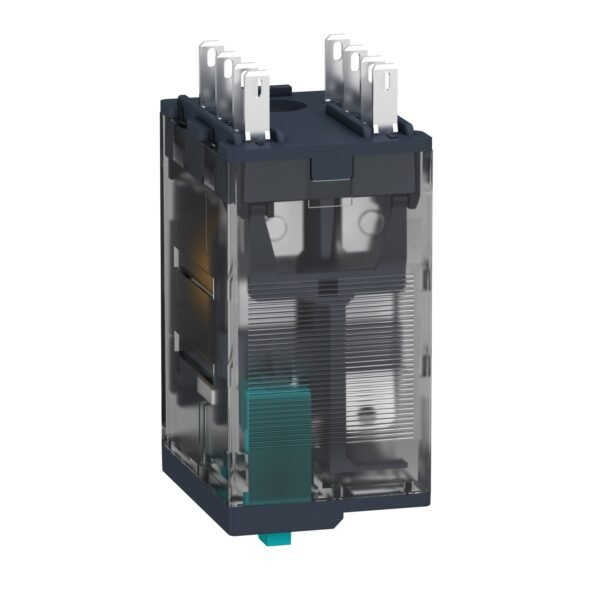

Compact design
Despite its robust performance, the relay has a compact design, making it easy to install in tight spaces.
High switching capacity
With its high switching capacity, the RXM2AB1FD Relay can handle heavy loads, making it ideal for industrial applications.
Low power consumption
Despite its powerful performance, the relay consumes minimal power, helping to reduce energy costs.
Applications of Schneider RXM2AB1FD Relay
finds applications in various industries and sectors.
Industrial automation
From manufacturing plants to assembly lines, the relay is used to control motors, pumps, and other industrial equipment.
Building automation
In commercial buildings and residential complexes, the relay is used to control lighting, HVAC systems, and access control systems.
Installation and Wiring
Mounting options
The relay can be mounted on DIN rails or directly on the panel, offering flexibility in installation.

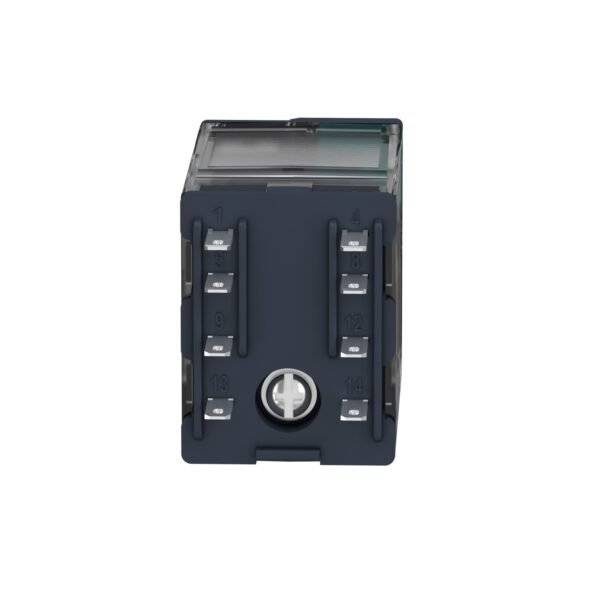

Wiring guidelines
Proper wiring is essential for the reliable operation of the relay. Follow the manufacturer’s guidelines for wiring connections to ensure safety and performance.
Maintenance and Troubleshooting
Regular checks
Perform regular inspections to ensure that the relay is functioning properly. Check for signs of wear and tear, and replace any damaged components as needed.
Common issues and solutions
If the relay malfunctions, troubleshoot the system to identify the root cause. Common issues include loose connections, coil failure, and contact degradation.
Benefits of Using Schneider RXM2AB1FD Relay
Reliability
Schneider Electric is known for its high-quality products, and it is no exception. It offers reliable performance in demanding environments.
Efficiency
The relay’s efficient design helps to minimize energy consumption, resulting in cost savings over time.
Cost-effectiveness
Despite its advanced features, it is competitively priced, offering excellent value for money.
Comparison with Other Relays
Customer Reviews and Testimonials
Conclusion
In conclusion, it is a versatile and reliable solution for various industrial and building automation applications. With its compact design, high switching capacity, and low power consumption, it offers superior performance and efficiency. Whether used in industrial automation or building management systems, this relay delivers consistent results, making it a preferred choice among engineers and facility managers.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | RXM series |
| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 2 C/O |
| Status LED | Without |
| Control type | Lockable test button |
| [Uc] control circuit voltage | 110 V DC |
| [Ithe] conventional enclosed thermal current | 12 A |
| Continuous output current | 10 A |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
|---|---|
| [Ie] rated operational current | 12 A at 28 V (DC) NO conforming to IEC 12 A at 250 V (AC) NO conforming to IEC 6 A at 28 V (DC) NC conforming to IEC 6 A at 250 V (AC) NC conforming to IEC 12 A at 28 V (DC) conforming to UL 12 A at 277 V (AC) conforming to UL |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Electrical durability | 100000 cycles for resistive load |
| Rated operational voltage limits | 88...121 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.1 Uc |
| Load current | 12 A at 250 V AC 12 A at 28 V DC |
| Operating time | 20 ms |
| Maximum switching capacity | 3000 VA/336 W |
| Average resistance | 13440 Ohm at 20 °C +/- 10 % |
| Average coil consumption | 0.9 W |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Reset time | 20 ms |
| Dielectric strength | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation |
| Compatibility code | RXM |
| Protection category | RT I |
| pollution degree | 3 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Net weight | 0.037 kg |
| Ambient air temperature for operation | -40…55 °C |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | UL 508 IEC 61810-1 CSA C22.2 No 14 |
| Product certifications | UL Lloyd's CE CSA GOST IECEE CB Scheme |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gn for in operation 30 gn for not operating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.200 cm |
| Package 1 Width | 2.800 cm |
| Package 1 Length | 4.900 cm |
| Package 1 Weight | 36.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.400 cm |
| Package 2 Width | 10.500 cm |
| Package 2 Length | 12.700 cm |
| Package 2 Weight | 385.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.893 kg |
| Warranty | 18 months |
|---|
