Schneider SMT10020 | Heat detector, PowerLogic HeatTag, smart sensor, cable overheating detection
- Schneider SMT10020 | Heat detector, PowerLogic HeatTag, smart sensor, cable overheating detection
Proactive risk prevention – Detects cable overheating at an early stage, reducing fire risks and unplanned outages.
Smart IoT integration – Connects to EcoStruxure for remote diagnostics, trend analysis, and alerting.
Non-invasive technology – No physical contact with live conductors, enabling safe and simple installation.
Compliance & safety boost – Helps meet electrical safety regulations and enhances asset reliability.
Reduced maintenance costs – Minimizes the need for manual inspections and enables condition-based maintenance.
Description

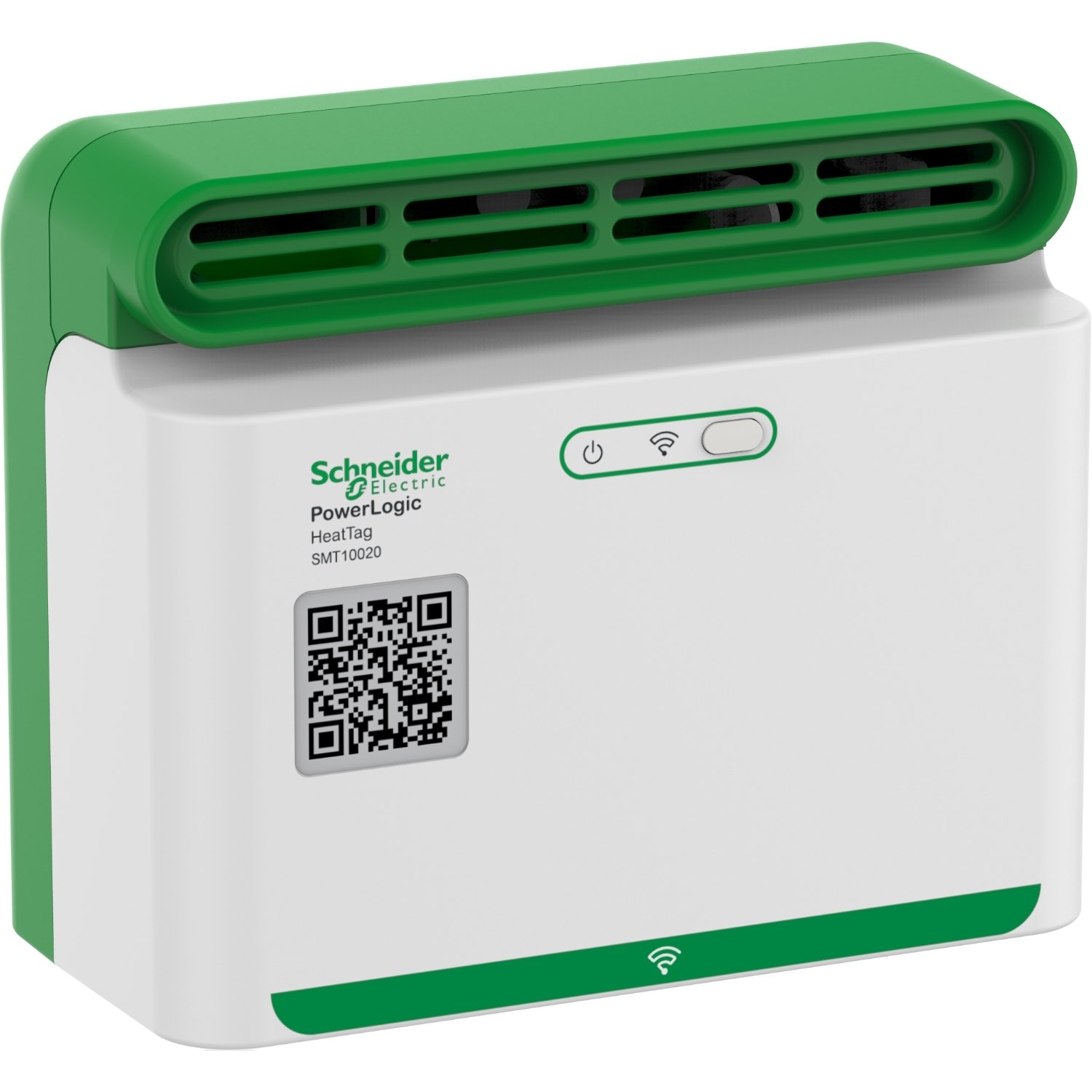

Schneider SMT10020 | Heat detector, PowerLogic HeatTag, smart sensor, cable overheating detection
Technical Specifications SMT10020
-
Product type: Smart heat detector sensor
-
Model: PowerLogic HeatTag
-
Detection principle: Continuous ambient air sampling and analysis
-
Application: Overheating detection of cables and connections
-
Temperature threshold: Configurable warning and critical temperature limits
-
Connectivity: Communicates via Modbus TCP/IP through a HeatHub gateway
-
Installation: Mounted within the electrical enclosure, near high-load cables
-
Power supply: Supplied via HeatHub controller
-
Monitoring range: Detects overheating risks before they become visible or trigger protection devices
Key Features SMT10020
-
Early fire risk detection: Monitors and alerts for abnormal overheating before it causes damage or fire, enhancing safety.
-
Non-intrusive sensor: No need to directly contact the conductor, reducing installation complexity and improving safety.
-
Smart connectivity: Integrates with Schneider’s EcoStruxure platform via HeatHub for real-time data visualization and alarms.
-
Real-time monitoring: Continuously analyzes air particles for chemical markers of overheating insulation and material degradation.
-
Supports predictive maintenance: Provides actionable data to help schedule maintenance before faults occur.
Applications:
-
Data centers: For protecting mission-critical power distribution systems.
-
Industrial facilities: Continuous monitoring of cable integrity in MCCs and switchboards.
-
Hospitals & public buildings: Enhances electrical safety in sensitive and occupied environments.
-
Commercial buildings: Supports fire prevention and asset protection strategies.
-
Renewable energy sites: Ideal for solar and wind farms with high current connections.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | PowerLogic |
|---|---|
| Range of product | PowerLogic HeatTag |
| Product or component type | Heat detector |

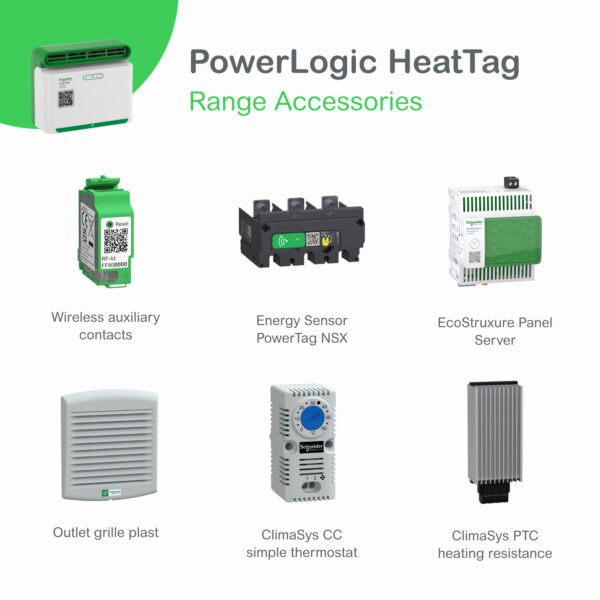

| Range compatibility | PrismaSeT wireless panel server EcoStruxure data concentrator PowerLogic PowerTag |
| Device application | Electrical switchboard |
| Function available | Overheating detection of cables and wire connections Overheating detection based on the analyse of gas and particles in the air 3 levels of alert according to the severity of the situation Environment auto-learning to avoid false alerts Wireless communication with all EcoStruxure data concentrators |
| sensor technology | Electronic |
| Type of measurement | Temperature, range: - 15...70 °c, accuracy: +/- 1.1 °C Humidity, range: 15...90 % RH, accuracy: +/- 9 % Air quality index, range: 0...10 AQI |
| transmission period | 30 s (by default) > 30 s (high data traffic) |
| alarm level | Air quality index >= 10 |
| Communication network type | Wireless - 2.4 GHz |
| Standards | IEC 61010-1 IEC 61010-2-201 IEC 61326-1 ETSI EN 300 328 ETSI EN 301 489-1 ETSI EN 301 489-17 IEEE 802.15.4 FCC part 15 Subpart B FCC part 15 Subpart C UL 61010-1 CSA C22.2 No 61010-1 |
| [Us] rated supply voltage | 110...277 V AC at 50/60 Hz, single phase |
|---|---|
| Supply voltage limits | 110…277 V (+/- 15 %) |
| Maximum supply current | 0.1 A |
| Overvoltage category | III |

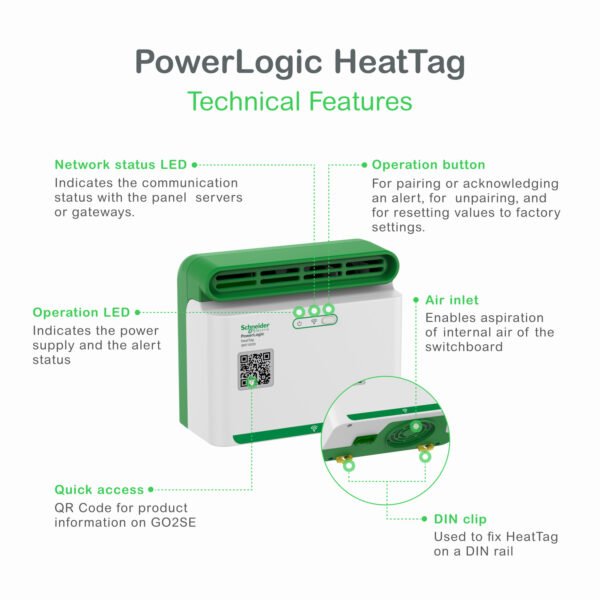

| Control type | 1 push-button (sensor pairing/alert acknowledgement) |
| Local signalling | Network status: 1 LED (green, orange and red) Operating: 1 LED (green, orange and red) |
| Device location in system | Top of the switchboard Non forced air ventilated switchboard |
| Mounting support | DIN rail |
| Protection type | Circuit breaker 2 A curve C |
| Electrical connection | 2 pin(s)removable spring terminal block 2.5 mm² rigid or flexible |
| Height | 107 mm |
| Width | 108 mm |
| Depth | 55 mm |
| Net weight | 0.27 kg |
| Ambient air temperature for storage | -20…85 °C |
|---|---|
| Ambient air temperature for operation | -15…70 °C |
| Operating altitude | 0...2000 m |
| Relative humidity | 15…90 % |
| IP degree of protection | IP20 |
| IK degree of protection | IK06 |
| Pollution degree | 3 |
| Electromagnetic compatibility | EMC immunity conforming to IEC 61326-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.300 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 11.600 cm |
| Package 1 Weight | 292.800 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.399 kg |
| Country of origin | FR |
|---|
| Warranty | 18 months |
|---|
