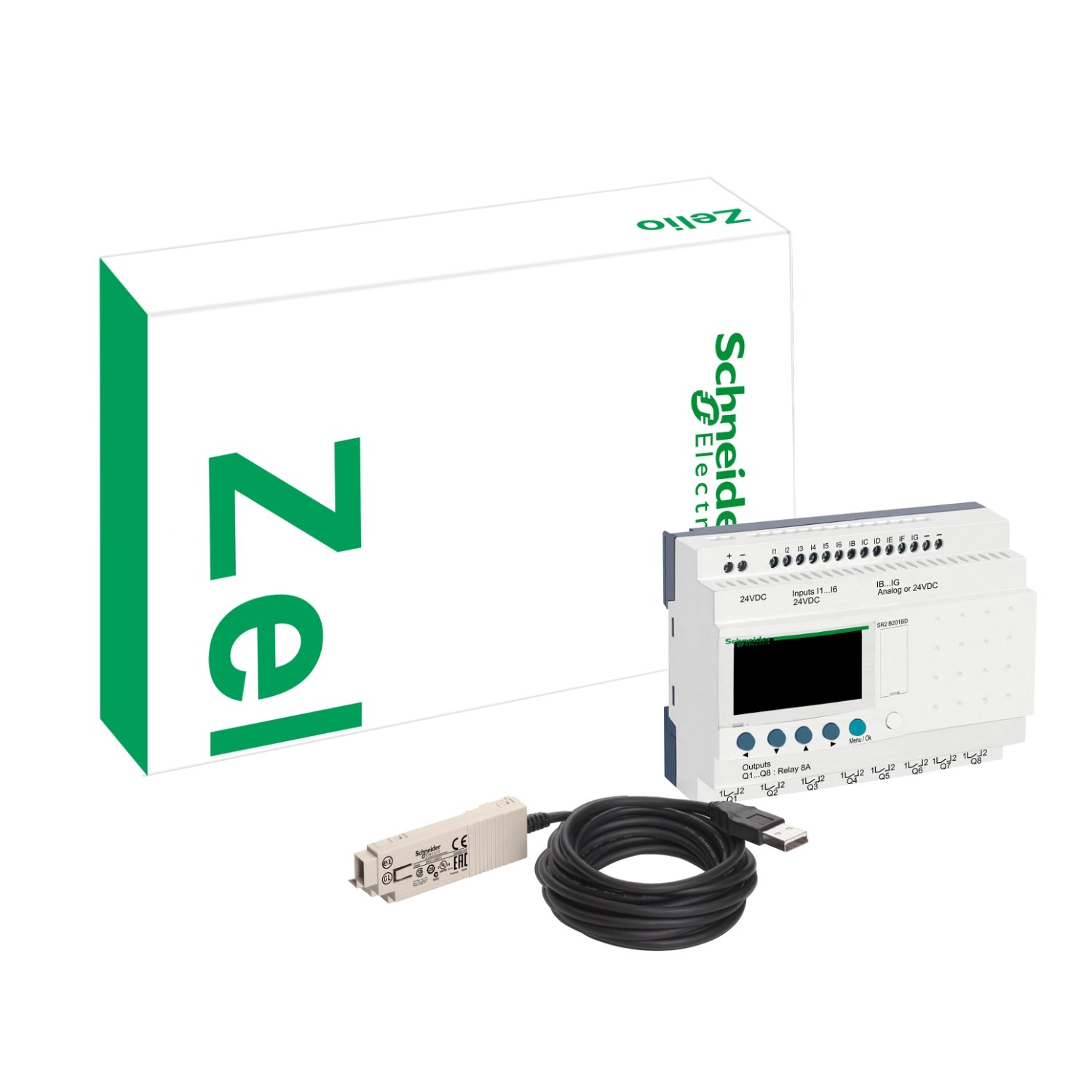

Schneider SR3PACK2BD | modular smart relay Zelio Logic – “discovery” pack – 26 I O – 24 V DC
Schneider SR3PACK2BD | modular smart relay Zelio Logic – “discovery” pack – 26 I O – 24 V DC
Original price was: EGP 386,352.00.EGP 212,494.00Current price is: EGP 212,494.00.
Description
Schneider SR3PACK2BD | modular smart relay Zelio Logic – “discovery” pack – 26 I O – 24 V DC
The Schneider SR3PACK2BD is a modular smart relay from the Zelio Logic series designed for industrial and automation applications. This “Discovery” pack features a configuration of 26 I/O points and operates with a 24V DC power supply. It is built to provide a flexible, user-friendly solution for controlling and automating various systems.
Key Features
-
Product Type: Modular Smart Relay
-
Series: Zelio Logic
-
Pack Type: “Discovery” pack
-
Number of Inputs: 16 (digital and analog inputs)
-
Number of Outputs: 10 (digital relay outputs)
-
Input Voltage: 24V DC
-
Output Voltage: 24V DC
-
I/O Configuration: A mix of digital and analog inputs and relay outputs
-
Memory: Sufficient memory for small to medium-scale control and automation tasks
-
Programming Software: Compatible with Zelio Soft 2, which provides an easy-to-use graphical interface for program creation and debugging
-
Communication Ports: Typically programmed via USB, no dedicated communication ports
-
Mounting: Designed for easy installation in a variety of control panels
-
Protection Rating: IP20
-
Operating Temperature: 0°C to 55°C
-
Dimensions: 210 mm (W) x 130 mm (H) x 70 mm (D)
Applications Schneider SR3PACK2BD
The SR3PACK2BD is suitable for a wide range of applications, particularly in smaller-scale industrial automation, building management, and process control systems. It can be used in:
-
Industrial Automation: Controlling machines, conveyors, sorting systems, and other automated equipment.
-
Building Automation: Managing HVAC, lighting, and energy management systems in commercial buildings.
-
Pump Stations: Managing pump operations, water treatment processes, and fluid systems.
-
Material Handling: Controlling conveyor belts, sorting equipment, and packaging systems.
-
Access Control: Managing entry and exit systems such as gates, barriers, or doors.
-
Elevator and Lift Systems: Controlling the operation of elevators or hoisting equipment.
Advantages Schneider SR3PACK2BD
-
Versatile I/O Configuration: The combination of digital and analog inputs/outputs makes this relay highly adaptable to different control and automation needs.
-
Modular Design: Allows users to configure the system based on specific application requirements, with the possibility of expanding or adjusting the system as needed.
-
User-Friendly Programming: The Zelio Soft 2 software simplifies programming with a graphical interface, making it easy for users to create, test, and deploy automation logic.
-
Reliable and Compact: Its compact size and robust design ensure reliable performance, even in industrial environments.
-
24V DC Power Supply: Ideal for systems that require a low-voltage DC input, ensuring compatibility with various devices and systems.
-
Quick Setup: The “Discovery” pack is designed for quick deployment, making it a perfect starting point for testing and learning about smart relay-based automation.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Zelio Logic |
|---|---|
| Product or component type | Modular discovery packs |
| Discrete input number | 16 conforming to IEC 61131-2 Type 1 |
| Number of outputs | 10 relay |
| Kit composition | Cable PC SR2USB01 for connection to PC SR3B261BD |
|---|---|
| input/output number | 26 |
| Local display | With |
| Number or control scheme lines | 120 with ladder programming 0…200 with FBD programming |
| Cycle time | 6…90 ms |
| Backup time | 10 years at 25 °C |
| Clock drift | 12 min/year at 0…55 °C 6 s/month at 25 °C |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 19.2…30 V |
| Maximum supply current | 190 mA (without extension) 300 mA (with extensions) |
| Power dissipation in W | 10 W with extensions 6 W without extension |
| Reverse polarity protection | With |
| discrete input type | Resistive |
| Discrete input voltage | 24 V DC |
| Discrete input current | 4 mA |
| Counting frequency | 1 kHz for discrete input |
| Voltage state 1 guaranteed | >= 15 V for I1...IA and IH...IR discrete input circuit >= 15 V for IB...IG used as discrete input circuit |
| Voltage state 0 guaranteed | <= 5 V for I1...IA and IH...IR discrete input circuit <= 5 V for IB...IG used as discrete input circuit |
| Current state 1 guaranteed | >= 1.2 mA (IB...IG used as discrete input circuit) >= 2.2 mA (I1...IA and IH...IR discrete input circuit) |
| Current state 0 guaranteed | <= 0.5 mA (IB...IG used as discrete input circuit) <= 0.75 mA (I1...IA and IH...IR discrete input circuit) |
| Input compatibility | 3-wire proximity sensors PNP for discrete input |
| analogue input number | 6 |
| analogue input type | Common mode |
| Analogue input range | 0...10 V 0...24 V |
| Temperature probe type | NTC 10k at 25 °C NTC 1000k at 25 °C KTY81 210/220/221/222/250 Pt 500 |
| Maximum permissible voltage | 30 V for analogue input circuit |
| analogue input resolution | 8 bits |
| LSB value | 39 mV for analogue input circuit |
| Conversion time | Smart relay cycle time for analogue input circuit |
| Conversion error | +/- 5 % at 25 °C for analogue input circuit +/- 6.2 % at 55 °C for analogue input circuit |
| Repeat accuracy | +/- 2 % at 55 °C for analogue input circuit |
| Operating distance | 10 m between stations, with screened cable (sensor not isolated) for analogue input circuit |
| Input impedance | 12 kOhm for IB...IG used as analogue input circuit 12 kOhm for IB...IG used as discrete input circuit 7.4 kOhm for I1...IA and IH...IR discrete input circuit |
| Output voltage limits | 24...250 V AC (relay output) 5...30 V DC (relay output) |
| Contacts type and composition | NO for relay output |
| Output thermal current | 5 A for 2 outputs for relay output 8 A for 8 outputs for relay output |
| Electrical durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA at 12 V (relay output) |
| Operating rate in Hz | 0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output |
| Mechanical durability | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| clock | With |
| Response time | 10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output |
| Connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| tightening torque | 0.5 N.m |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net weight | 0.85 kg |
| Immunity to microbreaks | 1 ms |
|---|---|
| product certifications | GOST GL UL CSA C-Tick |
| Standards | IEC 61000-4-4 level 3 IEC 61000-4-12 IEC 60068-2-6 Fc IEC 60068-2-27 Ea IEC 61000-4-5 IEC 61000-4-6 level 3 IEC 61000-4-2 level 3 IEC 61000-4-3 IEC 61000-4-11 |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 95 % without condensation or dripping water |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.2 cm |
| Package 1 Width | 15.5 cm |
| Package 1 Length | 23.5 cm |
| Package 1 Weight | 523.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.714 kg |
| Warranty | 18 months |
|---|
