Schneider SR3PACKFU | modular smart relay Zelio Logic – “discovery” pack – 10 I O – 100..240V AC
Schneider SR3PACKFU | modular smart relay Zelio Logic – “discovery” pack – 10 I O – 100..240V AC
Original price was: EGP 379,666.00.EGP 208,817.00Current price is: EGP 208,817.00.
Description

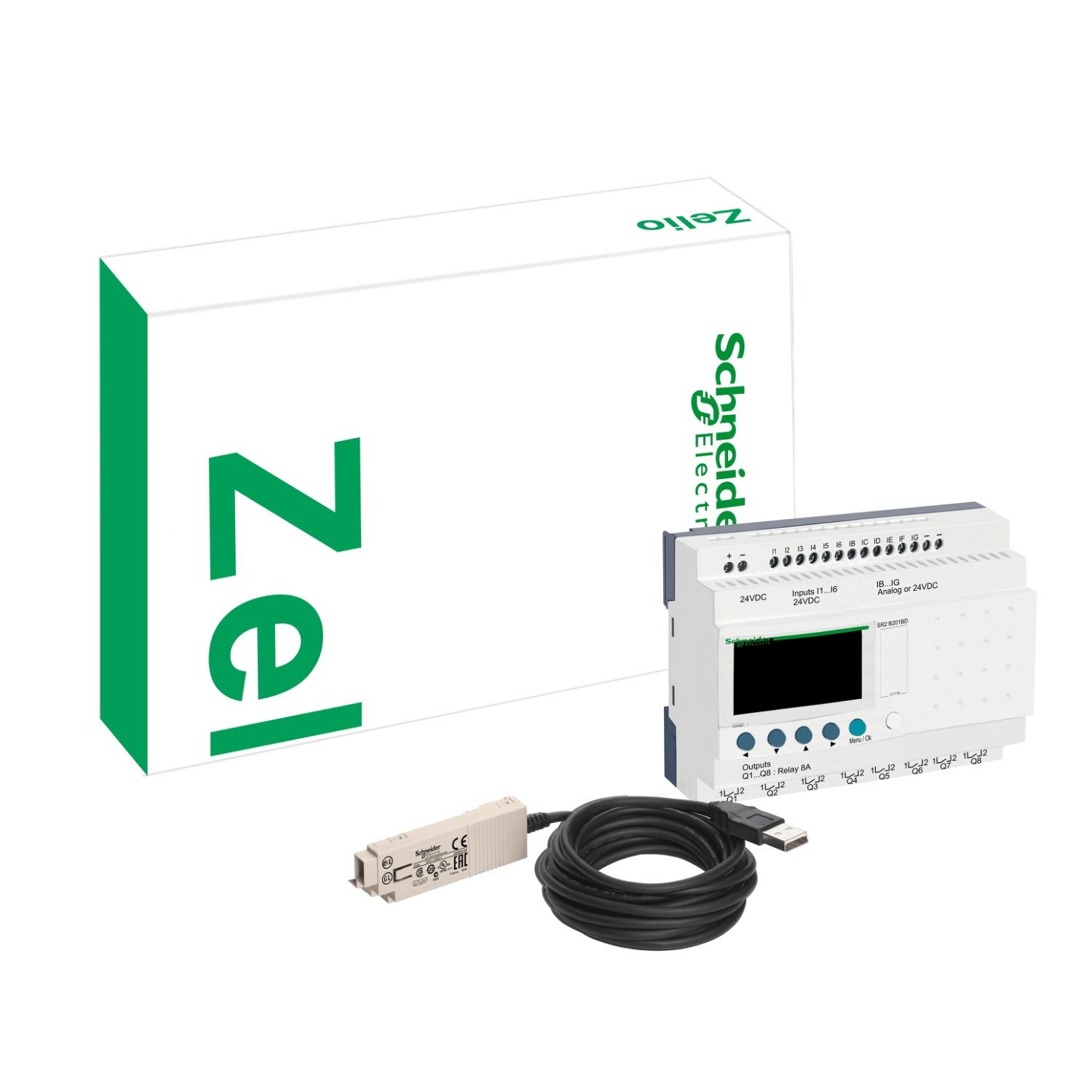

Schneider SR3PACKFU | modular smart relay Zelio Logic – “discovery” pack – 10 I O – 100..240V AC
The Schneider Electric SR3PACKFU is a modular smart relay from the Zelio Logic series, offered as part of the “Discovery” pack. Designed for users who are exploring automation or looking for a compact solution for basic control tasks, this relay provides 10 I/O (inputs/outputs) and operates on 100-240V AC. The pack is ideal for educational purposes, training, or small automation systems.
Key Features
-
Product Type: Modular smart relay
-
Series: Zelio Logic
-
Pack Type: Discovery pack, designed for learning and small-scale applications
-
Number of I/O: 10 I/O (6 digital inputs, 4 digital outputs)
-
Voltage: 100-240V AC
-
Modular Design: Supports expansion with additional modules as the complexity of the task grows
-
User Interface: Easy-to-use interface for programming and monitoring
-
Programming: Programmable using Zelio Soft 2 software
-
Mounting: DIN rail compatible
Electrical Specifications
-
Power Supply: 100-240V AC
-
Digital Inputs: 6 digital inputs, ideal for receiving ON/OFF signals
-
Digital Outputs: 4 digital outputs for controlling devices like relays, motors, or lights
-
Relay Contacts: Normally open (NO) contacts for outputs
-
Output Current: 0.5 A per output channel (maximum)
-
Modular Expansion: Additional I/O modules can be added as needed for more complex tasks
Mechanical & Environmental Specifications
-
Housing: Compact plastic housing for easy integration into control panels
-
Mounting: DIN rail mounting for straightforward installation
-
Operating Temperature: 0°C to +55°C
-
Storage Temperature: -20°C to +70°C
-
Protection Rating: IP20 (module body)
-
Dimensions: Compact design, saving valuable space
Applications Schneider SR3PACKFU
-
Learning and Training: Ideal for individuals or teams learning about automation systems and relay controls
-
Small Automation Systems: Suitable for controlling small machines, lighting, HVAC systems, or other basic automation tasks
-
Process Control: Can be used for simple process control applications requiring limited I/O
-
Home Automation: Effective for basic home automation systems like controlling lighting, HVAC, and other devices
-
Energy Management: Useful in small-scale energy control applications for monitoring and switching devices based on demand
Advantages Schneider SR3PACKFU
-
Beginner-Friendly: The “Discovery” pack offers an accessible and easy-to-understand solution for users who are new to automation, providing simple programming and a straightforward user interface
-
Modular Design: The modular design allows for easy expansion, making it scalable as the requirements grow
-
Flexible Voltage Range: Operates across a wide voltage range (100-240V AC), making it versatile for various environments
-
Space-Saving: Compact and easy to integrate into control panels or small spaces
-
Cost-Effective: A budget-friendly solution for basic control tasks without the need for advanced systems
-
Reliable Performance: Designed for long-lasting operation, even in challenging industrial environments
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Zelio Logic |
|---|---|
| Product or component type | Modular discovery packs |
| Discrete input number | 6 |
| Number of outputs | 4 relay |
| Kit composition | SR3B101FU Cable PC SR2USB01 for connection to PC |
|---|---|
| input/output number | 10 |
| Local display | With |
| Number or control scheme lines | 120 with ladder programming 0…200 with FBD programming |
| Cycle time | 6…90 ms |
| Backup time | 10 years at 25 °C |
| Clock drift | 12 min/year at 0…55 °C 6 s/month at 25 °C |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 100...240 V |
| Supply voltage limits | 85…264 V |
| Supply frequency | 50/60 Hz |
| Maximum supply current | 30 mA at 240 V (without extension) 40 mA at 240 V (with extensions) 80 mA at 100 V (with extensions) 80 mA at 100 V (without extension) |
| Power consumption in VA | 12 VA with extensions 7 VA without extension |
| Isolation voltage | 1780 V |
| Protection type | Against inversion of terminals (control instructions not executed) |
| Discrete input voltage | 100...240 V AC |
| Discrete input current | 0.6 mA |
| Discrete input frequency | 47...53 Hz 57...63 Hz |
| Voltage state 1 guaranteed | >= 79 V for discrete input |
| Voltage state 0 guaranteed | <= 40 V for discrete input |
| Current state 1 guaranteed | >= 0.17 mA (discrete input) |
| Current state 0 guaranteed | <= 0.5 mA (discrete input) |
| Input impedance | 350 kOhm for discrete input |
| Output voltage limits | 5...30 V DC (relay output) 24...250 V AC |
| Contacts type and composition | NO for relay output |
| Output thermal current | 8 A for all 4 outputs for relay output |
| Electrical durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA at 12 V (relay output) |
| Operating rate in Hz | 0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output |
| Mechanical durability | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| clock | With |
| Response time | 50 ms with ladder programming (from state 0 to state 1) for discrete input 50 ms with ladder programming (from state 1 to state 0) for discrete input 50...255 ms with FBD programming (from state 0 to state 1) for discrete input 50...255 ms with FBD programming (from state 1 to state 0) for discrete input 10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output |
| Connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| tightening torque | 0.5 N.m |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net weight | 0.7 kg |
| Immunity to microbreaks | 10 ms |
|---|---|
| product certifications | GOST C-Tick GL CSA UL |
| Standards | IEC 61000-4-2 level 3 IEC 61000-4-4 level 3 IEC 61000-4-12 IEC 61000-4-5 IEC 61000-4-11 IEC 61000-4-3 IEC 61000-4-6 level 3 IEC 60068-2-6 Fc IEC 60068-2-27 Ea |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 95 % without condensation or dripping water |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 16.0 cm |
| Package 1 Length | 24.0 cm |
| Package 1 Weight | 485.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.326 kg |
| Warranty | 18 months |
|---|
