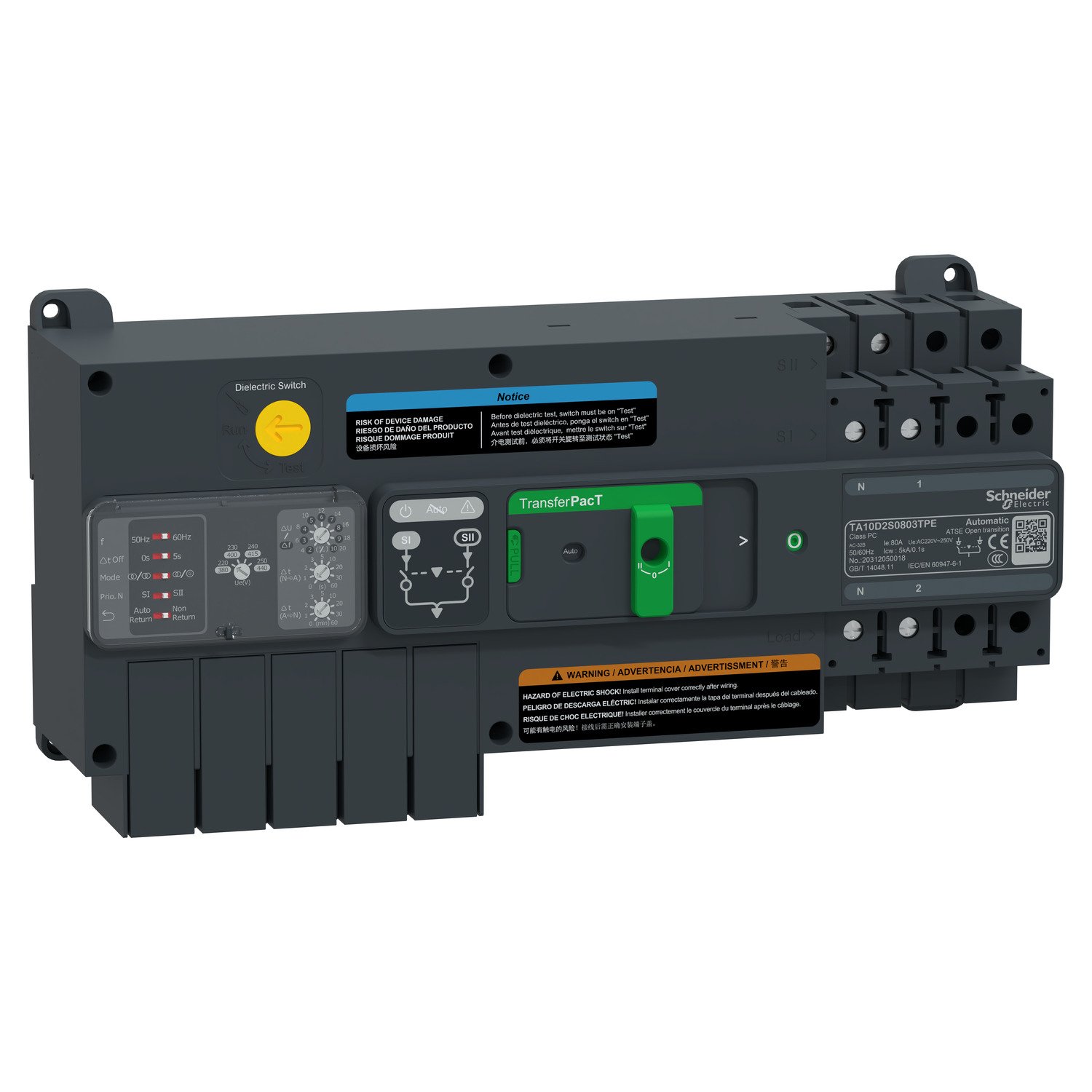

Schneider TA10D2S0803TPE | automatic transfer switch, TransferPacT automatic, 80A, 2P, rotary, frame 100A
Schneider TA10D2S0803TPE | automatic transfer switch, TransferPacT automatic, 80A, 2P, rotary, frame 100A
Description
Schneider TA10D2S0803TPE | automatic transfer switch, TransferPacT automatic, 80A, 2P, rotary, frame 100A
1. Product Specifications
The Schneider TA10D2S0803TPE is a 2-pole automatic transfer switch from the TransferPacT Automatic series. It is designed to handle a rated current of 80 amps and operates through a manual rotary switching mechanism. This model is suitable for single-phase systems and is built into a compact 100A frame.
-
Product Type: Automatic Transfer Switch (ATS)
-
Series: TransferPacT Automatic
-
Rated Current: 80 Amps
-
Number of Poles: 2P (Single-phase)
-
Operating Voltage: 230V AC
-
Frequency: 50/60 Hz
-
Switching Mechanism: Rotary (Manual operation)
-
Frame Size: 100A
-
Mounting: For use in electrical panels or switchboards
2. Key Features
-
Automatic Power Transfer
Automatically shifts the load between two power sources to maintain continuous power during utility outages. -
Manual Rotary Control
Provides reliable and intuitive manual switching when needed, ensuring full control in maintenance or emergency situations. -
Compact and Rugged Design
Built for easy integration into existing electrical panels with a durable structure that withstands demanding environments. -
100A Frame for System Flexibility
Although rated for 80A, the 100A frame allows for future expansion and versatility in installation. -
Integrated Safety Functions
Includes overload and short-circuit protection to safeguard connected systems and equipment.
3. Applications
-
Residential Backup Systems
Ensures uninterrupted power supply for critical home appliances like lighting, air conditioning, and refrigerators. -
Small Business and Retail
Ideal for shops, small offices, and retail outlets requiring reliable power switching for sensitive equipment. -
Generator Integration
Commonly used to manage switching between utility power and generator supply in backup systems. -
Off-Grid or Hybrid Power Systems
Suitable for installations involving dual power sources such as the utility grid and solar or generator systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | TransferPacT |
|---|---|
| product or component type | Automatic transfer switch |
| Device application | Change source of supply |
| poles description | 2P |
| Network type | AC |
| Network frequency | 50/60 Hz |
| downside connection | Screwed |
| mounting mode | Fixed |
| Upside connection | Screwed |
| Contact position indicator | Yes |
| [Icm] rated short-circuit making capacity | 15 kA switch-disconnector alone 400 V AC at 50 Hz 75 kA with upstream protection circuit breaker 400 V AC at 50 Hz |
| Suitability for isolation | Yes |
| transfer switch class | PC |
|---|---|
| Number of contact position | 3 |
| Signal contacts composition | 1 NO + 2 NC 1 NC + 2 NO 2 NO |
| Utilization category | AC-32B |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
| Control type | Rotary knob Selector switch |
| Operating mode | Automatic Manual |
| mounting support | Plate DIN rail |
| Locking options description | Padlock in OFF position |
| Rated duty | Uninterrupted |
| [Ui] rated insulation voltage | Switch: 800 V Controller: 500 V |
| [Uimp] rated impulse withstand voltage | Switch: 6 kV Controller: 6 kV |
| [Ie] rated operational current | 80 A |
| mechanical interlocking | With mechanical interlocking |
| Mechanical durability | 8000 cycles |
| Connection pitch | 18 mm |
| [Icw] rated short-time withstand current | 5 kA during 0.1 s |
| Height | 145 mm |
| Width | 306 mm |
| Depth | 94 mm |
| net weight | 3.4 kg |
| [Ith] conventional free air thermal current | 80 A at 60 °C |
| Standards | IEC 60947-6-1 |
|---|---|
| Product certifications | CE CB CCC |
| IP degree of protection | Front face: IP40 auto mode Inside the enclosure: IP20 manual mode |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -35…85 °C |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.600 cm |
| Package 1 Width | 21.100 cm |
| Package 1 Length | 36.700 cm |
| Package 1 Weight | 3.150 kg |
