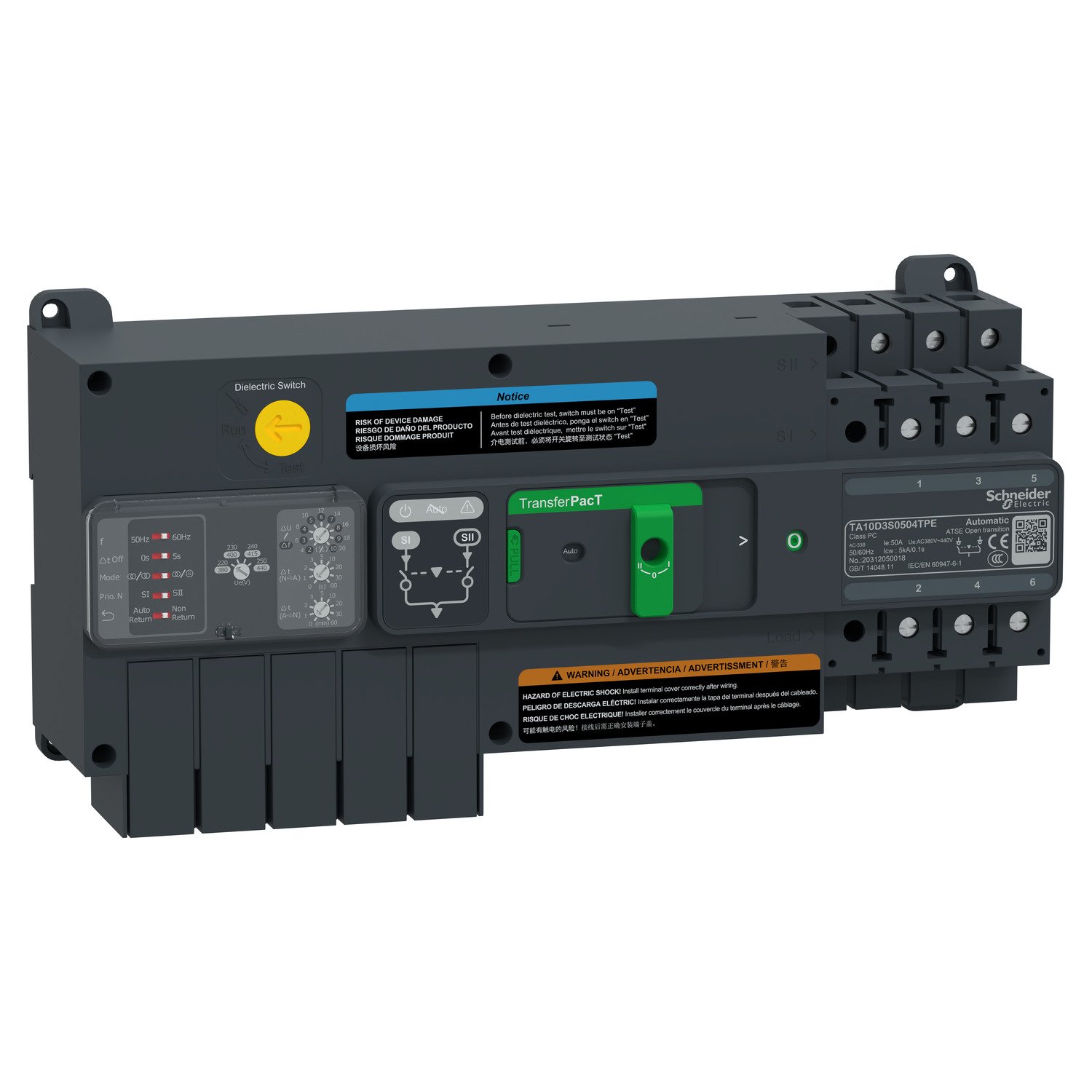

Schneider TA10D3S0504TPE | automatic transfer switch, TransferPacT automatic, 50A, 3P, rotary, frame 100A

Product Overview:

The TA10D3S0504TPE is a three-pole automatic transfer switch (ATS), rated at 50 Amperes, housed within a 100A frame. It features a rotary handle for manual operation alongside automatic switching capabilities. As part of the TransferPacT Automatic series, it is designed for seamless transition between utility and backup power sources, ensuring smooth load management and system protection.

Technical Specifications:

• Product Code: TA10D3S0504TPE

• Type: Automatic Transfer Switch (ATS)

• Rated Current: 50A

• Poles: 3P (Three-phase system)

• Operation: Rotary handle with automatic switching function

• Frame Size: 100A

• Application Voltage: Suitable for low-voltage systems

• Mounting: Panel installation, compact design

Key Features:

• Automatic Source Switching: Automatically transfers electrical loads between the main and backup sources with minimal delay, ensuring continuity of power.

• Manual Override: Equipped with a rotary handle for manual control when required, such as during maintenance or emergency situations.

• High Reliability: Built within a sturdy 100A-rated frame for extended mechanical and electrical durability, even when used in continuous operation.

• Compact and Space-Saving: Designed for easy integration in compact electrical panels without compromising performance.

• Versatile Application: Suitable for both commercial and light industrial setups, especially in areas with frequent power instability.

Typical Applications:

• Commercial buildings and retail spaces with moderate power demands

• Industrial sites operating three-phase equipment

• Educational institutions and healthcare facilities with standby generator systems

• Data rooms and telecommunications panels

• Residential buildings with centralized backup power infrastructure
