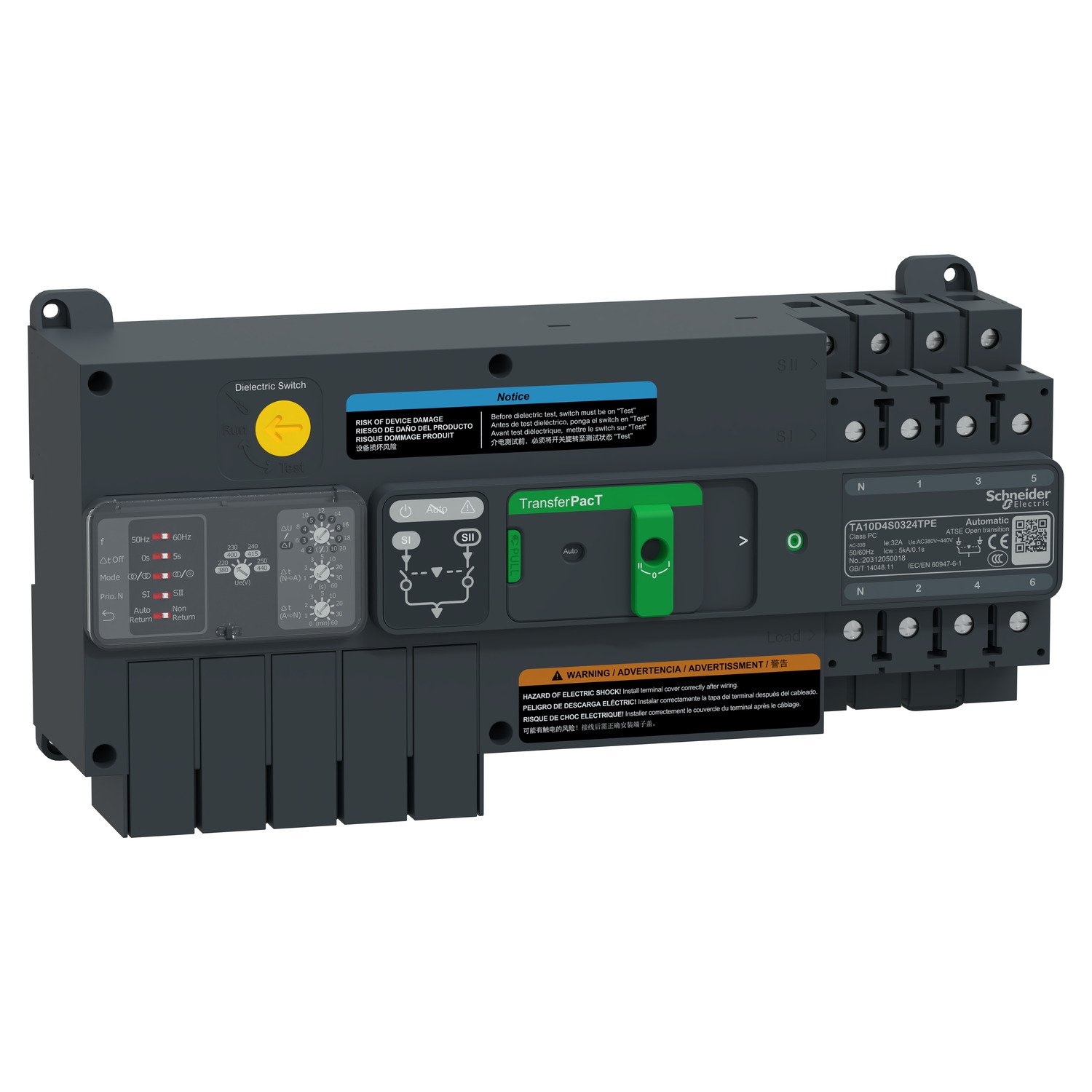

Schneider TA10D4S0324TPE | automatic transfer switch, TransferPacT automatic, 32A, 4P, rotary, frame 100A
Schneider TA10D4S0324TPE | automatic transfer switch, TransferPacT automatic, 32A, 4P, rotary, frame 100A
Description
Schneider TA10D4S0324TPE | automatic transfer switch, TransferPacT automatic, 32A, 4P, rotary, frame 100A
Technical Specifications:
- Model: TA10D4S0324TPE
- Series: TransferPacT Automatic
- Type: Automatic Transfer Switch (ATS)
- Current Rating: 32A
- Poles: 4P
- Control Type: Rotary
- Frame Size: 100A
- Operating Voltage: Compatible with various voltage systems
- Standards & Certifications: Complies with international standards and certified by Schneider
Key Features:
✔ Automatic Fast Transfer: Ensures seamless switching between two power sources in case of a main power failure.
✔ Reliable Performance: Built with high-quality materials for safe and stable operation.
✔ Compact & Efficient Design: Allows easy installation and use, making it ideal for various applications.
✔ Enhanced Safety: Provides secure switching with minimal risk of electrical faults.
✔ Wide Compatibility: Suitable for industrial, commercial, and residential power systems.
Applications:
- Backup Power Systems: Ensures continuous power supply by switching between the main grid and a backup generator.
- Industrial Use: Used in factories, data centers, and manufacturing plants for uninterrupted power.
- Commercial Buildings: Suitable for offices, hospitals, and shopping malls requiring stable power supply.
- Residential Properties: Provides automatic switching for home standby generators.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | TransferPacT |
|---|---|
| Product or component type | Automatic transfer switch |
| Device application | Change source of supply |
| Poles description | 4P |
| Network type | AC |
| Network frequency | 50/60 Hz |
| downside connection | Screwed |
| Mounting mode | Fixed |
| Upside connection | Screwed |
| Contact position indicator | Yes |
| [Icm] rated short-circuit making capacity | 15 kA switch-disconnector alone 400 V AC at 50 Hz 75 kA with upstream protection circuit breaker 400 V AC at 50 Hz |
| Suitability for isolation | Yes |
| transfer switch class | PC |
|---|---|
| Number of contact position | 3 |
| Signal contacts composition | 1 NO + 2 NC 1 NC + 2 NO 2 NO |
| Utilization category | AC-33B |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz |
| Control type | Rotary knob Selector switch |
| Operating mode | Automatic Manual |
| Mounting support | Plate DIN rail |
| Locking options description | Padlock in OFF position |
| Rated duty | Uninterrupted |
| [Ui] rated insulation voltage | Switch: 800 V Controller: 500 V |
| [Uimp] rated impulse withstand voltage | Switch: 6 kV Controller: 6 kV |
| [Ie] rated operational current | 32 A |
| Mechanical interlocking | With mechanical interlocking |
| Mechanical durability | 8000 cycles |
| Connection pitch | 18 mm |
| [Icw] rated short-time withstand current | 5 kA during 0.1 s |
| Height | 145 mm |
| Width | 306 mm |
| Depth | 94 mm |
| Net weight | 3.4 kg |
| [Ith] conventional free air thermal current | 32 A at 60 °C |
| Standards | IEC 60947-6-1 |
|---|---|
| Product certifications | CE CB CCC |
| IP degree of protection | Front face: IP40 auto mode Inside the enclosure: IP20 manual mode |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -35…85 °C |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.500 cm |
| Package 1 Width | 21.000 cm |
| Package 1 Length | 36.500 cm |
| Package 1 Weight | 4.131 kg |
