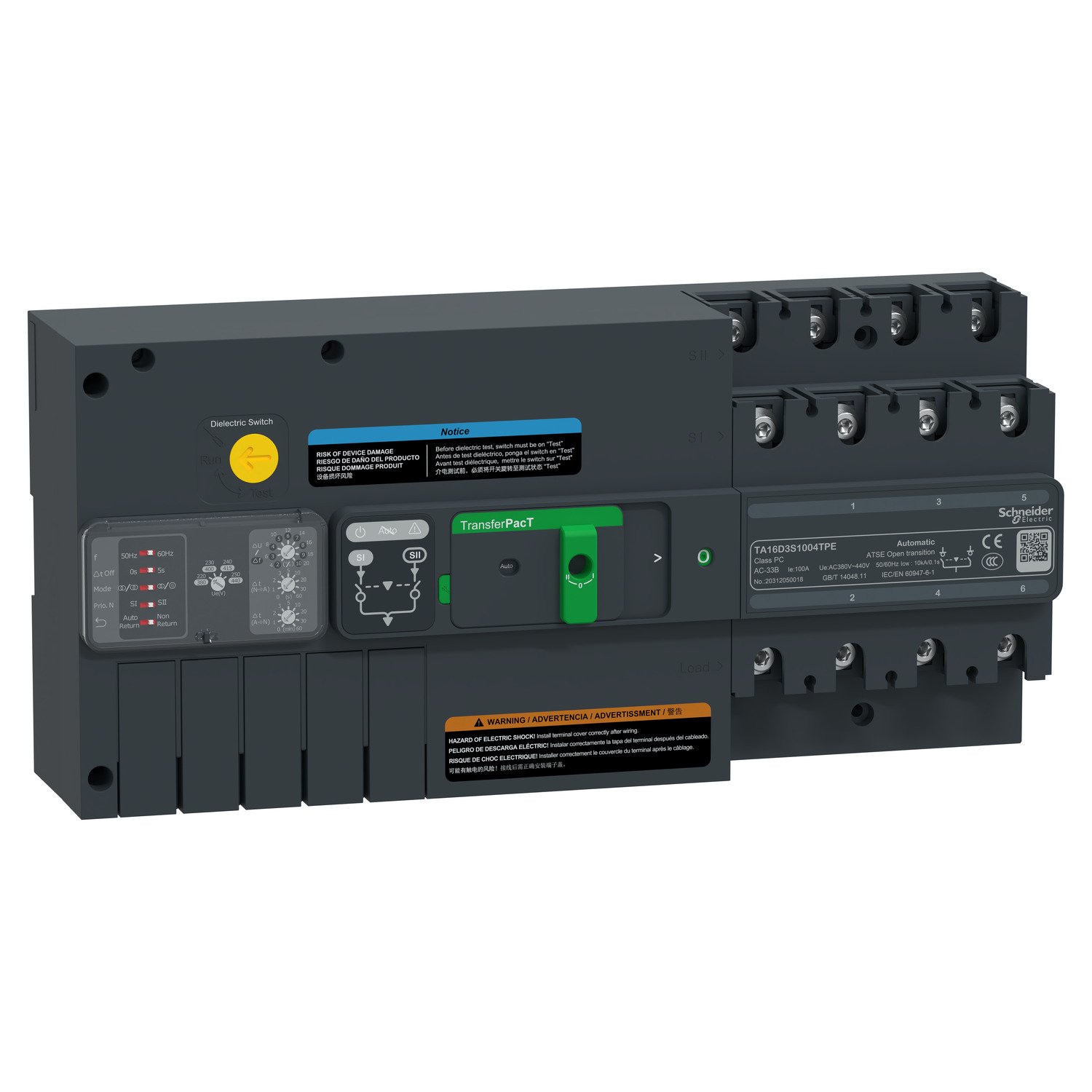

Schneider TA16D3S1004TPE | automatic transfer switch, TransferPacT automatic, 100A, 3P, rotary, frame 160A

Specifications:

• Model: TA16D3S1004TPE

• Current Rating: 100A

• Poles: 3P (3 Poles)

• Frame Size: 160A

• Switch Type: Rotary

• Voltage Rating: 400V AC (50/60 Hz)

• Protection Degree: IP20

• Dimensions: Width: 351 mm, Height: 164 mm, Depth: 95 mm

• Weight: Approximately 5.6 kg

Features:

1. Fast Switching: The ATS automatically switches between power sources within 500 milliseconds, ensuring minimal downtime during power interruptions.

2. Modular Design: Its modular structure allows for easy integration of additional features and upgrades, providing flexibility for changing power needs.

3. Rotary Switch Mechanism: The rotary switch ensures a smooth and reliable transfer between the primary and backup power sources.

4. Durability: Built to handle up to 10,000 mechanical operations, making it a long-lasting solution for high-demand environments.

5. Secure Connections: Features screw connections for incoming and outgoing terminals, ensuring secure and reliable electrical contact.

Applications:

• Industrial Settings: Ensures continuous power supply to critical machinery and equipment, preventing downtime and disruptions in operations.

• Commercial Buildings: Ideal for maintaining the power supply to essential systems like lighting, HVAC, and elevators, ensuring smooth operations even during power outages.

• Residential Complexes: Suitable for homes and residential complexes that require seamless switching between primary and backup power sources.

• Data Centers: Protects sensitive equipment by providing reliable power transitions, helping to avoid data loss and potential hardware damage during power failures
