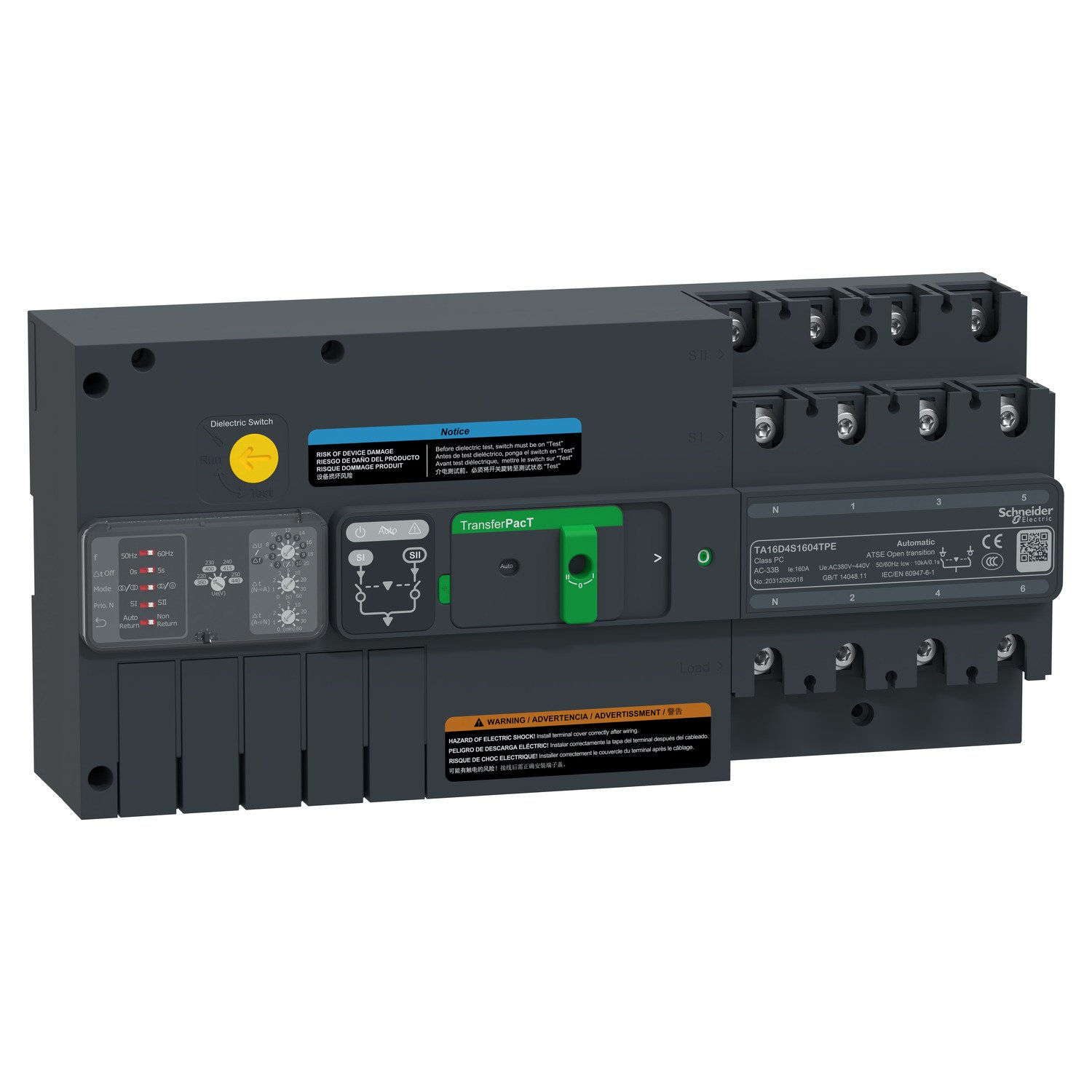

schneider TA16D4S1604TPE | automatic transfer switch, TransferPacT automatic, 160A, 4P, rotary, frame 160A

Technical Specifications schneider TA16D4S1604TPE

• Type: Automatic Transfer Switch (ATS)

• Rated Current: 160 Amps

• Number of Poles: 4 poles (4P), providing full switching control over live and neutral conductors for complete power management in three-phase systems.

• Switching Mechanism: Rotary, which ensures smooth and reliable switching between power sources, minimizing mechanical wear over time.

• Frame Size: 160A rated frame, capable of handling electrical loads up to 160A.

• Voltage Compatibility: Suitable for various voltage levels commonly used in industrial, commercial, and residential installations.

• Protection: Equipped with built-in protection features such as overload, short-circuit, and fault protection to ensure safe operation.

• Control: Fully automatic operation for seamless switching without the need for manual intervention, ensuring continuous power without interruption.

• Durability: Designed for long-term, reliable operation in demanding environments.

. Features:

• Rotary Switching Mechanism: The TA16D4S1604TPE uses a rotary mechanism, ensuring smooth and durable switching between power sources. This method reduces wear and tear, enhancing the longevity of the ATS in high-cycle applications.

• Automatic Power Switching: This ATS automatically detects any power failure in the primary source and switches the load to the secondary source without requiring manual intervention. This feature is essential for systems where uptime is critical.

• 4-Pole Configuration: The 4-pole design provides complete control over both live and neutral conductors, ensuring safe and reliable switching in three-phase applications.

• 160A Frame Size: With a 160A rated frame, this ATS is designed to handle large electrical loads, making it suitable for industrial, commercial, and large-scale residential power systems.

• Built-in Protection: The TA16D4S1604TPE includes protection against overloads, short circuits, and other electrical faults, ensuring the safety of both the transfer switch and connected equipment.

• High Durability: Designed for robust performance, this ATS can withstand harsh environments and heavy-duty use, providing long-term reliability in critical applications.

• Fully Automatic Operation: The ATS operates fully autonomously, ensuring uninterrupted service without manual intervention. This makes it ideal for mission-critical applications where constant power is required.

. Applications:

• Industrial Systems: The TA16D4S1604TPE is well-suited for industrial environments, where it is crucial to maintain continuous operation of machinery and production lines. It provides automatic power switching, minimizing downtime in case of power failure and ensuring productivity.

• Commercial Facilities: In large commercial buildings such as office complexes, shopping malls, and manufacturing units, this ATS ensures smooth operation by automatically switching between power sources and preventing any disruption to business activities.

• Healthcare: Healthcare facilities, including hospitals, clinics, and laboratories, rely on this ATS to keep critical medical equipment powered during power outages, ensuring the safety and well-being of patients.

• Data Centers: Data centers, which rely on constant power to prevent data loss or downtime, can use the TA16D4S1604TPE to ensure uninterrupted operation by switching to backup power sources during an outage.

• Residential Use: For large residential systems, especially those with backup generators, this ATS ensures that essential systems such as heating, cooling, and security remain powered during a power failure.
