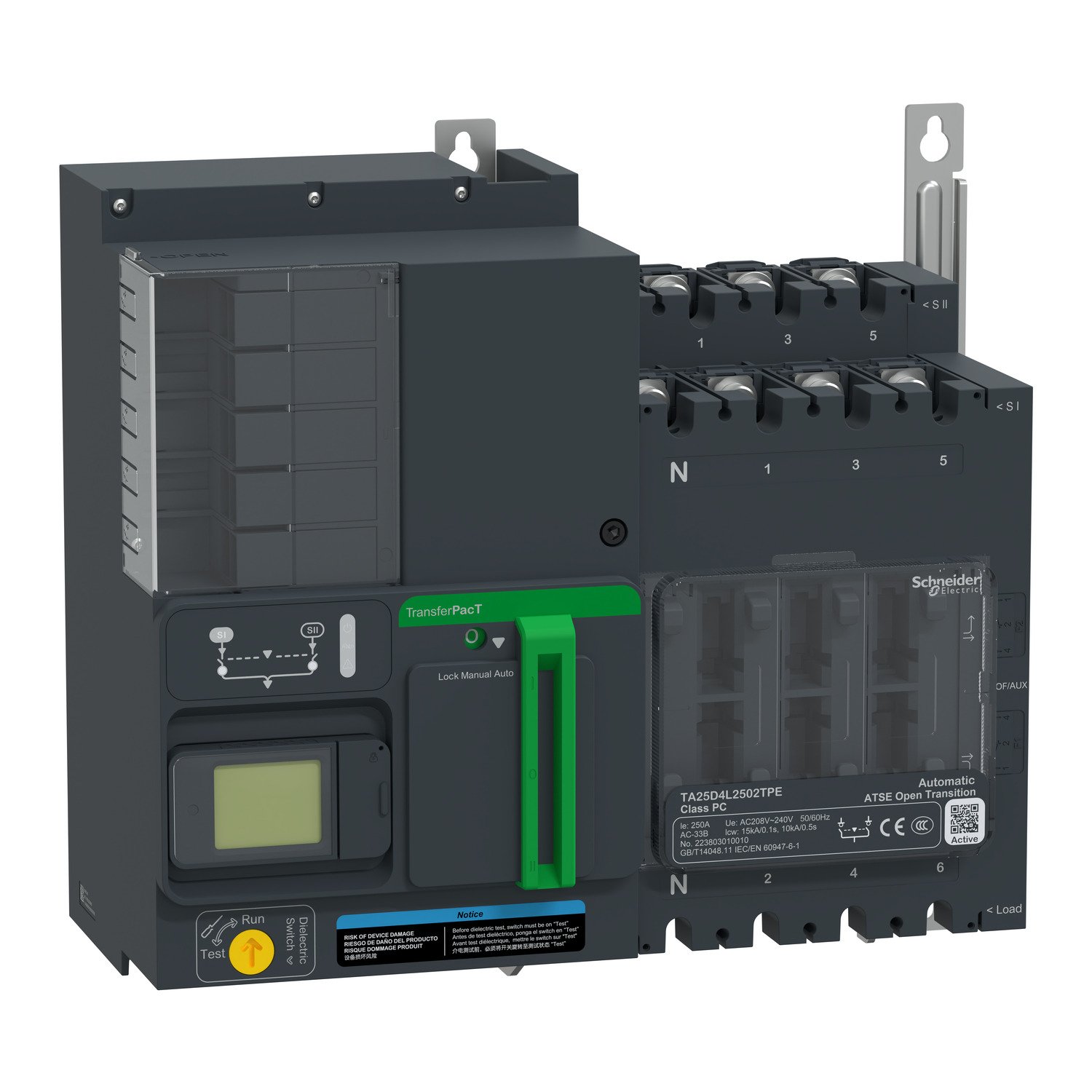

Schneider TA25D4L2502TPE | TransferPacT Active Automatic, 250A, 230V, 4P, LCD, frame

250A

Technical Specifications:

• Product Type: Active Automatic Transfer Switch (ATS)

• Series: TransferPacT

• Model: TA25D4L2502TPE

• Rated Current: 250 Amps

• Number of Poles: 4 Poles (4P), designed for three-phase systems with neutral.

• Voltage: 230V (compatible with low-voltage applications).

• Frame Size: 250A frame rating, offering flexibility for future upgrades.

• Display: LCD display for real-time monitoring of operational status, settings, and system health.

• Switching Mechanism: Active automatic switching to ensure continuous, uninterrupted power transfer.

• Protection: Includes overload protection, short-circuit protection, and fault detection for enhanced safety.

• Control Interface: Integrated control options for easy operation and monitoring.

. Features:

• 250A Power Rating: The TA25D4L2502TPE is rated for 250A, making it capable of handling moderate-to-heavy power loads, ideal for medium to large industrial and commercial applications.

• 4-Pole (4P) Configuration: The 4-pole design supports three-phase systems that require a neutral connection, ensuring safe and balanced power distribution.

• 230V Compatibility: With a 230V voltage rating, this ATS is designed for low-voltage applications, making it suitable for a wide range of systems.

• Active Automatic Switching: The active automatic switching feature allows the TA25D4L2502TPE to detect power failures and automatically switch to a backup power source, ensuring uninterrupted power for critical systems.

• LCD Display: The integrated LCD screen provides real-time feedback on the system’s operational status, including input/output voltage, load, and any fault conditions, enabling easier monitoring and diagnostics.

• Comprehensive Protection: The TA25D4L2502TPE is equipped with overload protection, short-circuit protection, and fault detection to safeguard the ATS and the connected equipment, ensuring safe operation.

• Flexible Frame Size: With a 250A frame, the unit allows for future upgrades and scalability, ensuring it can meet the needs of expanding power requirements.

• Seamless Power Transfer: The active automatic switching ensures that there is no interruption in power supply during failures, providing peace of mind and reliability for critical systems.

. Applications:

• Industrial Facilities: The TA25D4L2502TPE is perfect for industrial facilities like factories, manufacturing plants, and warehouses that require consistent power to operate machinery, control systems, and other vital equipment.

• Commercial Buildings: In commercial buildings such as shopping malls, office buildings, and hotels, this ATS ensures the continuous operation of lighting, HVAC systems, security systems, and other essential infrastructure during power outages.

• Data Centers: The TA25D4L2502TPE guarantees uninterrupted power for data centers, ensuring that critical IT infrastructure, servers, and networking systems remain online during power failures.

• Healthcare Facilities: In hospitals, clinics, and medical laboratories, this ATS ensures that life-saving equipment, patient monitoring systems, and other critical healthcare devices continue to operate during power interruptions, preventing service disruptions and ensuring patient safety.

• Telecommunications: This ATS is ideal for telecommunications systems, where it ensures continuous power for switching equipment, networking gear, and communications infrastructure, preventing service interruptions.

• Residential Complexes: For large residential complexes, the TA25D4L2502TPE guarantees uninterrupted power for essential services like lighting, HVAC, elevators, and security systems during outages.
