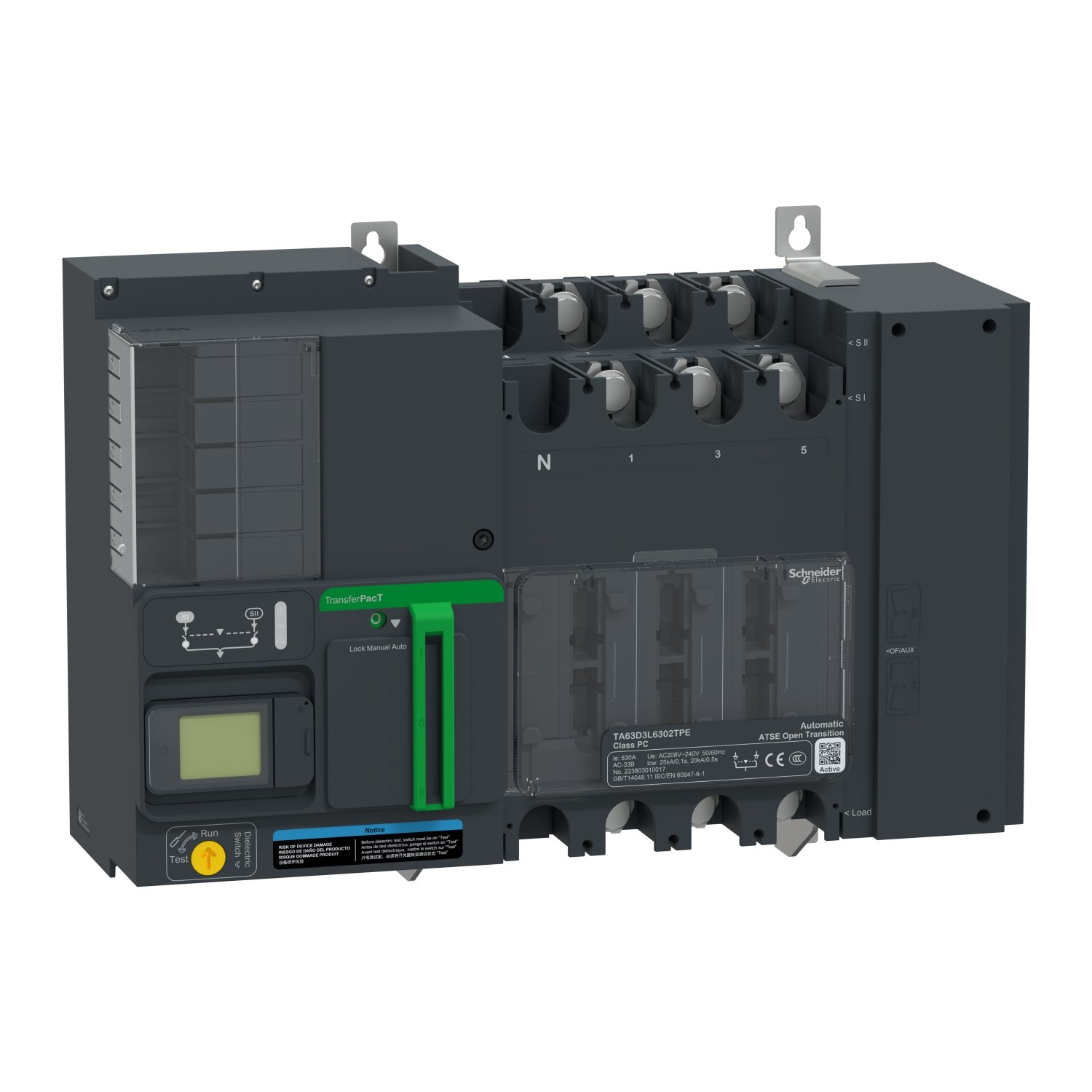

Schneider TA63D3L6302TPE | TransferPacT Active Automatic, 630A, 230V, 3P, LCD, frame

630A

Technical Specifications:

• Product Type: Active Automatic Transfer Switch (ATS)

• Series: TransferPacT

• Model: TA63D3L6302TPE

• Rated Current: 630 Amps

• Number of Poles: 3 Poles (3P) designed for three-phase systems.

• Voltage: 230V, optimized for low-voltage industrial and commercial systems.

• Frame Size: 630A frame rating, ensuring scalability for higher current needs.

• Display: LCD display for system monitoring, providing real-time feedback on operational data such as voltage, load, and fault conditions.

• Switching Mechanism: Active automatic switching to ensure the continuous supply of power during interruptions or failures.

• Protection Features: Includes overload protection, short-circuit protection, and fault detection for enhanced safety.

• Control Interface: Integrated controls for easy operation and monitoring of system status.

. Features:

• 630A Power Rating: The TA63D3L6302TPE is rated for 630A, making it capable of handling heavy industrial and commercial power loads. It is ideal for high-capacity power switching applications.

• 3-Pole (3P) Configuration: This model is designed with three-phase power in mind, offering balanced power distribution for critical industrial and commercial systems.

• 230V Compatibility: Operating at 230V, it is suitable for lower-voltage systems that require high power switching capacity, ensuring it meets the needs of many industrial and commercial facilities.

• Active Automatic Switching: The active automatic switching mechanism ensures that the TA63D3L6302TPE can instantly detect power failures or interruptions and automatically switch to a backup power source, maintaining operational continuity without manual intervention.

• LCD Display: The LCD screen displays vital information such as input/output voltages, load levels, and fault conditions, enabling operators to monitor the system’s performance in real-time and take action if necessary.

• Comprehensive Protection: The TA63D3L6302TPE features overload protection, short-circuit protection, and fault detection, ensuring the switch and connected equipment are safeguarded against electrical faults or disturbances.

• Flexible Frame Size: The 630A frame provides flexibility to meet the current demands of a variety of applications, while also supporting future expansions or upgrades.

• Seamless Integration: Designed for easy installation and integration into existing systems, the TA63D3L6302TPE is versatile enough for use in both new and retrofit installations.

. Applications:

• Industrial Applications: Ideal for heavy industrial settings such as factories, manufacturing plants, and processing facilities, the TA63D3L6302TPE ensures that critical machinery and equipment remain powered during electrical failures.

• Commercial Buildings: In large commercial buildings, shopping malls, and office complexes, this ATS ensures that essential systems, including lighting, HVAC, and security systems, continue to function without disruption during power outages.

• Data Centers: For data centers and telecommunications facilities, the TA63D3L6302TPE guarantees that IT infrastructure, including servers, network equipment, and communications systems, remain operational, preventing downtime and data loss.

• Healthcare Facilities: This ATS is crucial for hospitals, medical clinics, and laboratories, where reliable power is needed to ensure life-saving equipment, patient monitoring systems, and other medical devices are continuously operational.

• Utilities and Energy: In utilities, energy production, and critical infrastructure, the TA63D3L6302TPE ensures that key operational systems, such as pumps, generators, and control systems, continue running during power failures, ensuring service continuity.

• Commercial and Office Buildings: In large-scale office buildings, business parks, and shopping malls, the TA63D3L6302TPE is critical for maintaining operation of lighting, security systems, and HVAC systems during power interruptions.
