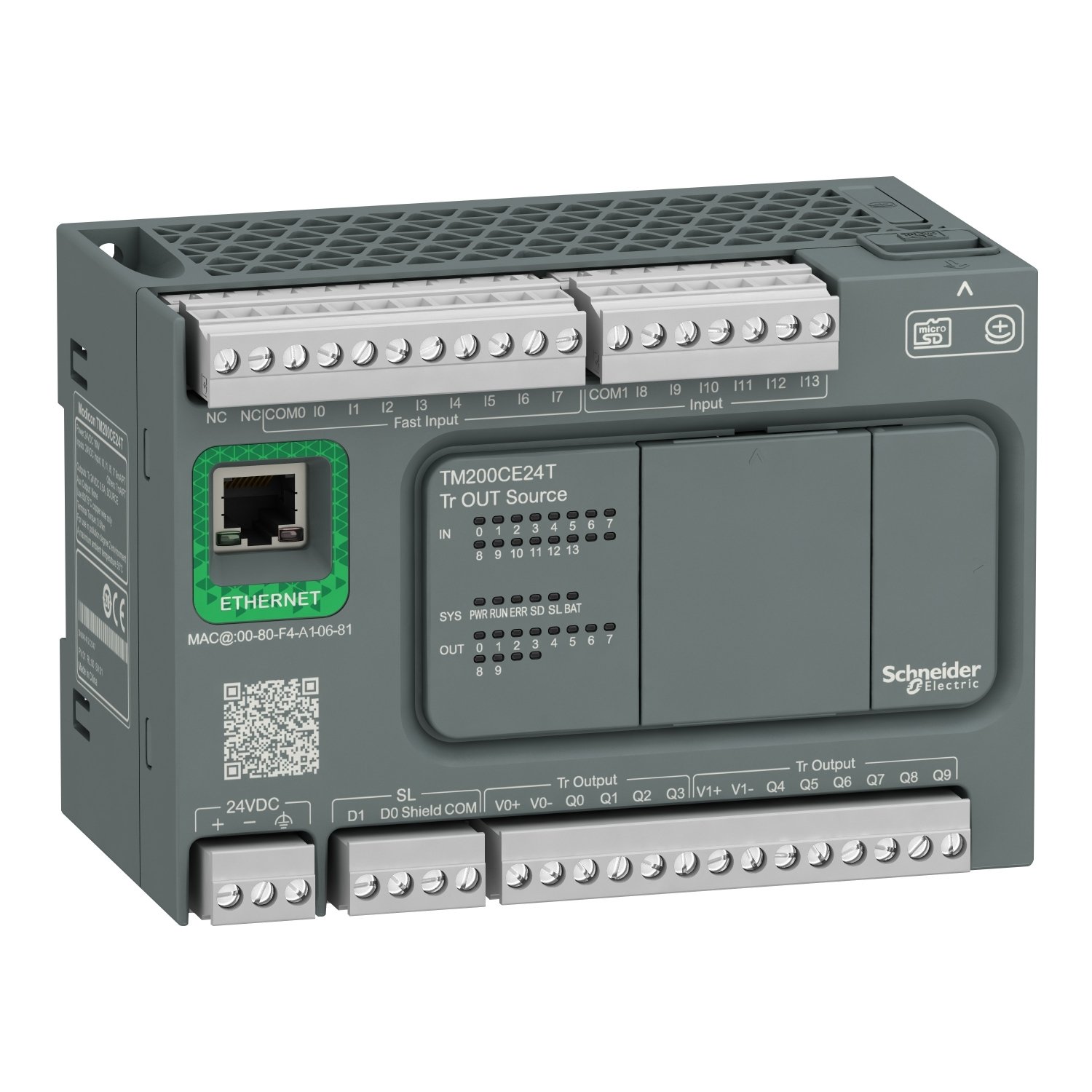

Schneider TM200CE24T | controller, Modicon Easy M200, 24 IO, transistor source, Ethernet
Schneider TM200CE24T | controller, Modicon Easy M200, 24 IO, transistor source, Ethernet
Original price was: EGP 307,344.00.EGP 16,904.00Current price is: EGP 16,904.00.
Description
Schneider TM200CE24T | controller, Modicon Easy M200, 24 IO, transistor source, Ethernet
Technical Specifications:
-
Number of I/O Points: The TM200CE24T PLC comes with a total of 24 I/O points, which include digital inputs and transistor source outputs. These I/O points are ideal for managing sensors, actuators, and other control devices in automation systems.
-
Transistor Source Outputs: The transistor source outputs allow for high-speed switching, which is suitable for controlling devices that require fast and reliable on/off signals. These outputs are more compact and energy-efficient compared to traditional relay outputs.
-
Power Supply: The TM200CE24T operates with a 24V DC power supply, which is common in industrial automation systems. This ensures compatibility with a wide range of devices and systems.
-
Ethernet Connectivity: The controller features built-in Ethernet communication, enabling seamless integration into industrial networks. Ethernet connectivity allows for remote monitoring, control, and programming of the PLC, as well as integration with other networked devices and systems such as SCADA systems or HMIs.
-
Programming and Configuration: The TM200CE24T is programmed using EcoStruxure Machine Expert Basic software, which supports IEC 61131-3 standard programming languages, including Ladder Logic, Structured Text, and Function Block Diagram. This user-friendly environment makes it easy to set up and configure the PLC for a variety of automation tasks.
-
Compact Design: Designed to be space-efficient, the TM200CE24T is compact and can be mounted in control panels or other systems with limited space, making it a great choice for environments where real estate is at a premium.
-
Industrial Reliability: The TM200CE24T is designed to withstand industrial environments, ensuring reliable and long-term operation in control and automation systems, even under harsh conditions.
Features:
-
Ethernet Communication: Built-in Ethernet connectivity allows for easy remote access and communication with other devices, making it ideal for applications where centralized control or monitoring is required. Ethernet also simplifies integration with SCADA systems and other PLCs.
-
Transistor Source Outputs: The use of transistor source outputs provides faster switching times, higher reliability, and greater energy efficiency compared to traditional relay-based outputs. These outputs are perfect for controlling devices that require frequent on/off switching.
-
Compact and Modular: The TM200CE24T controller is part of the Modicon Easy M200 series, which is known for its modular design. This allows users to add or expand I/O modules as needed, making the system highly adaptable and scalable for various automation tasks.
-
Wide Range of Applications: The 24 I/O points, combined with Ethernet connectivity, make the TM200CE24T versatile and capable of managing various tasks, from machine control and building automation to process control and industrial automation.
-
Flexible Programming: The EcoStruxure Machine Expert Basic software enables users to program the PLC using industry-standard languages, providing flexibility in designing the control logic and system behavior.
-
Space-Saving Design: The compact size of the TM200CE24T ensures that it can fit into smaller control cabinets, making it a good option for applications where space is limited.
Applications:
The Schneider TM200CE24T is ideal for various industrial, commercial, and automation applications, including:
-
Machine Control: Perfect for controlling small machines or equipment where space and budget are a concern, but performance and reliability are critical.
-
Building Automation: Useful for controlling building systems such as lighting, HVAC, and security systems, thanks to its flexible I/O points and Ethernet connectivity.
-
Industrial Automation: Excellent for use in small-to-medium industrial automation systems that require fast and reliable switching, monitoring, and control of sensors, actuators, and other devices.
-
Process Control: Ideal for applications where precise control and monitoring of processes are required, such as in material handling, production lines, or packaging systems.
-
IoT Systems: The Ethernet capability allows the TM200CE24T to be integrated into IoT-based automation systems, enabling remote access, control, and monitoring
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Modicon M200 |
|---|---|
| Product or component type | Logic controller |
| [Us] rated supply voltage | 24 V DC |
| Discrete I/O number | 24 |
| Discrete input number | I2...I5: 4 fast input I0, I1, I6, I7: 4 high speed input I8...I13: 6 regular input |
| Discrete output number | Q0...Q1: 2 fast output (PLS/PWM/PTO mode) Q2...Q9: 8 transistor output |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete input current | 7 mA for input |
| Discrete input logic | Sink or source (positive/negative) type 1 conforming to IEC 61131-2 |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 A |
| Discrete output type | Transistor |
| Discrete output logic | Positive logic (source) |
| Power consumption in W | 16 W at 24 V DC (with max I/O) |
| Maximum number of I/O expansion module | 4 with 64 discrete output(s) for relay output 4 with 138 discrete output(s) for transistor output |
|---|---|
| Supply voltage limits | 20.4…28.8 V |
| Inrush current | 35 A |
| Voltage state 1 guaranteed | >= 15 V for input |
| Voltage state 0 guaranteed | <= 5 V for input |
| Input impedance | 3.3 kOhm for discrete input |
| Response time | 1 ms turn-on, Q0...Q9 terminal(s) for output 1 ms turn-off, Q0...Q9 terminal(s) for output 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input 100 µs turn-off, I2...I5 terminal(s) for fast input 35 µs turn-on, I2...I5 terminal(s) for fast input 100 µs turn-off, I8...I13 terminal(s) for regular input 35 µs turn-on, I8...I13 terminal(s) for regular input |
| Configurable filtering time | 0 ms for input 3 ms for input 12 ms for input |
| Maximum current per output common | 2 A at COM 0 3 A at COM 1 |
| Output frequency | 100 kHz for fast output (PWM/PLS mode) at Q0...Q1 |
| Maximum leakage current | 0.1 mA for transistor output |
| Maximum voltage drop | <1 V |
| Maximum tungsten load | <12 W for output and fast output |
| Protection type | Overload and short-circuit protection at 2 A |
| Reset time | 1 s automatic reset |
| Memory capacity | 512 byte internal flash for backup of programs |
| Data storage equipment | 32 GB micro SD card (optional) |
| Battery type | BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s) |
| Backup time | 3 years at 25 °C (by interruption of power supply) |
| Execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| Execution time per instruction | 0.2 µs Boolean |
| Exct time for event task | 60 µs response time |
| Clock drift | <= 90 s/month at 25 °C |
| Regulation loop | Adjustable PID regulator up to 14 simultaneous loops |
| Positioning functions | PWM/PLS 2 channel(s) at 100 kHz |
| Control signal type | Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode) Pulse/direction at 100 kHz for fast input (HSC mode) Single phase at 100 kHz for fast input (HSC mode) CW/CCW at 100 kHz for fast input (HSC mode) |
| Counting input number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Integrated connection type | USB port with mini B USB 2.0 connector Non isolated serial link serial 1 with terminal block connector and RS485 interface Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface Isolated serial link serial 2 with terminal block connector and RS485 interface |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 12 Mbit/s for USB 10/100 Mbit/s for bus length of 100 m for Ethernet Modbus TCP/IP |
| Communication port protocol | USB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network Ethernet Modbus TCP/IP: Modbus TCP/IP client/server |
| Local signalling | 1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED per channel (green) for I/O state 2 LEDs (green) for communication (LK/ACT 10/100) |
| Electrical connection | Mini B USB 2.0 connectorfor a programming terminal RJ45 connectorfor connecting Ethernet network removable screw terminal blockfor inputs removable screw terminal blockfor outputs removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply removable screw terminal block, 4 terminal(s) for connecting the serial link1 |
| Maximum cable distance between devices | Unshielded cable: <50 m for input Shielded cable: <10 m for fast input Shielded cable: <10 m for high speed input Unshielded cable: <150 m for output |
| Insulation | Non-insulated between inputs Between input and internal logic at 500 V AC Between fast input and internal logic at 500 V AC Between input groups at 500 V AC Between output and internal logic at 500 V AC Between output groups at 500 V AC Between supply and internal logic at 500 V DC |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 130 mm |
| Net weight | 0.424 kg |
| IP degree of protection | IP20 with protective cover in place |
|---|---|
| Standards | IEC 61131-2 IEC 61010-2-201 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011 Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 |
| Shock resistance | 15 gn for 11 ms 30 gn for 6 ms |
| Immunity to microbreaks | 2 ms |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on symmetrical rail 1 gn at 8.4…150 Hz on symmetrical rail 3.5 mm at 5…8.7 Hz on panel mounting 2 gn at 8.7…150 Hz on panel mounting |
| Relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| Ambient air temperature for operation | 0…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Pollution degree | <= 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.6 cm |
| Package 1 Width | 9.0 cm |
| Package 1 Length | 13.8 cm |
| Package 1 Weight | 620.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 8.105 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 80.0 cm |
| Package 3 Width | 120.0 cm |
| Package 3 Length | 105.0 cm |
| Package 3 Weight | 203.52 kg |
