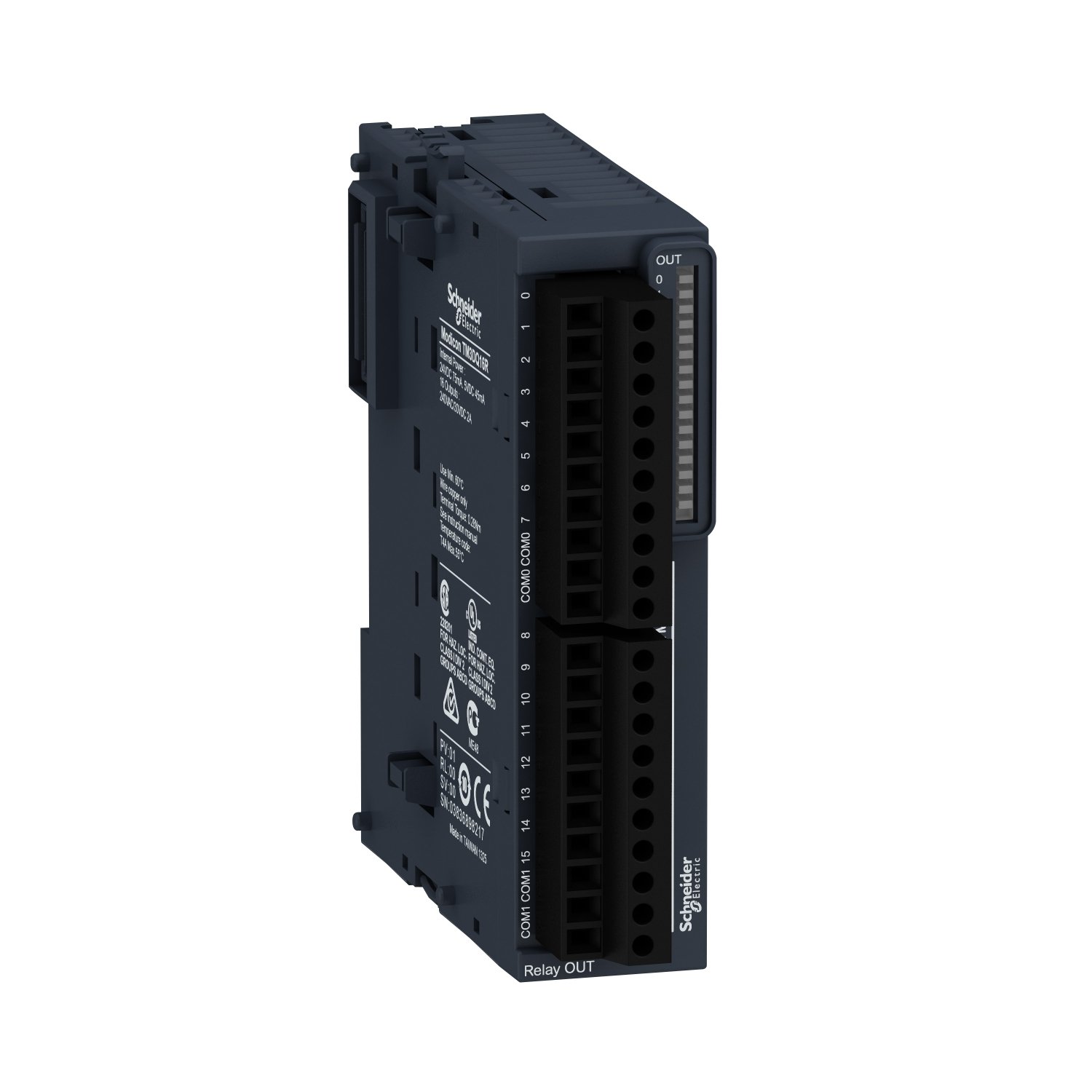

Schneider TM3DQ16R | Modicon TM3 – 16 relay outputs (screw) 24Vdc
Schneider TM3DQ16R | Modicon TM3 – 16 relay outputs (screw) 24Vdc
Original price was: EGP 138,738.00.EGP 80,469.00Current price is: EGP 80,469.00.
Description
Schneider TM3DQ16R | Modicon TM3 – 16 relay outputs (screw) 24Vdc
Technical Specifications of Schneider TM3DQ16R
- Model: TM3DQ16R
- Series: Modicon TM3
- Outputs: 16 relay outputs
- Output Type: Relay (NO/NC contacts)
- Switching Capacity:
- AC loads: Up to 250V AC
- DC loads: Up to 30V DC
- Connection Type: Screw terminals
- Power Supply: 24V DC
- Compatibility: Compatible with Modicon M221, M241, M251 PLCs
- Mounting Type: DIN rail
Key Features
1. High-Capacity Relay Outputs for Versatile Control
- Provides 16 relay outputs, allowing control of multiple devices.
- Supports both AC and DC loads, making it ideal for various industrial applications.
2. Reliable and Safe Switching
- Each relay output can switch up to 250V AC or 30V DC, providing flexible control over different electrical devices.
- Designed for long-lasting durability and stable operation in industrial environments.
3. Easy Installation with Screw Terminals
- Screw terminal connections ensure secure and easy wiring.
- Supports DIN rail mounting, making installation quick and convenient.
4. Seamless Integration with Modicon PLCs
- Fully compatible with Modicon M221, M241, and M251 PLCs, allowing for easy expansion.
- Configurable using EcoStruxure Machine Expert – Basic, simplifying programming and system setup.
5. Robust Performance for Industrial Applications
- Operates on 24V DC, ensuring safe and energy-efficient operation.
- Built-in electrical isolation between outputs for enhanced safety and reliability.
Applications
The Schneider TM3DQ16R is ideal for expanding output capacity in industrial automation applications, including:
Motor and Pump Control – Switching motors, fans, and water pumps.
Industrial Lighting Systems – Controlling warehouse and factory lighting.
Solenoid and Valve Control – Operating hydraulic and pneumatic systems.
Building Automation – Managing HVAC and electrical systems.
Production Line Automation – Enhancing control over conveyors and packaging systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Discrete output module |
| Range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete output type | Relay normally open |
| Discrete output number | 16 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 240 V AC for relay output 30 V DC for relay output |
| Discrete output current | 2000 mA for relay output |
| Discrete I/O number | 16 |
|---|---|
| Current consumption | 0 mA at 24 V DC via bus connector (at state off) 75 mA at 24 V DC via bus connector (at state on) |
| Response time | 10 ms (turn-on) 5 ms (turn-off) |
| Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA at 5 V DC for relay output |
| Local signalling | 1 LED per channel (green) for output status |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for relay output |
| Insulation | Between output and internal logic at 2300 V AC Between outputs at 750 V AC Between output groups at 1500 V AC |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height | 90 mm |
| Depth | 84.6 mm |
| Width | 27.4 mm |
| Product weight | 0.145 kg |
| Standards | IEC 61131-2 |
|---|---|
| Product certifications | cULus CE UKCA RCM EAC cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2 4 kV on contact conforming to IEC 61000-4-2 |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3 |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to IEC 61000-4-8 |
| Resistance to fast transients | 2 kV for relay output conforming to IEC 61000-4-4 |
| Surge withstand | 1 kV I/O common mode conforming to IEC 61000-4-5 DC |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…35 °C vertical installation -10…55 °C horizontal installation |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.426 cm |
| Package 1 Width | 10.516 cm |
| Package 1 Length | 12.583 cm |
| Package 1 Weight | 248.9 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 12.0 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 75 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 136 kg |
