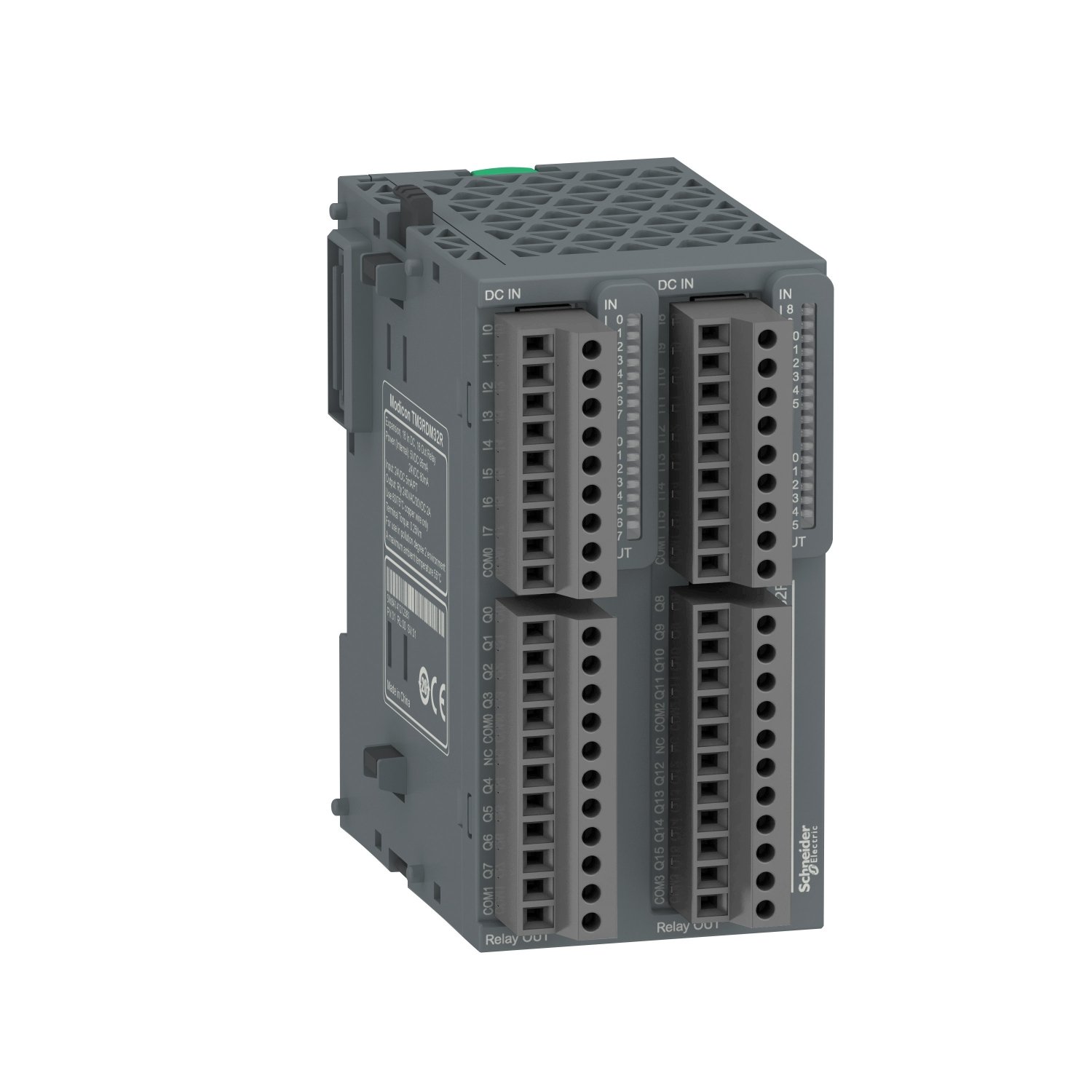

Schneider TM3RDM32R | Discrete I/O module, Modicon TM3, 32 IO (16 digital inputs, 16 digital outputs, screw)
Schneider TM3RDM32R | Discrete I/O module, Modicon TM3, 32 IO (16 digital inputs, 16 digital outputs, screw)
Original price was: EGP 2,637,960.00.EGP 1,450,878.00Current price is: EGP 1,450,878.00.
Description
Schneider TM3RDM32R | Discrete I/O module, Modicon TM3, 32 IO (16 digital inputs, 16 digital outputs, screw)
Technical Specifications
-
Model: TM3RDM32R
-
Device Type: Discrete I/O expansion module
-
Compatible PLCs: Modicon M221, M241, M251
-
Number of Inputs: 16 digital inputs
-
Number of Outputs: 16 relay outputs
-
Input Voltage: 24V DC
-
Output Type: Relay outputs (supports AC and DC loads)
-
Connection Type: Screw terminal connections
-
Mounting: DIN rail mounting
-
Protection Rating: IP20 (for indoor industrial environments)
-
Operating Temperature Range: -10°C to 55°C
Key Features
-
Expanded Digital I/O Capacity
-
Provides 16 digital inputs and 16 relay outputs to support complex automation tasks.
-
Enables control of multiple devices, such as sensors, motors, and actuators, from a single PLC.
-
-
Flexible Relay Outputs
-
Relay-based outputs allow switching of both AC and DC loads, making it highly versatile.
-
Suitable for controlling lighting, solenoids, pumps, and industrial equipment.
-
-
Easy Integration with Modicon PLCs
-
Seamlessly integrates with Modicon M221, M241, and M251 PLCs via the TM3 expansion bus.
-
No additional configuration required—plug-and-play installation.
-
-
Robust Industrial Design
-
IP20-rated enclosure ensures durability in industrial environments.
-
Wide operating temperature range (-10°C to 55°C) for reliable performance in demanding conditions.
-
-
Screw Terminal Connections for Secure Wiring
-
Ensures a strong and reliable electrical connection for industrial applications.
-
Applications & Use Cases
The Schneider TM3RDM32R is widely used in industrial automation applications, including:
-
Machine Automation
-
Controlling motors, conveyors, and industrial robots.
-
-
Building & Lighting Control
-
Managing lighting, HVAC systems, and security systems.
-
-
Manufacturing Process Automation
-
Expanding I/O capacity for assembly lines and industrial equipment.
-
-
Water & Wastewater Treatment
-
Automating pump and valve control systems.
-
-
Smart Agriculture & Irrigation
-
Managing irrigation pumps and greenhouse automation.
-
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Discrete I/O module |
| Range compatibility | Modicon Easy M200 |
| Discrete input number | 16 for input conforming to IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 5 mA for input |
| Discrete output type | Relay normally open |
| Discrete output number | 16 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC for relay output 240 V AC for relay output |
| Discrete output current | 2000 mA for relay output |
| Discrete I/O number | 32 |
|---|---|
| Current consumption | 80 mA at 24 V DC via bus connector (at state on) 95 mA at 5 V DC via bus connector (at state on) |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15...28.8 V for input |
| Current state 1 guaranteed | >= 2.5 mA (input) |
| Voltage state 0 guaranteed | 0...5 V for input |
| Current state 0 guaranteed | <= 1 mA (input) |
| Input impedance | 4.7 kOhm |
| Response time | 4 ms (turn-on) 4 ms (turn-off) |
| Maximum current per output common | 4 A |
| Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA at 5 V DC for relay output |
| Local signalling | 1 LED per channel (green) for I/O state |
| Electrical connection | 11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs 9 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| Maximum cable distance between devices | Unshielded cable: <50 m for input Unshielded cable: <150 m for output |
| Insulation | Between input and internal logic at 500 V AC Non-insulated between inputs Between input groups and output groups at 1500 V AC Between open contact at 750 V AC Between output and internal logic at 500 V AC Non-insulated between outputs |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height | 90 mm |
| Depth | 84.6 mm |
| Width | 51 mm |
| Net weight | 0.208 kg |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2 6 kV on contact conforming to IEC 61000-4-2 |
|---|---|
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to IEC 61000-4-8 |
| Resistance to fast transients | 2 kV for relay output conforming to IEC 61000-4-4 1 kV for input conforming to IEC 61000-4-4 |
| Surge withstand | 2 kV output common mode conforming to IEC 61000-4-5 1 kV input common mode conforming to IEC 61000-4-5 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to IEC 61000-4-6 |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | 0…55 °C horizontal installation |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 1 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.7 Hz on panel 2 gn at 8.7…150 Hz on panel |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.4 cm |
| Package 1 Width | 7.2 cm |
| Package 1 Length | 10.3 cm |
| Package 1 Weight | 292 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 26 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 8092 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 624 |
| Package 3 Height | 80 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 105 cm |
| Package 3 Weight | 203208 g |
