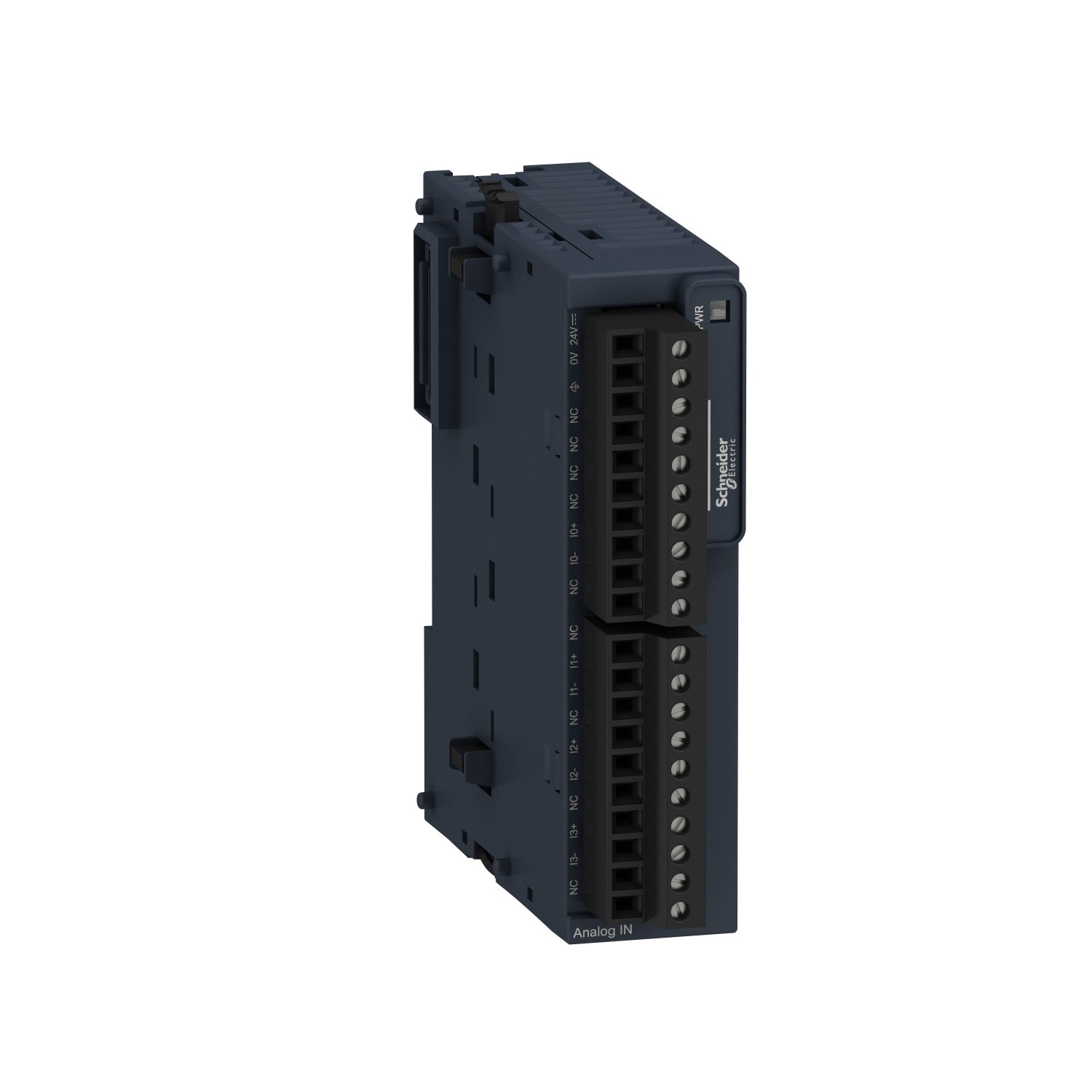

Schneider TM3TI4 | Modicon TM3 – 4 analog / temperature inputs (screw) 24Vdc
Schneider TM3TI4 | Modicon TM3 – 4 analog / temperature inputs (screw) 24Vdc
Original price was: EGP 205,656.00.EGP 119,281.00Current price is: EGP 119,281.00.
Description
Schneider TM3TI4 | Modicon TM3 – 4 analog / temperature inputs (screw) 24Vdc
The Schneider TM3TI4 is a compact analog and temperature input module from the Modicon TM3 expansion series, designed to enhance the analog input capabilities of Modicon M221, M241, and M251 PLCs. It provides high-precision monitoring of analog signals or temperature inputs in industrial automation systems.
General Overview
-
Product Name: TM3TI4
-
Series: Modicon TM3
-
Function: Analog / temperature input module
-
Input Type: 4 analog or temperature inputs
-
Input Signal Type: RTD, thermocouples, voltage, current (configurable)
-
Mounting: DIN rail
-
Connection Type: Screw terminal block
-
Power Supply: 24 V DC
Main Features
-
Number of Inputs: 4 configurable analog or temperature inputs
-
Signal Types Supported:
-
Thermocouples (J, K, T, etc.)
-
RTDs (Pt100, Pt1000, Ni100, Ni1000)
-
Voltage (0–10 V, ±10 V)
-
Current (0–20 mA, 4–20 mA)
-
-
Input Resolution: 16 bits
-
Conversion Time: < 10 ms per channel
-
Isolation: Channel-to-bus and channel-to-channel isolation
-
Cold Junction Compensation: Integrated (for thermocouples)
Electrical Specifications
-
Supply Voltage: 24 V DC
-
Current Consumption: ~35 mA at 5 V from PLC bus
-
Input Impedance:
-
Voltage: ≥ 100 kΩ
-
Current: 250 Ω (internal shunt)
-
-
Common Mode Rejection: > 100 dB
-
Galvanic Isolation: Yes (between channels and backplane)
Mechanical & Environmental
-
Mounting Type: DIN rail (35 mm)
-
Terminal Type: Screw connectors
-
Module Width: 23.5 mm
-
Operating Temperature: -10°C to +55°C
-
Storage Temperature: -40°C to +70°C
-
Degree of Protection: IP20
-
Standards: IEC 61131-2 compliant
Certifications
-
Certifications: CE, cULus, EAC
-
EMC Compliance: EN/IEC 61000-6-2 and EN/IEC 61000-6-4
-
Pollution Degree: 2
Applications
-
Process temperature monitoring and control
-
HVAC systems
-
Food and beverage automation
-
Machine building (OEMs)
-
Industrial process control with analog sensors
Advantages
-
Flexible analog/temperature input options
-
Compact design fits easily into control panels
-
High accuracy and noise immunity
-
Seamless integration with Modicon M221/M241/M251 PLCs
-
Ideal for applications needing mixed input types (thermocouple + RTD + analog)
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Analog input module |
| Range compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| Analogue input number | 4 |
| Analogue input type | current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V thermocouple - 200...1000 °C with thermocouple J thermocouple - 200...1300 °C with thermocouple K thermocouple 0...1760 °C with thermocouple R thermocouple 0...1760 °C with thermocouple S thermocouple 0...1820 °C with thermocouple B thermocouple - 200...400 °C with thermocouple T thermocouple - 200...1300 °C with thermocouple N thermocouple - 200...800 °C with thermocouple E thermocouple 0...2315 °C with thermocouple C Ni 100/Ni 1000 temperature probe - 60...180 °C Pt 100 temperature probe - 200...850 °C Pt 1000 temperature probe - 200...600 °C |
| Analogue input resolution | 16 bits 15 bits + sign |
|---|---|
| Permissible continuous overload | 13 V, analogue input type: voltage 40 mA, analogue input type: current |
| Input impedance | <= 50 Ohm current >= 1 MOhm voltage >= 1 MOhm thermocouple >= 1 MOhm temperature probe |
| LSB value | 2.44 mV 0...10 Vvoltage 4.88 mV - 10...10 Vvoltage 4.88 µA 0...20 mAcurrent 3.91 µA 4...20 mAcurrent 0.1 °Ctemperature probe 0.1 °Cthermocouple |
| Conversion time | 100 ms + 100 ms per channel + 1 controller cycle time for analogue input thermocouple 100 ms + 100 ms per channel + 1 controller cycle time for analogue input temperature probe 10 ms + 10 ms per channel + 1 controller cycle time for analogue input voltage/current |
| Sampling duration | 10 ms, analogue input type: voltage/current 100 ms, analogue input type: voltage/current 100 ms, analogue input type: thermocouple 100 ms, analogue input type: temperature probe |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C for analogue input voltage/current +/- 0.2 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C |
| Temperature drift | +/- 0.01 %FS/°C |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Type of cable | Twisted shielded pairs cable <30 m for input circuit |
| Current consumption | 45 mA at 5 V DC via bus connector 50 mA at 5 V DC via bus connector 35 mA at 24 V DC via external supply 40 mA at 24 V DC via external supply |
| Local signalling | 1 LED (green) for PWR |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| Insulation | Between input and supply at 1500 V AC Between input and internal logic at 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV power supply common mode conforming to IEC 61000-4-5 0.5 kV power supply differential mode conforming to IEC 61000-4-5 1 kV input common mode conforming to IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 23.6 mm |
| Product weight | 0.11 kg |
| Standards | IEC 61131-2 |
|---|---|
| Product certifications | CE UKCA RCM EAC cULus cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2 4 kV on contact conforming to IEC 61000-4-2 |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3 |
| Resistance to magnetic fields | 30 A/m conforming to IEC 61000-4-8 |
| Resistance to fast transients | 1 kV (I/O) conforming to IEC 61000-4-4 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | -10…55 °C horizontal installation -10…35 °C vertical installation |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 |
| pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 12.500 cm |
| Package 1 Weight | 215.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.330 kg |
