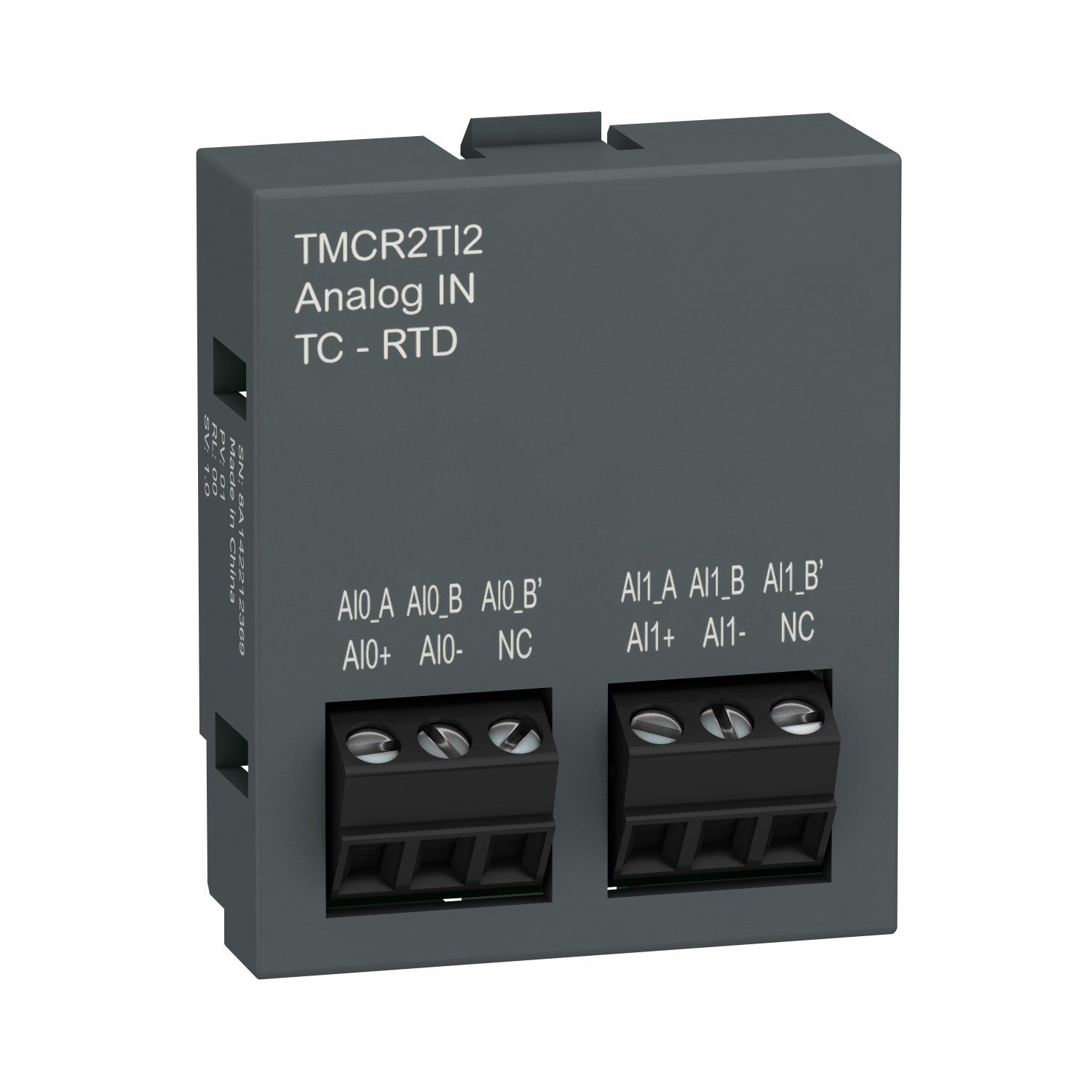

Schneider TMCR2TI2 | cartridge M200 – 2 temperature inputs – I/O extension
Schneider TMCR2TI2 | cartridge M200 – 2 temperature inputs – I/O extension
Original price was: EGP 98,864.00.EGP 54,375.00Current price is: EGP 54,375.00.
Description
Schneider TMCR2TI2 | cartridge M200 – 2 temperature inputs – I/O extension
Technical Specifications
- Brand: Schneider Electric
- Model: TMCR2TI2
- Type: I/O Extension Cartridge
- Compatible Controller: Modicon M200
- Number of Inputs: 2 temperature inputs
- Supported Sensor Types: Thermocouples and RTDs (Resistance Temperature Detectors)
- Temperature Measurement: High-accuracy input processing for industrial applications
- Communication: Seamlessly integrates with the M200 controller for real-time data acquisition
- Mounting: Directly attaches to the M200 controller
- Dimensions: Compact size for space-efficient integration
- Material: Industrial-grade components for durability and longevity
Key Features
- Enhanced Temperature Monitoring
- Supports two temperature inputs, making it suitable for applications that require precise thermal management.
- Seamless Integration with Modicon M200
- Designed specifically to extend the capabilities of the M200 logic controller, allowing for better process control.
- Versatile Sensor Compatibility
- Supports multiple types of temperature sensors, including thermocouples and RTDs, providing flexibility for different applications.
- Reliable Industrial Performance
- Built with high-quality materials to withstand harsh industrial environments.
- Compact and Space-Saving Design
- Small form factor allows for easy installation without taking up additional panel space.
- Real-Time Data Processing
- Ensures accurate and fast temperature readings for improved automation control.
Applications
- Industrial Process Automation: Used in manufacturing plants to monitor and control temperature-sensitive processes.
- HVAC Systems: Helps regulate heating, ventilation, and air conditioning in large-scale facilities.
- Food & Beverage Industry: Ensures precise temperature control in food processing and storage.
- Pharmaceutical Production: Critical for maintaining stable environmental conditions in drug manufacturing.
- Energy & Power Plants: Monitors temperature fluctuations in turbines, generators, and other electrical components.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Modicon M200 |
|---|---|
| Product or component type | Analogue input cartridge |
| Product compatibility | Easy Modicon M200 |
| Analogue input number | 2 |
| Analogue input type | thermocouple - 200...1000 °C with thermocouple J thermocouple - 200...1300 °C with thermocouple K thermocouple 0...1760 °C with thermocouple R thermocouple 0...1760 °C with thermocouple S thermocouple 0...1820 °C with thermocouple B thermocouple - 200...400 °C with thermocouple T thermocouple - 200...1300 °C with thermocouple N thermocouple - 200...800 °C with thermocouple E thermocouple 0...2315 °C with thermocouple C Ni 100/Ni 1000 temperature probe - 60...180 °C Pt 100 temperature probe - 200...850 °C Pt 1000 temperature probe - 200...600 °C |
|---|---|
| Analogue input resolution | 14 bits |
| LSB value | 0.1 °C |
| Sampling duration | 125 ms, analogue input type: thermocouple 250 ms, analogue input type: temperature probe |
| Absolute accuracy error | +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C +/- 0.1 % of full scale for thermocouple C |
| Temperature drift | +/- 0.02 %FS/°C |
| Repeat accuracy | +/- 0.5 %FS |
| Non-linearity | +/- 0.01 %FS |
| Cross talk | <= 1 LSB |
| type of cable | Twisted shielded pairs cable |
| Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs |
| Maximum cable distance between devices | Twisted shielded pairs cable: <30 m for input |
| Insulation | Non-insulated between analogue input and internal logic |
| Height | 41 mm |
| Depth | 15 mm |
| Width | 35 mm |
| Net weight | 0.012 kg |
| Input impedance | >= 1 MOhm |
| Immunity to microbreaks | 10 ms |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 4.800 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 33.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 75 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.735 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 51.760 kg |
