1. Technical Specifications

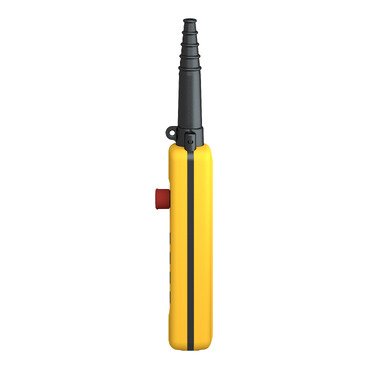

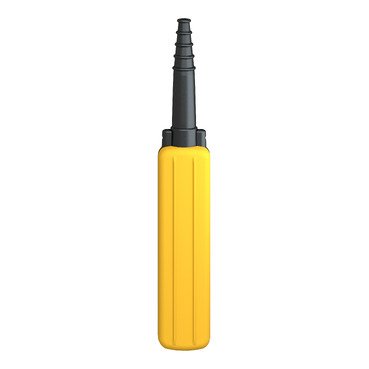

• Model: Schneider XACA4713
• Product Type: Pendant Control Station
• Series: XAC-A
• Number of Pushbuttons: 4
• Number of Emergency Stop Buttons: 1
• Voltage Rating: Compatible with standard industrial voltages
• Protection Rating: IP65 (dustproof and water-resistant)
• Mounting Type: Pendant (suspended for manual control)
• Color: Typically available in yellow or other standard colors for high visibility
• Applications: Designed for use in various industrial and automation environments
• Material: High-strength, durable material designed to withstand industrial wear and tear
• Connection Type: Electrical terminals for easy integration into control circuits

2. Key Features

A. 4 Pushbuttons for Versatile Control

• The XACA4713 pendant control station features 4 pushbuttons, allowing for versatile control of various functions in industrial systems, such as starting or stopping machinery, adjusting speed, or controlling other operations in the system.

B. Emergency Stop Button for Safety

• The emergency stop button is a critical feature of the pendant station, ensuring that the system can be safely shut down in case of emergency. This E-stop feature is designed to quickly halt operations and prevent accidents or further damage.

C. IP65 Protection Rating

• With an IP65 rating, the XACA4713 pendant control station is dustproof and water-resistant, making it suitable for use in environments where exposure to dust, moisture, or harsh conditions is a concern. This feature ensures the unit operates reliably even in industrial environments.

D. Pendant Mounting for Easy Operation

• The pendant mounting design allows for manual control of equipment from a distance, providing mobility and flexibility to the operator. This is ideal for machinery or systems that require frequent manual adjustments or supervision during operation.

E. Durable and Ergonomic Design

• Constructed from high-quality materials, the XACA4713 pendant control station is built to withstand frequent handling, harsh conditions, and physical stress. The ergonomic design ensures that it is comfortable to use during long shifts, reducing operator fatigue.

3. Applications and Uses

The Schneider XACA4713 pendant control station is ideal for use in various industrial settings where reliable and efficient control is needed. Some key applications include:

A. Manufacturing and Production Lines

• This pendant control station is commonly used in production lines, assembly stations, or machinery setups where operators need to control equipment or machinery from a safe distance. The 4 pushbuttons can be used for different functions, and the emergency stop button ensures quick shutdown in case of an emergency.

B. Crane and Hoist Control

• In overhead cranes, hoists, or lifting equipment, the XACA4713 is used to control the movement of loads, adjust lifting speeds, or activate safety features. The emergency stop feature is particularly important in these applications to prevent accidents.

C. Conveyor Systems

• For conveyor systems in warehouses or factories, this pendant control station allows operators to control the speed, direction, or starting and stopping of the conveyors. The ability to easily stop the system with the emergency stop button adds an extra layer of safety.

D. Automated Machinery

• The XACA4713 is well-suited for controlling automated machines that require manual overrides or adjustments. The station’s pushbuttons can be customized for various operations, allowing for a flexible and efficient control solution.

E. Maintenance and Service Applications

• Maintenance personnel often use pendant control stations to manually control equipment for testing, diagnostics, or maintenance tasks. The XACA4713 provides the necessary controls with the added benefit of an emergency stop button for safety during servicing.
