schneider XB7NH31 | Monolithic push button, plastic, green, Ø22, push and push to release, unmarked, 1 NO
schneider XB7NH31 | Monolithic push button, plastic, green, Ø22, push and push to release, unmarked, 1 NO
Original price was: EGP 3,622.00.EGP 2,101.00Current price is: EGP 2,101.00.
Description

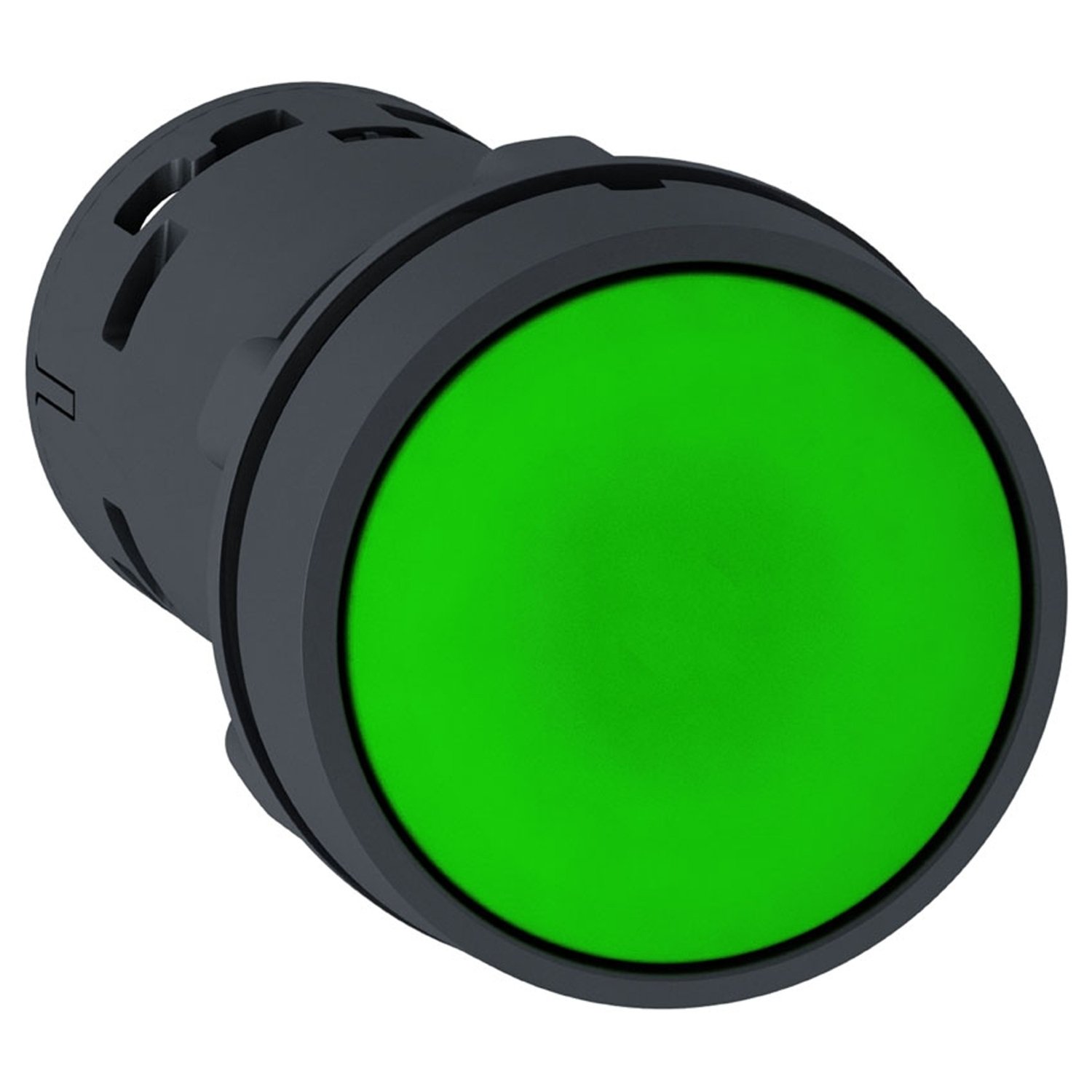

schneider XB7NH31 | Monolithic push button, plastic, green, Ø22, push and push to release, unmarked, 1 NO
Schneider XB7NH31 – Monolithic Push Button Overview
The Schneider XB7NH31 is a durable, compact, and user-friendly push button designed for control panels and operator interfaces. It belongs to the Harmony XB7 series and offers reliable performance in industrial environments.
General Description
-
Product Name: XB7NH31
-
Product Type: Monolithic push button
-
Series: Harmony XB7
-
Function: Push and push-to-release
-
Actuator Color: Green
-
Marking: Unmarked (plain cap)
-
Operator Profile: Flush round head
Main Features
-
Action Type: Momentary push and push-to-release
-
Number of Contacts: 1 NO (Normally Open)
-
Mounting Hole Diameter: Ø 22 mm
-
Material: Plastic body and operator
-
Front Ring Color: Black
-
IP Protection Rating: IP65 (dust tight and water jet resistant)
Electrical Specifications
-
Contact Type: Snap action, silver alloy
-
Rated Operational Current (AC-15): 3 A at 240 V
-
Rated Operational Current (DC-13): 0.27 A at 250 V
-
Electrical Durability: Over 1,000,000 operations
-
Insulation Voltage: 250 V
-
Short-Circuit Protection: 10 A fuse type gG
Mechanical Characteristics
-
Mounting Type: Panel-mounted (Ø22 mm cut-out)
-
Connection: Screw clamp terminals
-
Tightening Torque: 1 N·m max
-
Mechanical Durability: 5,000,000 cycles
-
Operating Force: Approx. 4 N
-
Operating Travel: 4.3 mm
-
Operating Temperature Range: -25°C to +70°C
Certifications & Standards
-
Standards Complied:
-
IEC 60947-5-1
-
UL 508
-
CSA C22.2 No 14
-
-
Certifications: CE, UL, CSA
-
Pollution Degree: 3
-
Dielectric Strength: 2.5 kV (between contacts and ground)
Applications
-
Industrial control panels
-
Start/stop machine operations
-
Operator control stations
-
Electrical enclosures and equipment panels
-
OEM machinery and automation systems
Key Benefits
-
Space-saving monolithic design
-
Reliable operation in harsh environments
-
Quick and secure installation
-
High mechanical and electrical durability
-
IP65 protection ensures rugged performance
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XB7 |
|---|---|
| Product or component type | Push-button |
| Device short name | XB7 |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 10 |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 |
| Shape of signaling unit head | Round |
| Type of operator | push and push-to-release |
| Operator profile | Green flush |
| Contacts type and composition | 1 NO |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Device presentation | Monolithic product |
| CAD overall width | 29 mm |
|---|---|
| CAD overall height | 29 mm |
| CAD overall depth | 51.5 mm |
| Terminals description ISO n°1 | (21-22)NC (13-14)NO |
| Product weight | 0.021 kg |
| Device mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| Marking | Unmarked |
| Contact operation | Slow-break |
| Positive opening | With NC contact conforming to IEC 60947-5-1 appendix K |
| Mechanical durability | 300000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with JIS No 1 screwdriver Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Short-circuit protection | 4 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ <= 10exp(-6) at 17 V, 5 mA conforming to IEC 60947-5-4 |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 12 conforming to UL 50 E NEMA 3 conforming to UL 50 E |
| Standards | UL 508 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-1 JIS C8201-1 |
| Product certifications | CCC GOST |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 3 cm |
| Package 1 Weight | 20 g |
| Warranty | 18 months |
|---|
