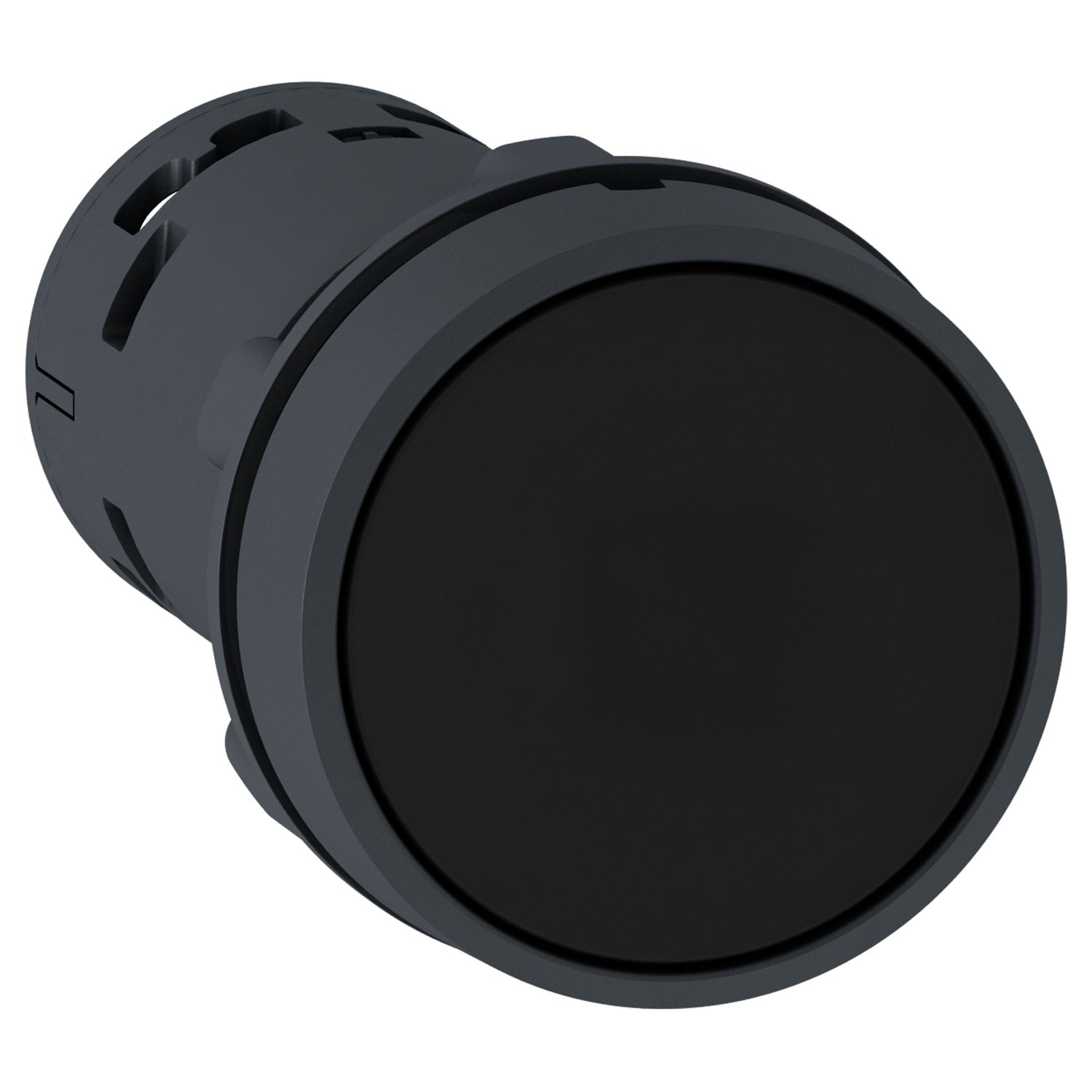

Schneider XB7NH25 | black flush pushbutton Ø22 – push push-to-release 1NO+1NC screw clamp terminals

1. Technical Specifications of  Schneider XB7NH25

• Type: Flush Pushbutton Switch
• Diameter: 22 mm
• Mechanism: Push-to-lock, push-to-release
• Material: Plastic
• Color: Black
• Contact Type: 1 NO + 1 NC (1 Normally Open + 1 Normally Closed)
• Terminals: Screw clamp terminals
• Protection Rating: IP65 (Dust and water resistant)
• Operating Temperature: -25°C to 70°C
• Mechanical Life: Up to 1,000,000 cycles
• Electrical Life: Up to 500,000 cycles

2. Key Features

A. Compact Design and Convenient Operation

• The switch has a flush design with a 22 mm diameter, which makes it suitable for installation in most industrial and commercial control panels.
• The push-to-lock, push-to-release mechanism allows for easy operation, enabling full control over the activation and deactivation of electrical circuits with a single press.

B. Dual Contact Points (1 NO + 1 NC)

• The switch provides dual contact points (1 normally open + 1 normally closed), which allows for controlling multiple electrical circuits simultaneously.
• This makes it ideal for applications where you need to control two separate devices, such as switching between two different machines or systems.

C. High Protection Against Dust and Water (IP65)

• With an IP65 rating, this switch is dust-tight and water-resistant, making it ideal for use in harsh industrial environments or outdoor settings exposed to dust and moisture.

D. Easy Wiring and Installation

• The switch features screw clamp terminals, ensuring secure and reliable connections for the wiring.
• Installation is straightforward and can be done using basic tools.

3. Benefits

A. Versatile Application

• With dual contact points, the Schneider XB7NH25 can be used in a wide variety of applications, such as controlling two circuits or devices at once.
• It’s an ideal choice for systems that require dual functionality, such as switching on two devices independently.

B. Reliable Performance

• Thanks to its long operational life, the switch is designed for high durability in both mechanical and electrical functions.
• It performs reliably in tough operating conditions, making it suitable for heavy-duty industrial environments.

C. Enhanced Safety

• The high IP65 protection rating ensures that the switch can safely operate in dusty or wet environments, providing added protection for both the switch and the overall system.
• The push-to-lock, push-to-release mechanism ensures a safe and intuitive way to control the system.
