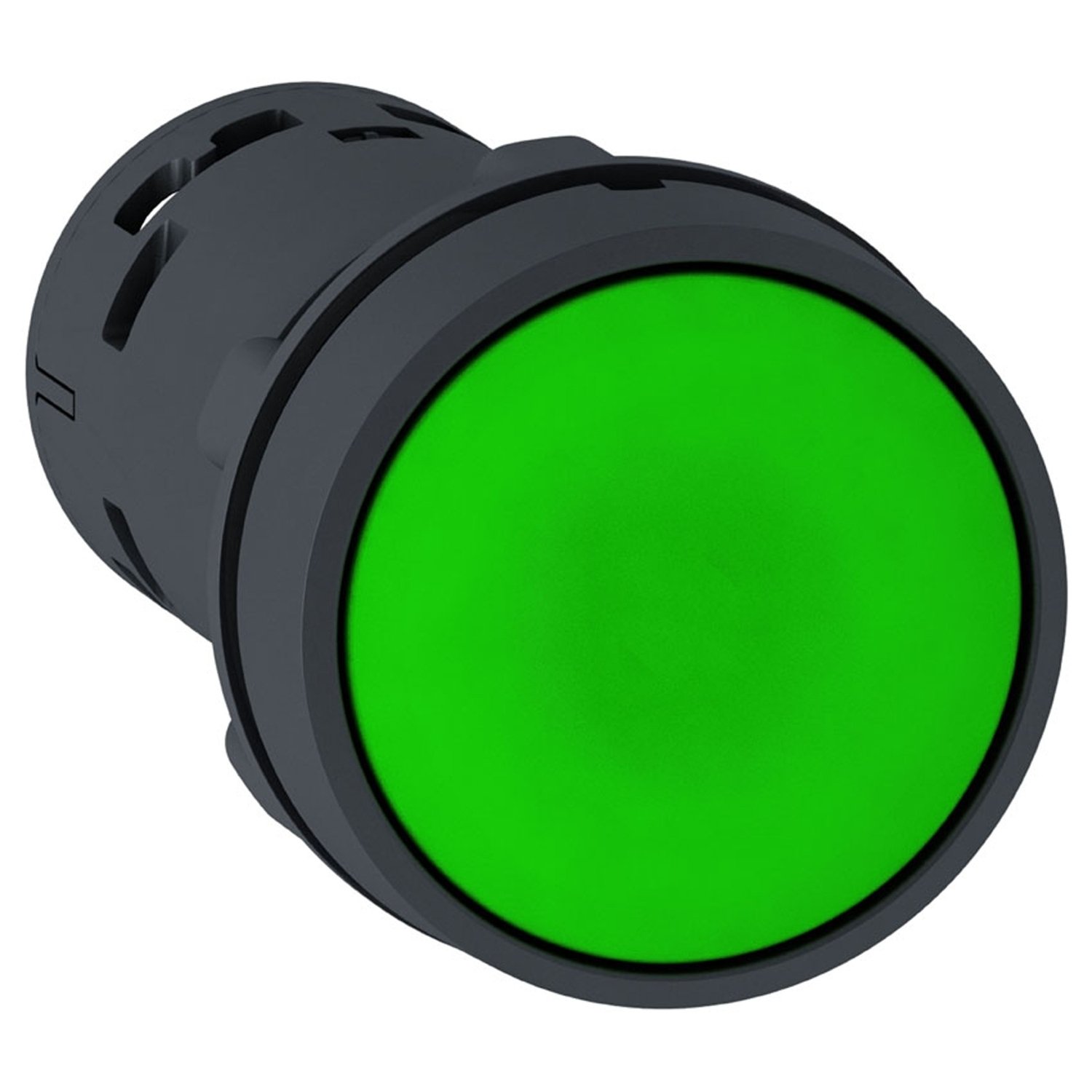

Schneider XB7NA31 | Monolithic push button, plastic, green, Ø22, spring return, unmarked, 1 NO
Original price was: EGP 3,112.00.EGP 1,805.00Current price is: EGP 1,805.00.
Description
Schneider XB7NA31 | Monolithic push button, plastic, green, Ø22, spring return, unmarked, 1 NO
Schneider XB7NA31 | Monolithic Push Button – Harmony XB7, Ø22 mm, Green, 1 NO, Spring Return
The Schneider XB7NA31 is a compact monolithic push button from the Harmony XB7 series. Designed for efficient and ergonomic control, this unit features a green button with a spring return mechanism and 1 normally open (NO) contact. It is ideal for simple start or activation commands in industrial and commercial control systems.
Key Features
-
Product Type: Monolithic Push Button
-
Series: Harmony XB7
-
Model: XB7NA31
-
Color: Green
-
Button Diameter: 22 mm
-
Mounting Type: Panel mount
-
Material: Plastic
-
Contact Configuration: 1 NO (Normally Open)
-
Operation: Momentary (spring return)
-
Marking: Unmarked button head
Technical Specifications
-
Mounting Hole Diameter: 22 mm standard
-
Electrical Contacts: Screw clamp terminals
-
Front Ring: Round, green flush actuator
-
Ingress Protection: Designed for standard industrial environments
-
Standards Compliance: Meets IEC and EN control device standards
Applications
-
Start/Run Commands for Machines
-
Lighting or Motor Control Panels
-
Conveyor Systems
-
Industrial Automation Panels
-
Electrical Switchboards
Advantages
-
Compact & Durable Design
-
Monolithic plastic body with built-in contact block
-
-
Simple Installation
-
Quick mounting into Ø22 mm panel holes
-
-
Clear Visual Identification
-
Green color easily identifies start or go functions
-
-
Reliable Contact Performance
-
1 NO contact ensures secure activation
-
-
Cost-Effective
-
Ideal for basic control functions in standard-duty applications
-
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB7 |
|---|---|
| Product or Component Type | Push-button |
| Device short name | XB7 |
| Mounting diameter | 0.87 in (22 mm) |
| Sale per indivisible quantity | 10 |
| IP degree of protection | IP20 IEC 60529 rear face) IP65 IEC 60529 front face) |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Green flush, unmarked |
| Contacts type and composition | 1 NO |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1 |
| device presentation | Monolithic product |
| CAD overall width | 1.14 in (29 mm) |
|---|---|
| CAD overall height | 1.14 in (29 mm) |
| CAD overall depth | 2.03 in (51.5 mm) |
| Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.05 lb(US) (0.021 kg) |
| Device mounting | Fixing hole 0.89 in (22.5 mm) 22.3 +0.4/0 IEC 60947-1 |
| Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.24 in (1…6 mm) >= 30 x 40 mm support panel) plastic 0.08…0.24 in (2…6 mm) |
| Fixing mode | Fixing nut beneath head 17.70…21.24 lbf.in (2…2.4 N.m) |
| contact operation | Slow-break |
| Positive opening | With (only NO) |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross JIS No 1 Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Short-circuit protection | 4 A cartridge fuse gG IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| [Ie] rated operational current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 0.6 A 120 V, AC-14, D300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4 |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | Class II IEC 61140 |
| NEMA degree of protection | NEMA 12 UL 50 E NEMA 3 UL 50 E |
| Standards | UL 508 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-1 IEC 60947-1 JIS C8201-1 |
| Product Certifications | GOST CCC |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22464-PUSHBUTTONS, XB7-22MM |
|---|---|
| Discount Schedule | CS2 |
| GTIN | 3606480470011 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.76 in (7.0 cm) |
| Package 1 Width | 3.74 in (9.5 cm) |
| Package 1 Length | 5.91 in (15.0 cm) |
| Package 1 Weight | 0.71 oz (20.0 g) |
| Unit Type of Package 2 | BAG |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.94 in (10.0 cm) |
| Package 2 Width | 2.76 in (7.0 cm) |
| Package 2 Length | 5.91 in (15.0 cm) |
| Package 2 Weight | 7.05 oz (200.0 g) |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 5.91 in (15.0 cm) |
| Package 3 Width | 5.91 in (15.0 cm) |
| Package 3 Length | 15.75 in (40.0 cm) |
| Package 3 Weight | 4.91 lb(US) (2.225 kg) |
| Warranty | 18 months |
|---|
