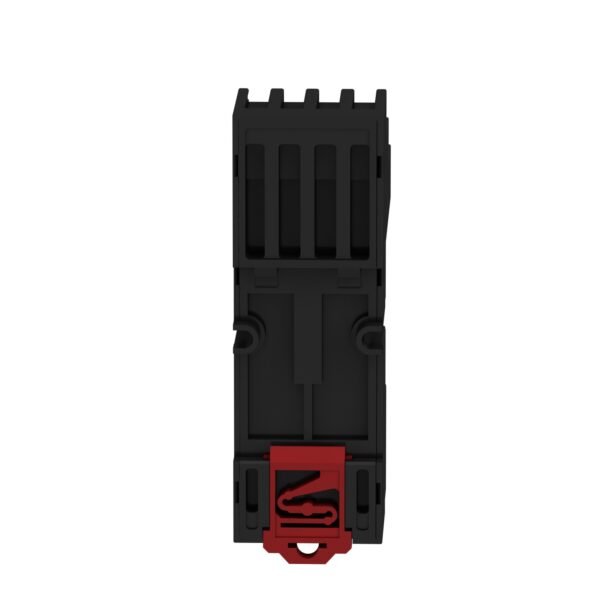

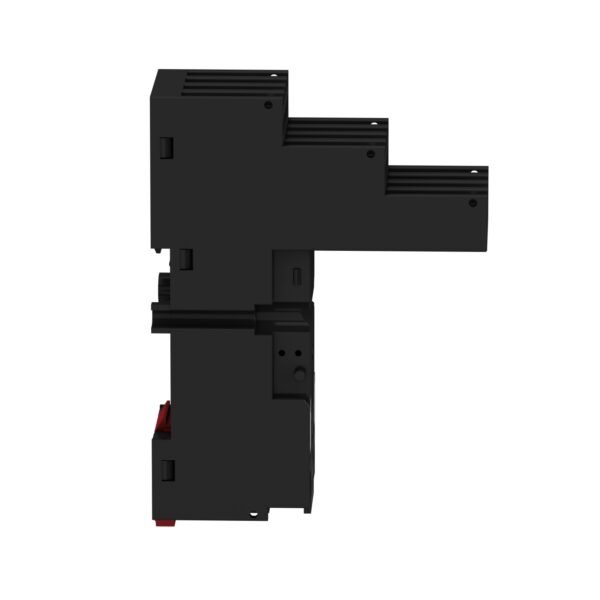

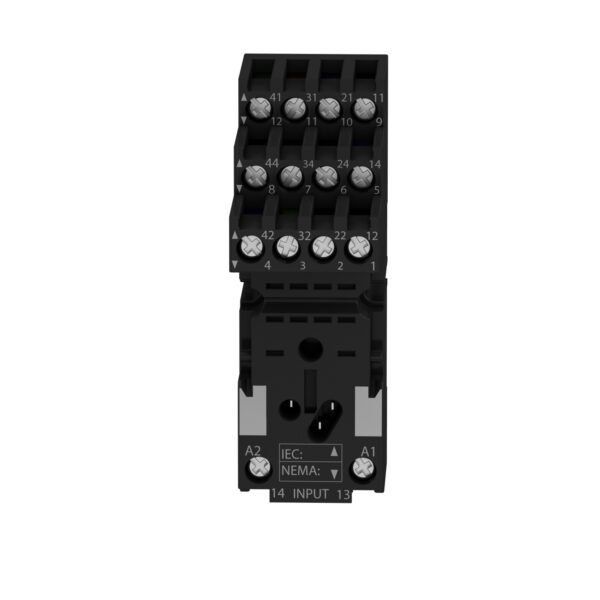

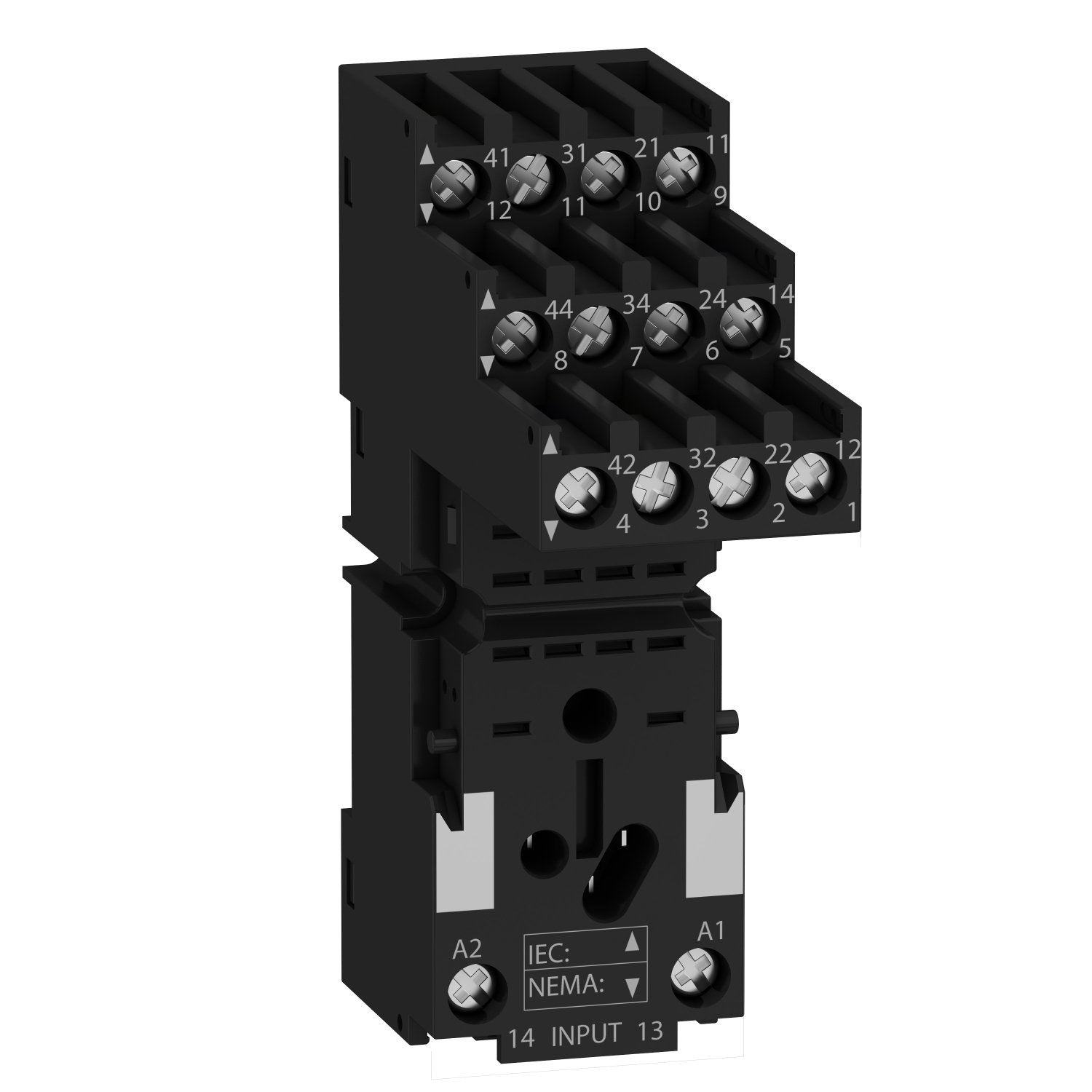

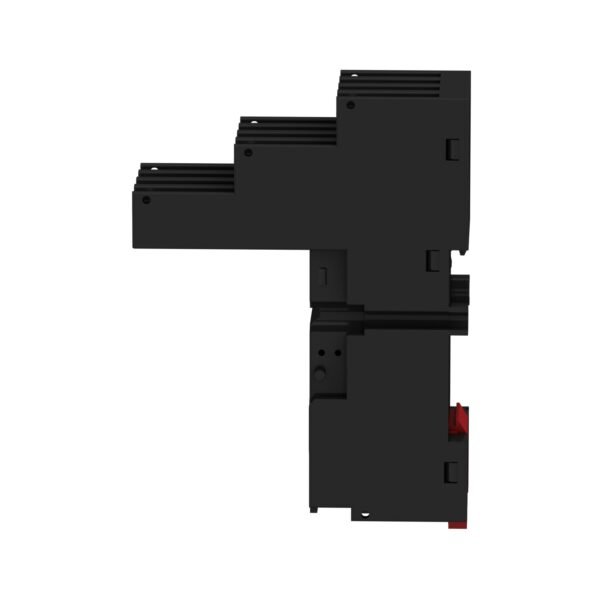

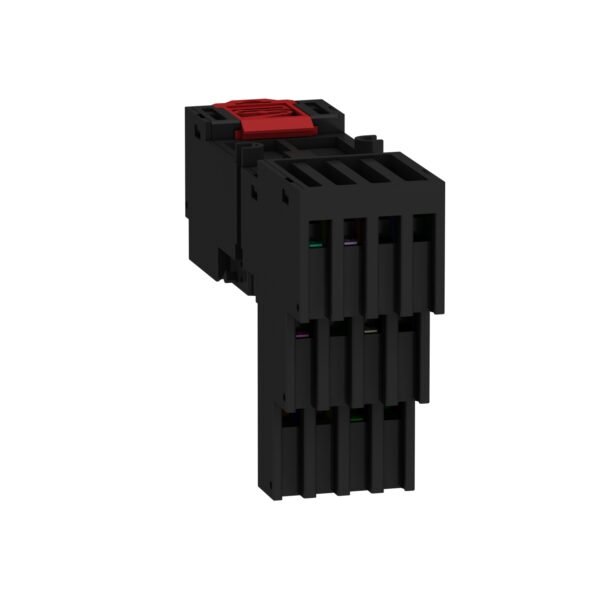

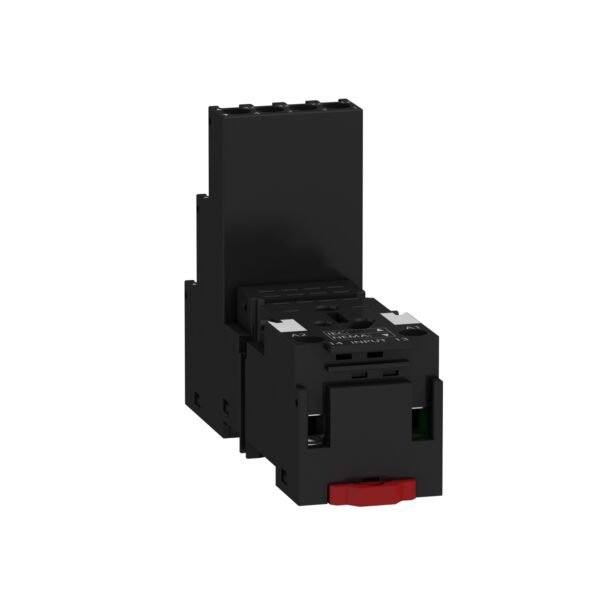

Schneider RXZE2S114M | Socket RXZ – separate contact – 10 A – < 250 V – connector – for relay RXM4..
Original price was: EGP 2,701.00.EGP 1,567.00Current price is: EGP 1,567.00.
Description
Schneider RXZE2S114M | Socket RXZ – separate contact – 10 A – < 250 V – connector – for relay RXM4..
Schneider RXZE2S114M | Socket RXZ – separate contact – 10 A – < 250 V – connector – for relay RXM4.. description”
Schneider Electric’s RXZE2S114M Socket RXZ with separate contact is a crucial component in electrical systems, ensuring reliable performance and safety. Let’s delve into its features, benefits, and applications.
Introduction to Schneider RXZE2S114M Socket RXZ
The Schneider RXZE2S114M Socket RXZ is designed to accommodate separate contacts, offering enhanced functionality and versatility in electrical applications. It serves as a reliable connection point for relays like the RXM4 series, facilitating seamless electrical operations.
Understanding Separate Contact and its Importance
Separate contacts in electrical sockets like the RXZE2S114M play a vital role in isolating circuits, preventing interference, and enabling precise control over electrical currents. This feature enhances safety, reduces downtime, and optimizes system performance.
Technical Specifications of Schneider RXZE2S114M
- Amperage Rating: 10 A
- Voltage Rating: < 250 V
- Connector Type: Standard connector compatible with relay RXM4
These specifications ensure compatibility with a wide range of electrical setups, making the RXZE2S114M socket a versatile choice for various applications.
Compatibility with Relay RXM4
The RXZE2S114M Socket RXZ is specifically designed to work seamlessly with Schneider Electric’s relay RXM4 series. This compatibility enhances reliability and simplifies installation, making it a preferred choice for professionals and enthusiasts alike.
Applications of Schneider RXZE2S114M
From industrial automation to residential circuits, the RXZE2S114M Socket RXZ finds its place in diverse applications. It is commonly used in control panels, HVAC systems, lighting controls, and more, showcasing its adaptability and performance.
Advantages of Using Separate Contact Sockets
- Enhanced Safety: Separate contacts reduce the risk of electrical faults and ensure better circuit isolation.
- Versatility: Compatible with various relays and electrical setups, offering flexibility in design and installation.
- Durability: Built with quality materials, the RXZE2S114M socket ensures long-term reliability and performance.
- Ease of Maintenance: Simple installation and maintenance procedures reduce downtime and operational hassles.
Installation Process of RXZE2S114M Socket
Installing the RXZE2S114M socket is straightforward for experienced electricians. It involves securely mounting the socket, wiring the separate contacts as per specifications, and testing the connection to ensure proper functionality.
Maintenance and Care Tips
To prolong the lifespan and efficiency of the RXZE2S114M Socket RXZ, regular inspection and cleaning are recommended. Ensure proper insulation, check for loose connections, and follow Schneider Electric’s guidelines for optimal performance.
Conclusion
Schneider RXZE2S114M Socket RXZ with separate contact is a reliable and versatile solution for electrical applications, offering safety, performance, and ease of installation. Its compatibility with relay RXM4 and robust design make it a preferred choice for various industries and projects.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Timer Relays |
|---|---|
| Product compatibility | Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact Plug-in relay REXL with 2 C/O contact Plug-in relay REXL with 4 C/O contact Plug-in relay 782H with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10 A |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ue] rated operational voltage | < 250 V conforming to IEC < 300 V conforming to UL |
|---|---|
| Connections - terminals | Screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Separate |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 27 mm |
| Net weight | 0.062 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | CSA Lloyd's UL |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.679 cm |
| Package 1 Width | 2.893 cm |
| Package 1 Length | 8.219 cm |
| Package 1 Weight | 62.2 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 6.6 cm |
| Package 2 Width | 11.4 cm |
| Package 2 Length | 13.7 cm |
| Package 2 Weight | 664.5 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 13.2 kg |
| Warranty | 18 months |
|---|
