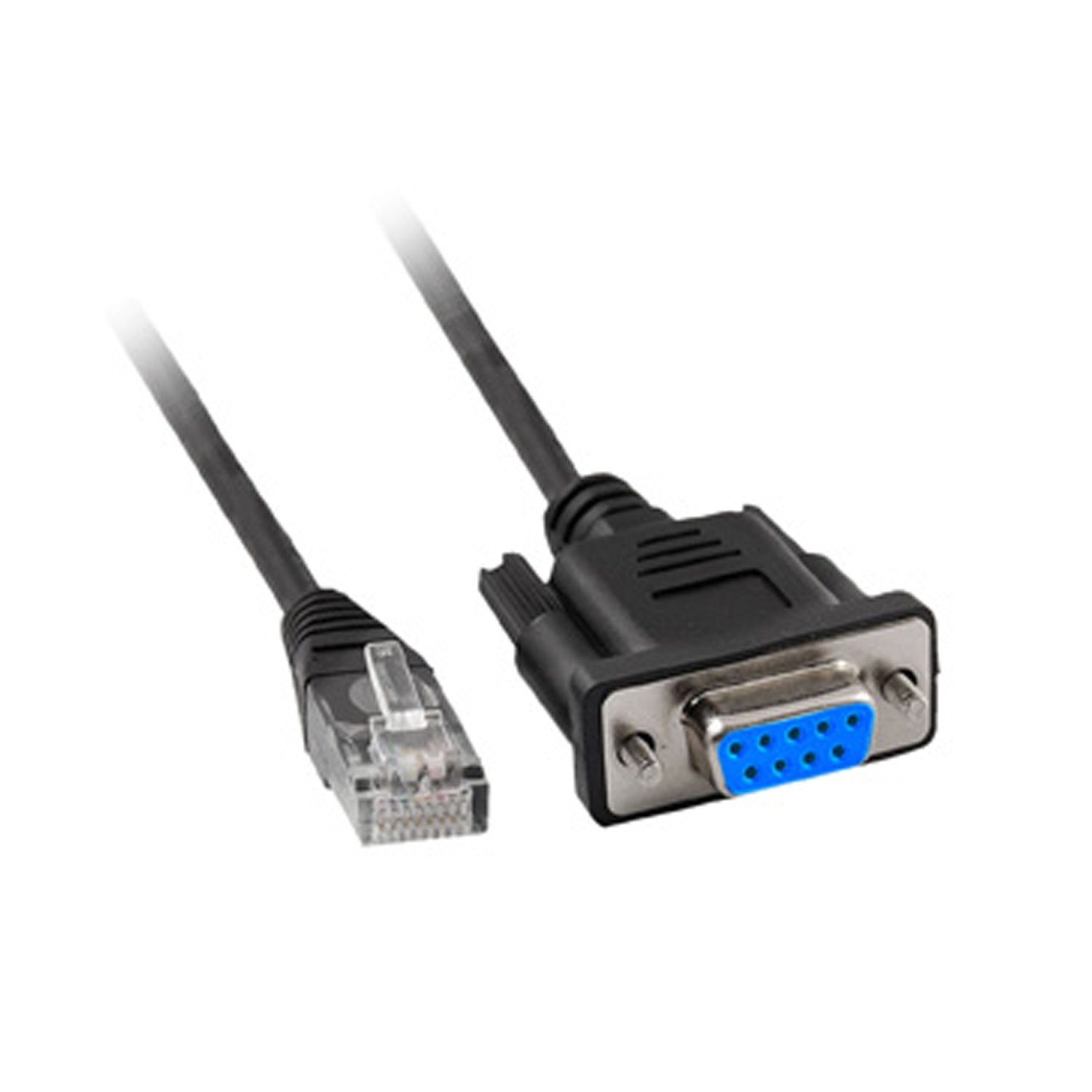

Schneider XBTZ9008 | Modbus serial link for XBT terminal – L = 2.5 m – 1 male RJ45
Schneider XBTZ9008 | Modbus serial link for XBT terminal – L = 2.5 m – 1 male RJ45
-
Optimized for XBT terminals ensuring stable Modbus communication
-
2.5-meter cable length supports flexible mounting and layout
-
Industrial RJ45 connector ensures quick, secure, and error-free connections
-
Reduces installation time with a pre-assembled, tested link
-
Enhances system reliability in Modbus-based communication networks
Description
Schneider XBTZ9008 | Modbus serial link for XBT terminal – L = 2.5 m – 1 male RJ45
The Schneider XBTZ9008 is a Modbus serial communication cable designed specifically for use with XBT terminals. This cable provides a reliable connection between a Magelis HMI terminal and other Modbus-compatible devices such as PLCs, industrial controllers, or drives.
With a 2.5-meter length and a male RJ45 connector, it offers plug-and-play functionality and simplifies communication setup in industrial environments where efficient and stable serial connections are critical.
Technical Specifications XBTZ9008
-
Product Type: Modbus serial link cable
-
Length: 2.5 meters
-
Connector Type: 1 x male RJ45
-
Cable Compatibility: Magelis XBT terminals (especially XBT-N/R ranges)
-
Protocol: Modbus RTU/ASCII (RS-485 or RS-232, depending on the terminal configuration)
-
Insulation: Industrial-grade protection against electrical noise
-
Application Standard: Compatible with IEC industrial communication standards
-
Operating Environment: Designed for harsh and demanding industrial use
Key Features XBTZ9008
-
Purpose-Built for Magelis HMIs: Ensures perfect fit and compatibility with Schneider XBT series terminals
-
Reliable Communication: Supports Modbus serial transmission for efficient data exchange
-
Plug-and-Play: Simple setup with ready-to-use RJ45 connector
-
Industrial-Grade Design: Withstands electrical interference and harsh installation conditions
-
Extended Reach: 2.5-meter length provides flexibility in panel or machine layouts
Typical Applications:
-
Connecting XBT HMI terminals to PLCs or drives over Modbus
-
Communication in machine automation systems
-
Factory and process control environments
-
Distributed control systems using serial Modbus networks
-
Integration of legacy equipment with modern operator panels
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XBT |
|---|---|
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Product or component type | Connecting cable |
| Accessory / separate part designation | Modbus serial link |
| Accessory / separate part destination | XBT terminal |
| Cable length | 2.5 m |
| Product compatibility | XBTGT2... XBTGK.... |
|---|---|
| Range compatibility | Altivar 61 TeSys U Altistart 48 Modicon M340 Lexium 05 Altivar 71 TeSys T Altivar 31 Preventa XPSMC |
| Electrical connection | 1 male connector RJ45 |
| Communication port protocol | Modbus |
| Physical interface | RS485 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 15.000 cm |
| Package 1 Weight | 121.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 8.320 kg |
| Warranty | 18 months |
|---|
